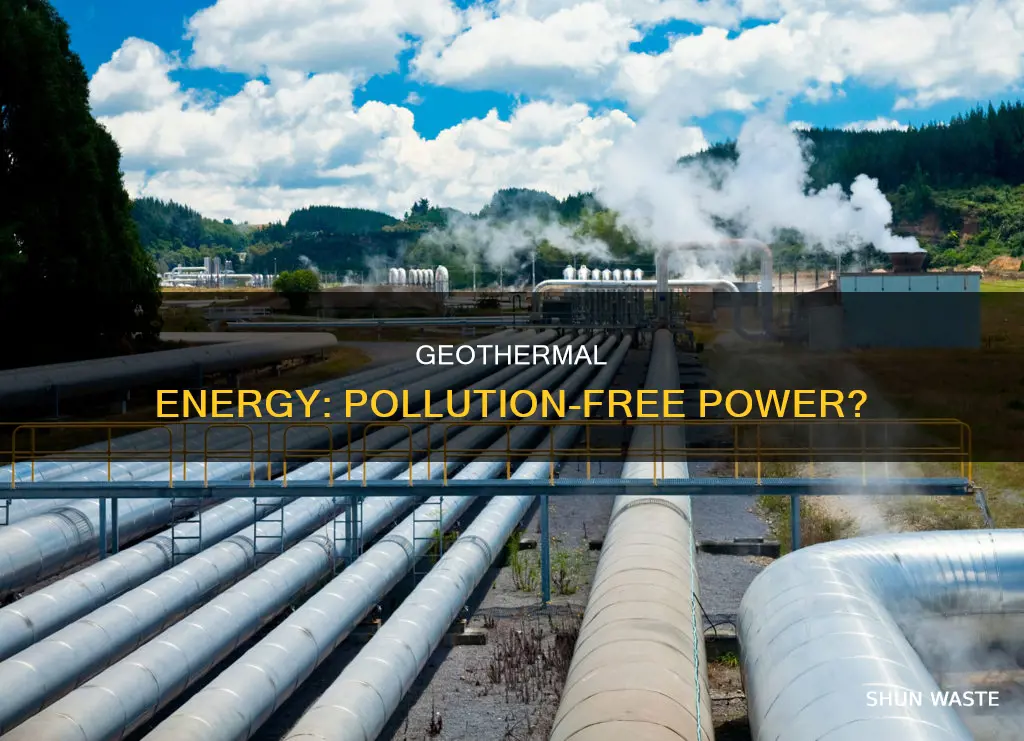

Geothermal Energy: Pollution-Free Power?

Geothermal energy is considered one of the cleanest forms of energy used for electricity generation today. However, it does contribute to some forms of pollution. The environmental effects of geothermal energy depend on how it is used or converted into useful energy. Direct-use applications and geothermal heat pumps have almost no negative effects on the environment, but geothermal power plants can cause air pollution, water contamination, and land subsidence. Geothermal power plants emit harmful gases, including hydrogen sulfide, carbon dioxide, ammonia, methane, and boron. Hydrogen sulfide is the most abundant gas released by geothermal power plants and can lead to acid rain, which has detrimental effects on forests, vegetation, wildlife, soils, and buildings. Carbon dioxide is the most commonly released greenhouse gas from geothermal power plants, contributing to climate change. Methane emissions from geothermal plants are minimal compared to coal and natural gas power plants. Water quality and consumption are also impacted by geothermal energy production, as brine and other compounds can contaminate water sources, and large amounts of water are needed for cooling and replenishing reservoirs. Land subsidence can occur due to the removal of water from geothermal reservoirs, and land conversion is another environmental impact of geothermal energy projects. Noise pollution is another potential issue associated with geothermal energy, although it is less of a concern than wind turbines.

Geothermal energy can cause air pollution and local air quality issues

Geothermal energy is considered one of the cleanest forms of energy used for electricity generation today. However, it can cause air pollution and local air quality issues under certain conditions. The environmental effects of geothermal energy depend on how it is used or converted into useful energy. Direct-use applications and geothermal heat pumps have negligible negative impacts on the environment. On the other hand, geothermal power plants may release small amounts of pollutants, and their impact on air quality depends on the type of cooling technology and conversion technology used.

Open-loop geothermal systems emit several air pollutants, including hydrogen sulfide, carbon dioxide, ammonia, methane, and boron. Hydrogen sulfide, with its distinctive "rotten egg" smell, is the most common emission. It poses health risks and can cause problems in electrical and electronic systems. Once in the atmosphere, hydrogen sulfide transforms into sulfur dioxide (SO2), contributing to the formation of acidic particulates that can be absorbed by the bloodstream, potentially leading to heart and lung disease. Sulfur dioxide is also a significant contributor to acid rain, which has detrimental effects on crops, forests, soils, and water bodies.

Closed-loop geothermal systems minimize air emissions by containing gases and injecting them back into the ground. However, there are still some emissions associated with plant construction and surrounding infrastructure. Additionally, geothermal plants may produce small amounts of mercury emissions, which must be controlled with mercury filter technology. The sludge generated by scrubbers used to reduce air emissions contains toxic captured materials, requiring disposal at hazardous waste sites.

The development and application of geothermal energy can also result in severe indoor air quality problems in buildings constructed on geothermal grounds. Carbon dioxide, hydrogen sulfide, radon, and other gases can seep into indoor air through perforations in the structure, posing health hazards to occupants. Prolonged exposure to high levels of hydrogen sulfide can even lead to coma and death from poisoning.

To mitigate these air pollution issues, geothermal power plants can install Hydrogen Sulfide Abatement Systems, which effectively remove up to 99.9% of hydrogen sulfide that would otherwise be released into the atmosphere. Most geothermal power plants also utilize scrubbers to minimize hydrogen sulfide emissions naturally present in geothermal reservoirs.

Geothermal plants emit harmful gases, including hydrogen sulfide, carbon dioxide, ammonia, methane, and boron

Geothermal energy is considered one of the cleanest forms of energy used for electricity generation today. However, it does contribute to some forms of pollution, including the emission of harmful gases.

Geothermal plants emit small amounts of sulfur dioxide, carbon dioxide, methane, and particulate matter. These emissions are much lower than those of fossil fuel power plants, with geothermal plants emitting 97% less sulfur compounds and about 99% less carbon dioxide. Carbon dioxide is the most common greenhouse gas emitted from geothermal power plants, and the carbon dioxide emissions from these plants can be diminished by the common practice of injecting geothermal fluids back into reservoirs.

One of the most concerning pollutants emitted by geothermal plants is hydrogen sulfide, which is characterized by a sulfurous odor often associated with natural hot springs. Most geothermal power plants use scrubbers to remove hydrogen sulfide from the steam and water before they are injected back into the earth, and some plants also install Hydrogen Sulfide Abatement Systems, which can remove up to 99.9% of the gas before it is released into the atmosphere.

In addition to the gases mentioned above, geothermal plants also emit ammonia, methane, and boron. These emissions are typically minimal and natural, and they are several orders of magnitude smaller than emissions from coal or natural gas plants.

Water quality and consumption are impacted by geothermal energy production

Geothermal energy production can impact water quality and consumption in several ways. Firstly, geothermal plants require water for cooling and re-injection into the reservoir. The amount of water needed depends on the plant's size and technology used, with some plants requiring between 1,700 and 4,000 gallons of water per megawatt-hour. While most plants can use geothermal fluid or freshwater for cooling, the use of geothermal fluids can reduce the overall water impact.

To maintain water levels in the reservoir, additional sources of water may be needed as some water is lost as steam during the process. This can result in the use of non-potable treated wastewater, as seen at the Geysers geothermal site in California. However, the use of external water sources can potentially impact water quality, especially if they contain dissolved compounds such as silica, sulfates, and carbonates, which could degrade water quality if mixing occurs.

Another factor affecting water quality is the emission of harmful gases by geothermal systems. In open-loop systems, gases such as hydrogen sulfide, carbon dioxide, ammonia, methane, and boron are released into the atmosphere. Once released, hydrogen sulfide transforms into sulfur dioxide, contributing to the formation of acidic particulates. These acidic compounds can mix with water, potentially causing acid rain, which has detrimental effects on forests, vegetation, wildlife, soils, and historic buildings or monuments.

Geothermal plants also produce small amounts of mercury emissions, which must be mitigated with mercury filter technology. While filtration systems help capture these harmful substances, they generate a watery sludge composed of captured materials, including heavy metals and toxic chemicals. The disposal of this toxic sludge in hazardous waste sites is necessary but can further impact water quality if not properly managed.

Overall, while geothermal energy production may impact water quality and consumption, the specific effects depend on the technology and cooling systems used, the use of external water sources, and the effective management of emissions and waste products.

Land conversion and subsidence are key impacts of geothermal energy production

Geothermal energy is considered one of the cleanest forms of energy used for electricity generation today. Compared to other energy sources, it produces very little or zero greenhouse gas emissions. However, the environmental effects of geothermal energy depend on how it is used or converted to useful energy. Geothermal power plants, for instance, may release small amounts of sulfur dioxide and carbon dioxide.

One of the key impacts of geothermal energy production is land conversion. Geothermal technology typically involves drilling wells, water movement through piping systems, and cooling, all of which can impact the land. The amount of land required by a geothermal plant varies depending on several factors, including the properties of the resource reservoir, power capacity, type of energy conversion system, and cooling system. While geothermal power plants require less land compared to coal and nuclear power plants, the drilling of wells and construction of infrastructure can still lead to vegetation clearing, soil impacts, and wildlife disturbance.

Land subsidence is another significant impact of geothermal energy production. This phenomenon occurs when the land surface sinks due to the removal of large quantities of water from geothermal reservoirs. To mitigate this risk, most geothermal facilities re-inject wastewater back into the reservoirs after capturing its heat. However, not all water removed from the reservoir is re-injected, as some is lost as steam, requiring additional water sources to maintain water levels. The process of extracting and re-injecting water can also contribute to the risk of minor earthquakes.

Overall, while geothermal energy has minimal environmental impacts compared to other energy sources, land conversion and subsidence are key considerations in its production. Project developers must carefully plan and address these potential impacts, especially when operating in remote and ecologically sensitive areas.

Geothermal energy can cause noise pollution

Geothermal energy is one of the cleanest forms of energy used for electricity generation today. Direct-use applications and geothermal heat pumps have almost no negative environmental effects. However, the environmental impact of geothermal energy depends on how it is used and converted. While geothermal power plants do not burn fuel to generate electricity, they may still release small amounts of sulfur dioxide, carbon dioxide, methane, nitrous oxides, and hydrogen sulfide.

For example, a study on the effects of geothermal energy production on greater sage-grouse populations in Nevada, USA, found that lek absence rates (indicating local extirpation) increased by approximately 730% within 2 kilometres of geothermal sites. The study also revealed a decrease in nest survival and adult survival rates, which were associated with the reduced topographic impedance surface (TIS). TIS is a measure of sound and light dispersion from geothermal infrastructure, indicating that noise and light pollution from these sites can have detrimental effects on wildlife.

Noise pollution from geothermal energy infrastructure can also impact human communities located nearby. The constant hum or buzz of power plants and extraction equipment can be a source of annoyance and disturbance for residents, potentially leading to complaints and conflicts.

To mitigate the impact of noise pollution, geothermal energy developers can implement noise reduction measures. This includes employing sound-absorbing materials, installing noise barriers or enclosures around noisy equipment, and carefully siting new developments to minimise their impact on nearby communities and sensitive wildlife habitats.
