A wastegate is a crucial component in turbocharged engines, designed to regulate the boost pressure and protect the engine from potential damage. It operates by diverting excess exhaust gases away from the turbocharger, thereby controlling the speed at which the turbine spins and, consequently, the amount of air being compressed into the engine. Without a wastegate, the turbocharger could generate excessive boost, leading to increased stress on engine components and potential overheating. Typically, wastegates are either internal, integrated into the turbocharger housing, or external, mounted separately in the exhaust system. Understanding the function and importance of a wastegate is essential for anyone looking to optimize their vehicle's performance or troubleshoot turbo-related issues.
| Characteristics | Values |
|---|---|
| Definition | A wastegate is a valve in a turbocharged engine that bypasses excess exhaust gases around the turbine. |
| Primary Function | Regulates turbocharger boost pressure to prevent overboost and protect the engine. |
| Types | External wastegate, internal wastegate, pneumatic wastegate, electronic wastegate. |
| Location | Mounted on or near the turbocharger, connected to the exhaust manifold. |
| Operation | Opens to divert exhaust gases away from the turbine when boost pressure reaches a set limit. |
| Control Mechanism | Actuated by a spring, pneumatic pressure, or electronic solenoid. |
| Boost Pressure Control | Maintains consistent boost levels by adjusting exhaust flow to the turbine. |
| Engine Protection | Prevents excessive turbo speed and potential engine damage from overboost. |
| Performance Impact | Allows for precise tuning of turbo response and power delivery. |
| Common Materials | Stainless steel, aluminum, or heat-resistant alloys for durability. |
| Maintenance | Requires periodic inspection for leaks, wear, or sticking. |
| Upgradability | Can be upgraded for higher boost applications or improved responsiveness. |
| Compatibility | Used in turbocharged gasoline and diesel engines. |
Explore related products
What You'll Learn
- Wastegate Function: Controls turbocharger boost pressure to prevent engine damage from excessive air intake
- Types of Wastegates: Internal (built into turbo) and external (separate unit) wastegate designs
- Wastegate Actuator: Spring-loaded or electronic mechanism that opens/closes the wastegate valve
- Benefits of Wastegates: Ensures safe turbo operation, improves engine longevity, and optimizes performance
- Wastegate Maintenance: Regular inspection for leaks, wear, and proper calibration to maintain efficiency
Wastegate Function: Controls turbocharger boost pressure to prevent engine damage from excessive air intake
Turbocharged engines rely on forced induction to increase power, but this process introduces a critical risk: excessive boost pressure. Left unchecked, this pressure can lead to engine damage from detonation, overheating, or mechanical stress. The wastegate acts as a safety valve, diverting excess exhaust gases away from the turbocharger turbine when boost pressure reaches a predetermined threshold. This mechanism ensures the turbo spins at an optimal speed, maintaining safe and consistent air intake levels for the engine.
Understanding Boost Pressure and Its Dangers
Boost pressure, measured in psi (pounds per square inch), directly correlates to the amount of air forced into the engine. While higher boost increases power, it also elevates combustion temperatures and cylinder pressures. Exceeding the engine's design limits can cause catastrophic failures, such as blown head gaskets, cracked pistons, or damaged bearings. For instance, a stock engine might safely handle 6-8 psi of boost, while a heavily modified engine could be tuned for 20+ psi, requiring a robust wastegate system to manage the increased stress.
Wastegate Types and Operation
Wastegates come in two primary designs: external and internal. External wastegates are separate units mounted on the exhaust manifold or downpipe, offering precise control and adjustability. They are favored in high-performance applications due to their ability to handle extreme boost levels. Internal wastegates, integrated into the turbocharger housing, are more compact and cost-effective but provide less fine-tuning capability. Both types use a pressure-actuated valve that opens progressively as boost pressure rises, bypassing exhaust gases to regulate turbo speed.
Tuning and Maintenance Tips
Proper wastegate calibration is essential for maximizing performance while safeguarding the engine. Aftermarket boost controllers or electronic wastegate actuators allow for precise adjustments, enabling drivers to tailor boost levels to specific driving conditions or fuel quality. Regular inspection of the wastegate diaphragm, springs, and actuator arm is crucial, as wear or damage can lead to boost creep or inconsistent performance. For example, a weakened spring might cause the wastegate to open prematurely, reducing power output, while a stuck valve could result in dangerous overboost.
Practical Applications and Upgrades
In daily driving, a well-functioning wastegate ensures smooth power delivery and longevity. However, enthusiasts seeking higher performance often upgrade to larger or more responsive wastegate systems. For instance, a driver planning to increase boost from 10 psi to 18 psi might install a 44mm external wastegate with a stiffer spring and electronic control, paired with a high-flow intercooler to manage heat. Such upgrades require careful tuning and monitoring, as even small changes in wastegate settings can significantly impact engine behavior and reliability.
Sustainable Solutions: Recycling Oil and Gas Wastewater for a Greener Future
You may want to see also
Explore related products
Types of Wastegates: Internal (built into turbo) and external (separate unit) wastegate designs
Wastegates are essential components in turbocharged engines, regulating boost pressure to prevent damage and optimize performance. They come in two primary designs: internal and external. Each type has distinct characteristics, advantages, and applications, making them suitable for different driving needs and engine setups.
Internal wastegates are integrated directly into the turbocharger housing, offering a compact and streamlined solution. This design is common in factory-installed turbo systems due to its space efficiency and cost-effectiveness. The internal wastegate diverts excess exhaust gases away from the turbine wheel, controlling boost pressure without the need for additional components. However, this integration limits adjustability, as the wastegate’s actuation pressure is often fixed or requires specific tools for modification. For daily drivers or vehicles with mild performance upgrades, internal wastegates provide reliable performance with minimal maintenance. A practical tip: when upgrading a turbo with an internal wastegate, ensure the new unit’s actuation pressure matches your desired boost levels to avoid overstressing the engine.
External wastegates, on the other hand, are standalone units mounted separately from the turbocharger, typically in the exhaust manifold or downpipe. This design offers superior control and adjustability, making it the preferred choice for high-performance and racing applications. External wastegates allow for precise tuning of boost pressure by adjusting the spring preload or using electronic actuators. They also handle higher exhaust temperatures and pressures more effectively, reducing the risk of component failure under extreme conditions. However, their installation is more complex and requires additional plumbing, which can increase costs and space requirements. For enthusiasts aiming to maximize performance, an external wastegate paired with a larger turbo can deliver significant power gains, but careful tuning is essential to avoid engine damage.
Comparing the two designs, internal wastegates excel in simplicity and cost, while external wastegates offer flexibility and durability. For instance, a stock turbo with an internal wastegate might limit a Subaru WRX to 16 psi of boost, whereas an external wastegate setup could safely push it to 22 psi or more with proper tuning. The choice depends on your goals: internal wastegates are ideal for balanced, everyday performance, while external wastegates cater to those seeking aggressive power upgrades.
In practice, selecting the right wastegate involves considering your vehicle’s intended use, engine specifications, and budget. If you’re building a track car, an external wastegate’s adjustability and robustness are invaluable. For a daily driver with modest modifications, an internal wastegate will likely suffice. Always consult a professional tuner when upgrading to ensure compatibility and safety, as improper wastegate selection or installation can lead to turbo failure or engine damage. Understanding these differences empowers you to make informed decisions, optimizing your turbocharged system for both reliability and performance.
Step-by-Step Guide to Replacing Your Bizhub 552 Waste Toner Box
You may want to see also
Explore related products

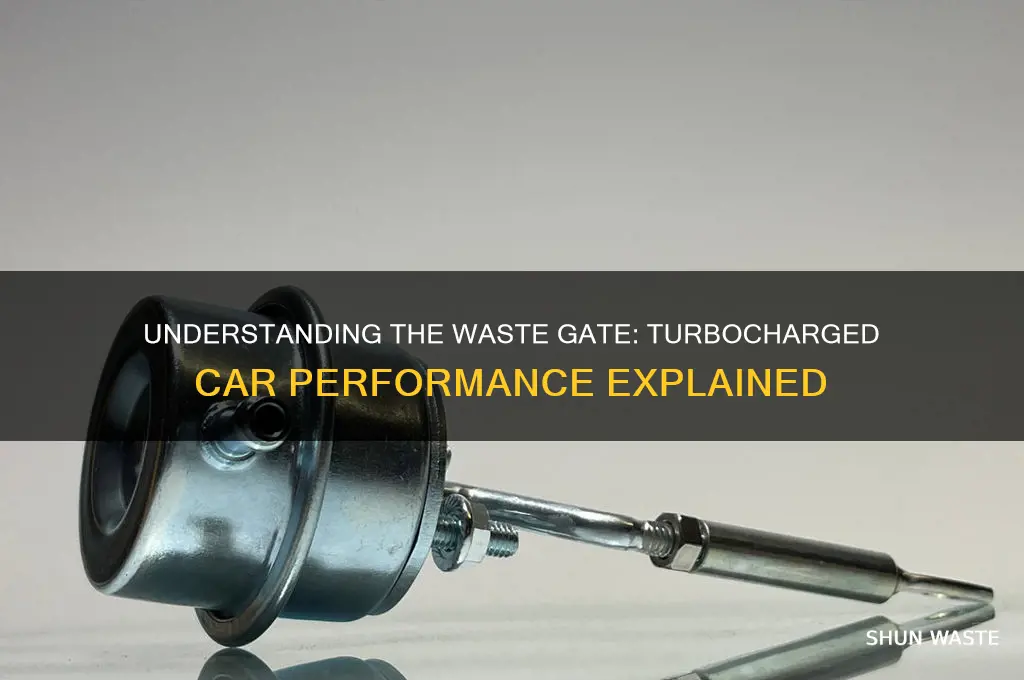

Wastegate Actuator: Spring-loaded or electronic mechanism that opens/closes the wastegate valve
Turbocharged engines rely on precise control of exhaust gas flow to optimize performance. At the heart of this control is the wastegate actuator, a critical component that determines how much exhaust gas bypasses the turbine. This mechanism comes in two primary forms: spring-loaded and electronic. Each type has distinct characteristics, advantages, and applications, making the choice between them a key consideration for engine tuning and reliability.
Spring-loaded wastegate actuators operate on a simple yet effective principle: a pre-loaded spring exerts force on the wastegate valve, keeping it closed until exhaust pressure reaches a predetermined threshold. This threshold is typically set by adjusting the spring’s preload, measured in psi (pounds per square inch). For example, a spring rated at 7 psi will allow the wastegate to open when exhaust pressure exceeds this value, diverting excess gas and preventing the turbocharger from spinning too fast. This mechanical system is favored for its durability, cost-effectiveness, and ease of installation, making it a popular choice in aftermarket turbo kits and racing applications. However, its fixed pressure setting limits flexibility, as adjustments require physical changes to the spring or additional components like boost controllers.
In contrast, electronic wastegate actuators offer dynamic control through a motorized or pneumatic system managed by the engine’s electronic control unit (ECU). These actuators can adjust wastegate position in real time based on sensor data, such as manifold pressure, engine speed, and throttle position. This allows for precise boost control across the entire RPM range, enhancing both performance and drivability. For instance, an electronic actuator can maintain a lower boost pressure at low RPMs for better throttle response, then increase it at higher RPMs for maximum power. While more expensive and complex than spring-loaded systems, electronic actuators are ideal for modern turbocharged vehicles and applications requiring fine-tuned performance, such as in high-performance street cars or professional motorsports.
Choosing between spring-loaded and electronic wastegate actuators depends on the intended use and desired level of control. For budget-conscious enthusiasts or racers seeking simplicity and reliability, a spring-loaded actuator paired with an external boost controller can provide adequate performance. On the other hand, those prioritizing precision, adaptability, and seamless integration with modern engine management systems will find electronic actuators to be the superior choice. Regardless of the type, proper calibration and maintenance are essential to ensure the wastegate operates within safe parameters, preventing overboost or turbocharger damage.
In practice, upgrading or modifying a wastegate actuator requires careful consideration of the engine’s specifications and performance goals. For example, a spring-loaded actuator might be upgraded to a stiffer spring (e.g., from 7 psi to 10 psi) to handle increased boost levels in a modified engine. Conversely, an electronic actuator could be programmed via the ECU to deliver a custom boost curve tailored to specific driving conditions. Whether spring-loaded or electronic, the wastegate actuator remains a cornerstone of turbocharger efficiency, bridging the gap between raw power and controlled performance.
How the Digestive System Manages Waste and Blood Filtration
You may want to see also
Explore related products
Benefits of Wastegates: Ensures safe turbo operation, improves engine longevity, and optimizes performance
Turbocharged engines rely on wastegates to manage the delicate balance between power and safety. Without a wastegate, the turbocharger could spin uncontrollably, leading to excessive boost pressure that damages engine components. A wastegate acts as a pressure relief valve, diverting exhaust gases away from the turbo when boost levels reach a predetermined threshold. This simple yet critical mechanism ensures the turbo operates within safe limits, preventing overboost and potential engine failure. For instance, in high-performance vehicles like the Subaru WRX or Ford EcoBoost models, wastegates are calibrated to activate at specific PSI levels, typically between 14 and 21 PSI, depending on the engine’s design and tuning.
Engine longevity is directly tied to how well stress is managed, particularly in turbocharged systems. By regulating boost pressure, wastegates reduce the strain on internal engine components such as pistons, rods, and crankshafts. Over time, unchecked turbo boost can cause premature wear, overheating, or even catastrophic failure. For example, a wastegate in a diesel truck might limit boost to 30 PSI to protect the engine’s durability, while a race car’s wastegate could be set higher, around 40 PSI, with additional cooling systems in place. Proper wastegate function ensures the engine operates within its designed parameters, extending its lifespan by years, especially in vehicles driven aggressively or under heavy loads.
Optimizing performance isn’t just about adding power—it’s about delivering it reliably and efficiently. Wastegates play a pivotal role in this by maintaining consistent boost levels, which improves throttle response and power delivery across the RPM range. In turbocharged applications, such as the Audi RS3 or BMW M3, wastegates are often electronically controlled for precision. This allows the engine management system to adjust boost pressure in real-time, ensuring peak performance without sacrificing drivability. For enthusiasts tuning their vehicles, upgrading to an external wastegate can provide finer control over boost curves, enabling safer and more predictable power increases.
Practical tips for maximizing wastegate benefits include regular maintenance and proper tuning. Inspect the wastegate actuator and diaphragm for wear or leaks, as these components degrade over time, especially in high-heat environments. When modifying a turbocharged engine, always consult a professional tuner to ensure the wastegate is set correctly for the desired boost level. For daily drivers, stock wastegates are typically sufficient, but performance enthusiasts should consider aftermarket options with larger ports for improved flow and heat resistance. Remember, a well-maintained wastegate isn’t just a safety feature—it’s a key to unlocking your engine’s full potential while safeguarding its future.
Muscle Wasting Timeline: Understanding the Onset and Prevention Strategies
You may want to see also
Explore related products
Wastegate Maintenance: Regular inspection for leaks, wear, and proper calibration to maintain efficiency
A wastegate is a critical component in turbocharged engines, regulating boost pressure to prevent overboost and potential engine damage. While it operates behind the scenes, its maintenance is paramount for sustained performance and efficiency. Regular inspection is the cornerstone of wastegate care, ensuring it functions optimally under the extreme conditions it faces.
Inspection Protocol: Leaks and Wear
Begin by visually inspecting the wastegate for signs of exhaust leaks, which manifest as black soot around the actuator or valve housing. Even minor leaks compromise boost control and efficiency. Next, examine the wastegate’s diaphragm and rod for wear or corrosion. A cracked diaphragm or seized rod disrupts calibration, leading to either excessive boost or underperformance. For turbocharged vehicles driven aggressively or in high-temperature environments, inspect these components every 10,000 miles or annually, whichever comes first.
Calibration Check: Precision Matters
Proper wastegate calibration ensures the actuator opens at the correct pressure, balancing power delivery and engine safety. Use a boost leak tester to verify the system holds pressure, and a vacuum pump to test the actuator’s response. If the wastegate opens prematurely or resists movement, recalibration or replacement may be necessary. For DIY enthusiasts, aftermarket boost controllers offer fine-tuning capabilities, but professional tuning is recommended to avoid overstress on engine components.
Practical Tips for Longevity
To extend wastegate life, avoid prolonged high-boost conditions and allow the engine to cool post-drive. Lubricate the wastegate’s moving parts with high-temperature grease annually, especially in dusty or humid climates. For older vehicles, consider upgrading to a stainless steel wastegate, which resists corrosion better than cast iron variants. Lastly, monitor boost levels with a gauge to catch anomalies early, preventing costly repairs down the line.
The Takeaway: Proactive Care Pays Off
Neglecting wastegate maintenance leads to reduced fuel efficiency, power loss, and potential turbocharger failure. By integrating regular inspections, leak checks, and calibration into your maintenance routine, you safeguard both performance and longevity. Think of the wastegate as the turbo’s gatekeeper—its health directly influences your driving experience. Invest time in its care, and it will reward you with consistent, reliable power.
Calculating Energy Loss: Understanding Friction's Impact on Efficiency
You may want to see also
Frequently asked questions
A wastegate is a component in turbocharged engines that regulates boost pressure by bypassing excess exhaust gases away from the turbine, preventing overboost and protecting the engine.
A wastegate operates by opening a valve to divert exhaust gases away from the turbocharger's turbine when boost pressure reaches a predetermined limit, controlled by a spring or electronic actuator.
There are two main types: internal wastegates (integrated into the turbo housing) and external wastegates (mounted separately), with external wastegates offering more precise control and adjustability.
A failing wastegate can cause overboost, leading to engine damage, or underboost, resulting in reduced power. Symptoms include excessive smoke, unusual noises, or erratic boost levels.
Yes, wastegates can be upgraded for better performance, especially in high-power applications. Upgrades include larger external wastegates, adjustable springs, or electronic control systems for precise boost management.
