The first stage of wastewater treatment is known as primary treatment, a crucial step designed to remove large solids and debris from the incoming sewage. This process typically involves screening, where physical barriers capture items like plastics, rags, and sticks, followed by sedimentation in large tanks called primary clarifiers. Here, gravity allows heavier solids (sludge) to settle at the bottom, while lighter materials like oils and grease float to the surface for skimming. Although primary treatment significantly reduces the volume of suspended solids, it does not address dissolved pollutants or pathogens, making it just the initial phase in a multi-stage treatment process.
| Characteristics | Values |
|---|---|
| Stage Name | Primary Treatment |
| Primary Objective | Removal of large solids, debris, and suspended particles |
| Key Processes | Screening, Grit Removal, Sedimentation (Primary Clarification) |
| Screening | Removes large objects like plastics, rags, and sticks using bar screens |
| Grit Removal | Eliminates heavy inorganic materials like sand and gravel |
| Sedimentation | Allows suspended solids to settle at the bottom as primary sludge |
| Typical Removal Efficiency | 50-60% of suspended solids, 30-40% of BOD (Biochemical Oxygen Demand) |
| Duration | Typically takes 1-3 hours |
| By-Products | Primary sludge (requires further treatment or disposal) |
| Energy Consumption | Relatively low compared to secondary and tertiary treatments |
| Common Infrastructure | Bar screens, grit chambers, primary clarifiers |
| Applicability | Used in almost all wastewater treatment plants |
| Follow-Up Stage | Secondary Treatment (biological processes) |
Explore related products
What You'll Learn
- Screening and Grit Removal: Removes large debris and grit to protect equipment from damage
- Primary Sedimentation: Allows solids to settle, reducing suspended particles through gravity separation
- Flow Equalization: Balances wastewater flow rates to ensure consistent treatment efficiency
- pH Adjustment: Corrects acidity or alkalinity to optimize subsequent treatment processes
- Oil and Grease Removal: Separates floating oils and grease using skimmers or gravity
Screening and Grit Removal: Removes large debris and grit to protect equipment from damage
The first line of defense in wastewater treatment is a rigorous process designed to safeguard the intricate machinery that follows. Screening and grit removal serve as the initial barrier, capturing large debris and abrasive particles before they can wreak havoc on pumps, pipes, and other equipment. This critical step not only prevents costly damage but also ensures the efficiency and longevity of the entire treatment system.
Imagine a barrage of sticks, rags, plastics, and sand relentlessly pounding against the inner workings of a wastewater plant. Without proper screening, these materials would clog pumps, abrade pipes, and jam valves, leading to frequent breakdowns and costly repairs. Manual screens, often in the form of bar racks or perforated plates, act as the first filter, trapping objects larger than 6 mm (0.25 inches). These screens require regular cleaning, typically every 4 to 6 hours, to maintain optimal flow rates. Automated systems, such as mechanically cleaned screens, reduce the need for manual intervention, ensuring consistent performance.
Grit removal follows screening, targeting smaller, denser particles like sand, gravel, and eggshells. These materials, though minute, accumulate in pipelines and tanks, reducing capacity and increasing maintenance needs. A typical grit chamber uses gravity to separate particles heavier than 1.1 g/cm³, allowing them to settle at the bottom. The velocity of the wastewater is carefully controlled—usually between 0.3 to 0.6 meters per second—to ensure effective settling without carrying grit further downstream. Regular removal of accumulated grit, often daily, is essential to prevent buildup.
The benefits of screening and grit removal extend beyond equipment protection. By eliminating large debris, these processes reduce the load on subsequent treatment stages, such as sedimentation and biological treatment. This not only improves overall efficiency but also lowers energy consumption and chemical usage. For instance, removing grit can reduce the volume of sludge produced in primary clarifiers by up to 10%, translating to significant cost savings in sludge handling and disposal.
Incorporating screening and grit removal into wastewater treatment is not just a technical necessity but a strategic investment. Facilities that prioritize this stage report fewer equipment failures, lower maintenance costs, and smoother operations. For example, a case study from a mid-sized municipal plant showed a 30% reduction in pump repairs after upgrading their screening and grit removal systems. Practical tips include selecting screens with appropriate openings for the expected debris size and installing duplicate units to allow for maintenance without interrupting flow. By mastering this initial stage, wastewater treatment plants can lay a robust foundation for the complex processes that follow.
Mastering the Wasted Effect in Windows Movie Maker: A Step-by-Step Guide
You may want to see also
Explore related products
Primary Sedimentation: Allows solids to settle, reducing suspended particles through gravity separation

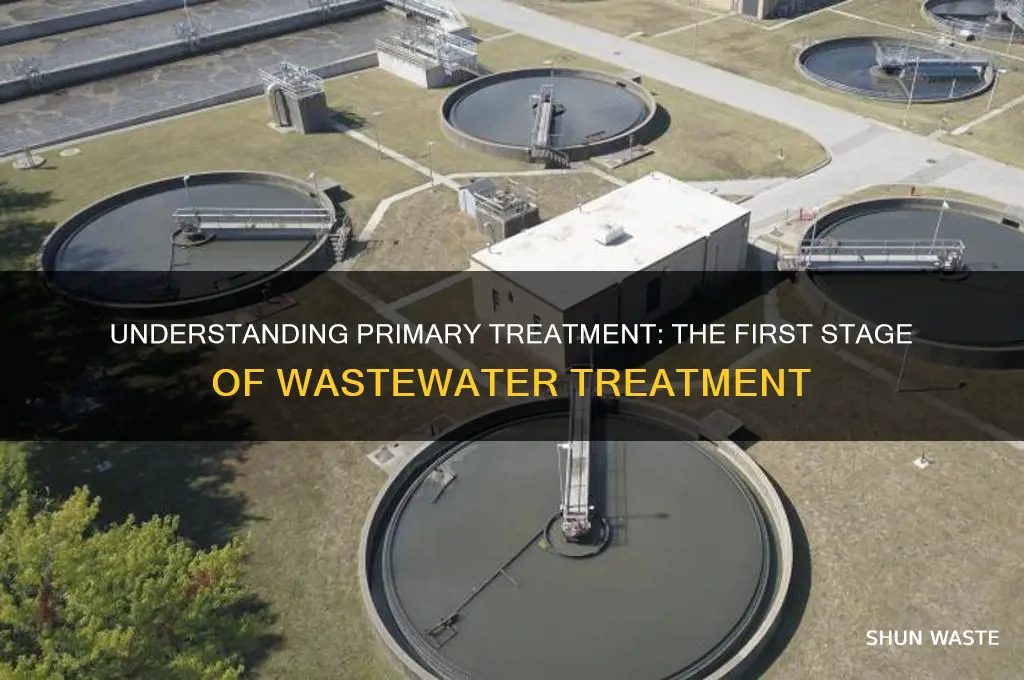

Primary sedimentation, the cornerstone of wastewater treatment, leverages the simplest yet most effective force in nature: gravity. In this stage, wastewater flows into large tanks called primary clarifiers, where the velocity of the water is significantly reduced. This slowdown allows heavier solids, such as grit, sand, and organic matter, to settle to the bottom due to their higher density compared to water. The process typically takes 2 to 3 hours, during which up to 60% of suspended solids and 30% of biochemical oxygen demand (BOD) are removed. The settled material, known as primary sludge, is then pumped out for further treatment, while the clarified water moves on to subsequent stages.
To optimize primary sedimentation, operators must carefully monitor tank design and flow conditions. Tanks are often rectangular or circular, with a depth of 3 to 4 meters and a surface loading rate of 30 to 40 m³ per square meter per day. Excessive turbulence or uneven flow distribution can hinder settling, so baffles and inlet/outlet designs are critical. Additionally, temperature plays a role; colder water increases the density differential between solids and water, enhancing settling efficiency. Practical tips include regular cleaning of tank bottoms to prevent sludge buildup and using scrapers to ensure consistent sludge removal.
A comparative analysis reveals the efficiency of primary sedimentation in different contexts. For instance, municipal wastewater treatment plants often achieve higher removal rates due to consistent inflow characteristics, whereas industrial wastewater may require pre-treatment to handle varying concentrations of solids. In developing regions, simpler sedimentation tanks made of concrete or plastic are employed, demonstrating the adaptability of this method. Despite its simplicity, primary sedimentation remains a vital step, reducing the load on more energy-intensive downstream processes like secondary treatment.
From a persuasive standpoint, investing in robust primary sedimentation infrastructure is a no-brainer for wastewater treatment facilities. Not only does it significantly reduce operational costs by minimizing the volume of sludge requiring further treatment, but it also extends the lifespan of equipment in later stages. For example, removing grit prevents abrasion damage to pumps and pipes, saving thousands in maintenance annually. Moreover, the primary sludge produced can be anaerobically digested to generate biogas, turning waste into a renewable energy source. This dual benefit of cost savings and sustainability makes primary sedimentation an indispensable component of modern wastewater management.
Finally, a descriptive walkthrough of the process highlights its elegance in simplicity. Imagine wastewater entering a primary clarifier, its murky brown hue gradually transforming as solids descend in slow, graceful spirals. At the tank’s bottom, sludge blankets form, while the surface reveals clearer water, still imperfect but markedly improved. Skimmers remove floating oils and grease, while sludge collectors move methodically, ensuring no accumulation disrupts the process. This serene yet dynamic scene underscores the power of gravity separation, a natural process harnessed to tackle one of humanity’s most pressing environmental challenges.
Exploring Scourge Wastes EQ2: Essential Tips for Beginners to Begin
You may want to see also
Explore related products
Flow Equalization: Balances wastewater flow rates to ensure consistent treatment efficiency
Wastewater treatment plants often face the challenge of fluctuating flow rates, which can compromise the efficiency of the treatment process. Flow equalization emerges as a critical solution, acting as a buffer to stabilize these variations. By temporarily storing and gradually releasing wastewater, this technique ensures that treatment units operate under optimal conditions, regardless of peak or low flow periods. This not only enhances treatment efficiency but also reduces the risk of system overload or underutilization.
Consider a typical scenario where a wastewater treatment plant experiences a sudden surge in flow due to heavy rainfall or industrial discharge. Without flow equalization, such peaks can overwhelm primary treatment units like screens and grit chambers, leading to inefficiencies or even equipment failure. Implementing a flow equalization basin allows the plant to store excess wastewater temporarily, releasing it at a controlled rate that matches the treatment capacity. For instance, a plant treating 10 million gallons per day (MGD) might use a basin to handle peak flows of up to 20 MGD, ensuring consistent operation.
The design of a flow equalization system requires careful consideration of factors like basin size, detention time, and mixing mechanisms. A common rule of thumb is to provide a detention time of 4 to 8 hours, allowing sufficient time to balance flow rates. Mechanical mixers or diffused aeration systems can be employed to prevent sedimentation and maintain homogeneous conditions within the basin. For example, a 5 MGD plant might install a 2-million-gallon equalization basin with submersible mixers to ensure uniform distribution of pollutants before treatment.
One practical tip for operators is to monitor flow rates and quality parameters in real-time, using automated systems to adjust equalization strategies dynamically. For instance, if a sudden increase in biochemical oxygen demand (BOD) is detected, the operator can increase detention time to allow for better mixing and initial degradation of organic matter. Additionally, integrating flow equalization with other preliminary treatment processes, such as screening and grit removal, can further enhance overall system performance.
In conclusion, flow equalization is not just a preliminary step but a strategic tool for optimizing wastewater treatment. By balancing flow rates, it ensures that downstream processes operate efficiently, reducing operational costs and improving treatment outcomes. Whether for small municipal plants or large industrial facilities, investing in a well-designed flow equalization system pays dividends in terms of reliability and compliance with regulatory standards.
Sussex County Solid Waste Authority: Operations, Impact, and Community Concerns
You may want to see also
Explore related products
pH Adjustment: Corrects acidity or alkalinity to optimize subsequent treatment processes
Wastewater often arrives at treatment plants with a pH level far from the neutral 7, which is ideal for most treatment processes. Industrial discharge, acid rain, or natural decomposition can skew pH, creating an environment hostile to the microorganisms essential for breaking down organic matter. pH adjustment, therefore, becomes the critical first step in wastewater treatment, ensuring that subsequent processes like coagulation, sedimentation, and biological treatment operate efficiently.
The process of pH adjustment involves adding chemicals to neutralize acidity or alkalinity. For acidic wastewater (pH below 7), bases such as sodium hydroxide (NaOH) or lime (Ca(OH)₂) are commonly used. For alkaline wastewater (pH above 7), acids like sulfuric acid (H₂SO₄) or carbon dioxide (CO₂) are applied. The dosage depends on the initial pH and the desired target, typically around 6.5 to 8.5. For instance, a wastewater stream with a pH of 4 might require 50–100 mg/L of NaOH to reach neutrality, while a pH of 10 might need 20–50 mg/L of H₂SO₄. Precision is key, as over-adjustment can lead to unnecessary chemical usage and increased treatment costs.
While pH adjustment is straightforward in theory, practical challenges arise in real-world applications. Continuous monitoring using pH meters is essential to ensure accuracy, as even slight deviations can disrupt downstream processes. For example, a pH below 6 can inhibit the growth of bacteria in activated sludge systems, while a pH above 9 can lead to the precipitation of metals, clogging equipment. Additionally, the choice of chemical can impact treatment costs and environmental footprint. Lime, though cheaper than NaOH, requires larger doses and produces sludge, while CO₂ is safer to handle than H₂SO₄ but less effective for highly alkaline wastewater.
The benefits of proper pH adjustment extend beyond the treatment plant. By optimizing conditions for biological and chemical processes, it reduces the energy and chemical consumption required for treatment. This not only lowers operational costs but also minimizes the environmental impact of wastewater discharge. For instance, a well-adjusted pH ensures that disinfectants like chlorine work effectively, reducing the risk of harmful pathogens reaching water bodies. In essence, pH adjustment is not just a preliminary step but a cornerstone of efficient and sustainable wastewater treatment.
Reversing Feline Muscle Wasting: Effective Strategies for Cat Health Recovery
You may want to see also
Explore related products
Oil and Grease Removal: Separates floating oils and grease using skimmers or gravity
Floating oils and grease in wastewater pose significant challenges for treatment plants, as these substances can interfere with subsequent treatment processes and harm the environment if released untreated. The first stage of wastewater treatment, known as preliminary treatment, addresses this issue through oil and grease removal. This critical step employs simple yet effective methods to separate these contaminants before they cause operational problems or ecological damage.
Skimmers and gravity separation are the primary tools for this task. Skimmers, either surface or weir-type, are designed to physically remove floating oils and grease from the water’s surface. Surface skimmers, often used in smaller applications, operate by moving a lip or edge just below the water surface, collecting oils and grease as they float to the top. Weir-type skimmers, more common in larger facilities, use a stationary weir over which water flows, allowing lighter oils and grease to be trapped and removed. For optimal performance, skimmers should be regularly maintained to prevent clogging and ensure efficient removal.
Gravity separation, another fundamental method, leverages the natural buoyancy of oils and grease. In this process, wastewater is held in large tanks or basins, allowing sufficient time for oils and grease to rise to the surface due to their lower density compared to water. Once separated, these substances are skimmed off or collected using automated systems. The efficiency of gravity separation depends on factors such as detention time, tank design, and the specific gravity of the contaminants. For instance, a detention time of 15 to 30 minutes is typically sufficient for effective separation in municipal wastewater treatment plants.
While skimmers and gravity separation are highly effective for removing free-floating oils and grease, they may not address emulsified or dissolved oils. In such cases, additional treatment steps, such as chemical dosing with coagulants or flocculants, may be necessary to enhance separation. For example, dosing polymers at 10–50 mg/L can help destabilize emulsions, allowing oils to coalesce and float more readily. However, care must be taken to avoid overdosing, as excessive chemicals can lead to sludge handling issues or interfere with downstream processes.
In industrial settings, where oil and grease concentrations are often higher, specialized equipment like API (American Petroleum Institute) separators may be employed. These separators combine gravity separation with skimming mechanisms and are designed to handle larger volumes of oily wastewater. Regular monitoring of oil and grease levels, both at the inlet and outlet of the treatment system, is essential to ensure compliance with discharge regulations and to optimize treatment efficiency.
In conclusion, oil and grease removal is a cornerstone of the first stage of wastewater treatment, employing skimmers and gravity separation to protect both treatment processes and the environment. By understanding the principles and practical considerations of these methods, operators can effectively manage this critical step, ensuring smoother operations and cleaner effluent. Whether in municipal or industrial contexts, the careful application of these techniques remains indispensable for sustainable wastewater management.
Evergreen Waste: Does It Handle Tard Waste Pick-Up?
You may want to see also
Frequently asked questions
The first stage of wastewater treatment is preliminary treatment, which involves removing large solids and debris through processes like screening, grit removal, and comminution.
Preliminary treatment is crucial because it protects downstream equipment from damage, reduces the risk of clogging, and prevents large objects from interfering with subsequent treatment processes.
Common methods include bar screens to remove large objects, grit chambers to eliminate sand and gravel, and comminutors to grind larger particles into smaller pieces.
No, the first stage primarily focuses on removing inorganic solids and debris. Organic matter is typically addressed in later stages, such as primary and secondary treatment.
The duration varies depending on the facility and flow rate, but preliminary treatment is generally a rapid process, often completed within minutes to a few hours.
