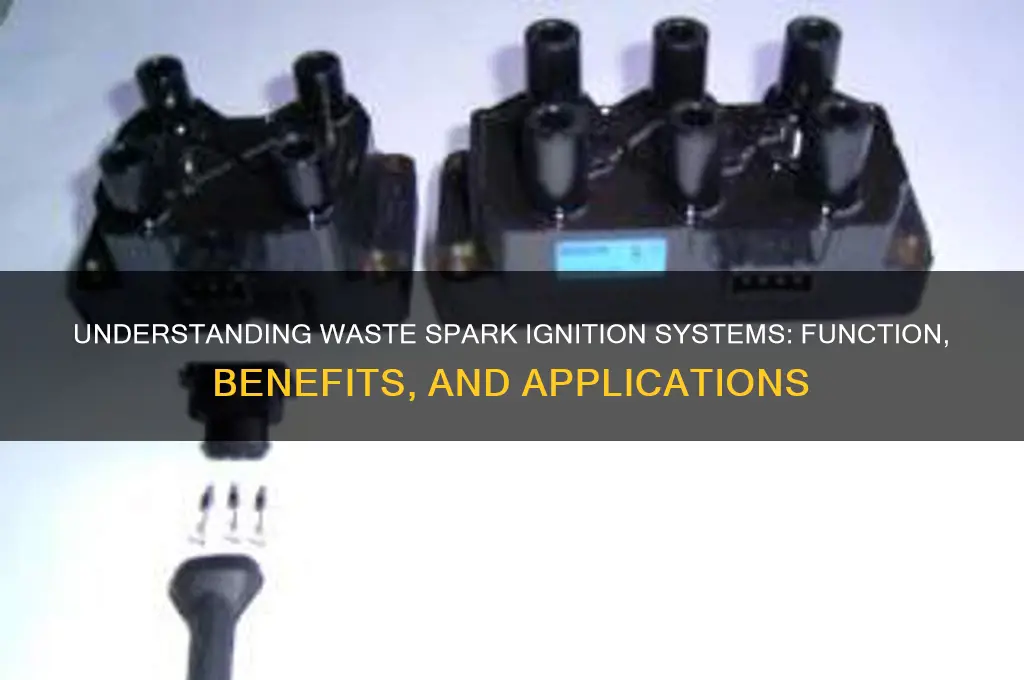

A waste spark ignition system is a type of ignition setup commonly used in four-stroke engines, particularly in inline or V-configured engines with an even number of cylinders. In this system, a single ignition coil fires two spark plugs simultaneously, with one plug igniting the air-fuel mixture in a cylinder on its power stroke while the other fires into a cylinder on its exhaust stroke, where no combustion occurs. This design reduces the number of coils needed, simplifying the system and lowering costs, though it requires precise timing to ensure efficient operation. Despite the wasted spark, this setup is reliable and widely used in modern vehicles due to its simplicity and effectiveness.
| Characteristics | Values |
|---|---|
| Definition | A waste spark ignition system fires two spark plugs simultaneously, one for a power stroke and one for an exhaust stroke, in a 4-stroke engine. |
| Application | Commonly used in 4-cylinder engines with distributor-based ignition systems. |
| Spark Plug Firing | Fires pairs of spark plugs (e.g., cylinders 1 & 4, 2 & 3 in a 4-cylinder engine). |
| Efficiency | Less efficient than individual cylinder ignition due to wasted spark energy. |
| Cost | Lower cost compared to individual coil-on-plug systems. |
| Complexity | Simpler design with fewer components (e.g., single distributor, fewer coils). |
| Maintenance | Easier to maintain due to fewer parts but requires regular ignition system checks. |
| Performance | Adequate for most applications but may limit high-performance tuning. |
| Fuel Economy | Slightly lower fuel efficiency due to wasted spark energy. |
| Emissions | Higher emissions compared to more advanced ignition systems. |
| Modern Usage | Rarely used in modern vehicles; replaced by coil-on-plug or direct ignition systems. |
| Advantage | Cost-effective and reliable for simpler engine designs. |
| Disadvantage | Wasted energy, limited performance, and higher emissions. |
Explore related products
What You'll Learn
- Definition: Waste spark fires two cylinders simultaneously, one on power stroke, one on exhaust
- Working Principle: Uses a single coil to ignite opposite cylinders in a four-stroke engine
- Advantages: Simplifies design, reduces costs, and improves reliability in four-cylinder engines
- Disadvantages: Inefficient for odd-cylinder engines and limits performance tuning options
- Applications: Commonly used in inline-four engines, motorcycles, and small automotive setups
Definition: Waste spark fires two cylinders simultaneously, one on power stroke, one on exhaust
In a waste spark ignition system, the spark plugs fire in pairs, targeting two cylinders simultaneously. This design is a clever engineering compromise, optimizing efficiency in four-stroke engines where cylinders operate in alternating cycles. For instance, in a four-cylinder engine, when cylinder 1 is on its power stroke, cylinder 4 is on its exhaust stroke. The waste spark system ignites both cylinders at once, knowing that the spark in the exhaust stroke cylinder is essentially "wasted" since it cannot combust spent gases. This approach reduces the complexity of the ignition system by halving the number of ignition coils needed, making it cost-effective and reliable.
Consider the practical implications of this system in a 2.0L inline-four engine. During operation, the spark plug in the power stroke cylinder fires to ignite the air-fuel mixture, driving the piston downward. Simultaneously, the spark plug in the exhaust stroke cylinder fires into a cylinder filled with exhaust gases, which cannot combust. This "waste" spark is harmless and does not affect engine performance. The system relies on the precise timing of the engine’s cycles, ensuring that the paired cylinders are always in opposite strokes. For example, in a firing order of 1-3-4-2, cylinders 1 and 4, and 2 and 3, are paired for simultaneous ignition.
One of the key advantages of the waste spark system is its simplicity. Traditional distributor-based systems or modern coil-on-plug setups can be more complex and expensive. By firing two cylinders at once, the waste spark system requires fewer ignition coils, reducing costs and potential points of failure. However, this design demands precise engine timing to ensure the paired cylinders are always in the correct strokes. Misalignment, such as from a slipped timing belt, can lead to inefficiency or damage. Regular maintenance, including timing checks and spark plug replacements every 30,000 to 50,000 miles, is essential to keep the system functioning optimally.
Comparatively, the waste spark system contrasts with sequential ignition systems, which fire each cylinder individually. While sequential systems offer more precise control, they are more complex and costly. The waste spark system strikes a balance, providing reliable performance at a lower cost. It’s commonly found in four-cylinder engines, such as those in the Honda Civic or Toyota Corolla, where simplicity and efficiency are prioritized. For enthusiasts or mechanics, understanding this system’s nuances can aid in troubleshooting issues like misfires or rough idling, often traced back to ignition timing or coil failures.
In conclusion, the waste spark ignition system is a testament to engineering ingenuity, maximizing efficiency with minimal complexity. By firing two cylinders simultaneously—one on the power stroke and one on the exhaust stroke—it reduces costs and maintains reliability. While the "waste" spark serves no functional purpose, it is a harmless byproduct of the system’s design. For vehicle owners, recognizing the importance of timing and maintenance ensures this system continues to operate smoothly. Whether you’re a DIY mechanic or simply curious about how engines work, the waste spark system offers a fascinating glimpse into the compromises and innovations that drive modern automotive technology.
Storing Regulated and Unregulated Waste: A Comprehensive Process Guide
You may want to see also
Explore related products
Working Principle: Uses a single coil to ignite opposite cylinders in a four-stroke engine
A waste spark ignition system is a clever engineering solution that maximizes efficiency in four-stroke engines by using a single coil to ignite opposite cylinders simultaneously. This system leverages the fact that in a four-stroke engine, one cylinder is always on its compression stroke while its opposite is on its exhaust stroke. By firing the spark plug in both cylinders at the same time, the system ensures that the spark in the exhaust stroke (the "waste" spark) is harmless, as there is no air-fuel mixture to ignite. This design reduces the number of coils needed, simplifying the ignition system and lowering costs without compromising performance.
To understand the working principle, imagine a four-cylinder engine with cylinders numbered 1, 2, 3, and 4. Cylinders 1 and 4 are paired, as are cylinders 2 and 3. When cylinder 1 is on its compression stroke, cylinder 4 is on its exhaust stroke. The single coil fires both spark plugs simultaneously, igniting the air-fuel mixture in cylinder 1 while producing a waste spark in cylinder 4. This process repeats for the other pair, ensuring continuous ignition with minimal components. The key lies in the engine’s firing order, which is carefully designed to synchronize the compression and exhaust strokes of opposite cylinders.
One practical advantage of this system is its simplicity. Instead of requiring a separate coil for each cylinder, a waste spark system uses fewer coils, typically one for every two cylinders. For example, a four-cylinder engine would need only two coils, reducing weight, complexity, and potential points of failure. This makes it particularly attractive for motorcycles, small engines, and applications where space and cost are critical. Maintenance is also streamlined, as technicians need to diagnose and replace fewer components when ignition issues arise.
However, the waste spark system is not without limitations. Since the spark plugs in the exhaust stroke are subjected to higher temperatures and wear, they may degrade faster than in a traditional system. Additionally, diagnosing ignition problems can be trickier, as a misfire in one cylinder could be caused by issues in either the compression or exhaust stroke of the paired cylinders. Mechanics must use tools like oscilloscopes or cylinder balance tests to pinpoint the exact source of the problem. Despite these challenges, the system’s efficiency and cost-effectiveness make it a popular choice in many modern engines.
In conclusion, the waste spark ignition system’s working principle is a testament to innovative engineering. By harnessing the natural rhythm of a four-stroke engine, it achieves optimal performance with minimal resources. While it requires careful design and maintenance, its benefits in simplicity, cost, and reliability make it a standout solution in the automotive world. Whether in a high-performance motorcycle or a lawnmower, this system exemplifies how constraints can drive creativity in mechanical design.
Calculating Wastewater Quantity in HCF: A Step-by-Step Guide
You may want to see also
Explore related products
Advantages: Simplifies design, reduces costs, and improves reliability in four-cylinder engines
A waste spark ignition system, by design, ignites the air-fuel mixture in two cylinders simultaneously—one on its compression stroke and the other on its exhaust stroke. This approach, while seemingly inefficient, offers significant advantages in four-cylinder engines, particularly in simplifying design, reducing costs, and improving reliability. By eliminating the need for a separate distributor or complex timing mechanisms, the system relies on a single coil to fire paired cylinders, such as 1 and 4, and 2 and 3, simultaneously. This streamlined architecture reduces the number of components, making the engine lighter and less prone to failure points.
Consider the cost implications of this design. Traditional ignition systems require multiple coils, wires, and a distributor, each adding to the overall expense. In contrast, a waste spark system uses fewer parts, often just two coils for a four-cylinder engine. This reduction in components not only lowers manufacturing costs but also decreases the likelihood of part failures, translating to lower maintenance expenses for the vehicle owner. For instance, replacing a single coil in a waste spark system is typically cheaper and faster than repairing a distributor-based setup.
Reliability is another critical benefit. With fewer moving parts and less complexity, there are fewer opportunities for wear and tear. The absence of a distributor, for example, eliminates common failure points like worn caps, rotors, or bearings. This simplicity ensures consistent ignition timing, which is crucial for smooth engine operation. In four-cylinder engines, where space is often limited, the compact nature of a waste spark system further enhances durability by reducing the risk of damage from vibration or heat.
From a design perspective, the waste spark system’s symmetry is a key advantage. By pairing cylinders that are 360 degrees out of phase (e.g., cylinders 1 and 4 in a firing order of 1-3-4-2), the system inherently balances the ignition process. This symmetry not only simplifies the wiring layout but also ensures that the engine’s firing sequence remains optimal, even under varying load conditions. For engineers, this means fewer design constraints and greater flexibility in optimizing engine performance.
In practice, the waste spark system’s advantages are particularly evident in modern four-cylinder engines, where efficiency and cost-effectiveness are paramount. For example, many small displacement engines in compact cars and motorcycles utilize this system to maximize reliability while minimizing production costs. By focusing on simplicity, cost reduction, and reliability, the waste spark ignition system proves itself as a practical and efficient solution for four-cylinder applications, offering a balance of performance and economy that traditional systems often struggle to match.
Efficiently Emptying Your Sawgrass SG1000 Waste Collection Unit: A Guide
You may want to see also
Explore related products
Disadvantages: Inefficient for odd-cylinder engines and limits performance tuning options
A waste spark ignition system, while efficient for even-cylinder engines, faces significant challenges when applied to odd-cylinder configurations. This inefficiency stems from the system’s inherent design, which pairs cylinders in a way that doesn’t align with the firing order of odd-numbered setups. For instance, a three-cylinder engine would require one cylinder to operate without a paired companion, disrupting the balanced spark distribution. This imbalance leads to uneven combustion timing, reduced power output, and increased fuel consumption, making it less ideal for applications where efficiency is critical.
Consider the practical implications for performance tuning. In even-cylinder engines, waste spark systems allow for straightforward ignition timing adjustments across paired cylinders. However, in odd-cylinder engines, this symmetry is lost. Tuners must account for the unpaired cylinder, which complicates the process of optimizing spark timing and fuel delivery. This limitation restricts the ability to fine-tune performance, particularly in high-performance or racing applications where precision is paramount. For example, a tuner working on a three-cylinder motorcycle engine might struggle to achieve the same level of responsiveness and power as they would with a four-cylinder counterpart.
The inefficiency of waste spark systems in odd-cylinder engines also manifests in real-world scenarios. Take a single-cylinder motorcycle or a three-cylinder compact car. In these cases, the lack of paired cylinders forces the system to operate in a suboptimal manner, often resulting in rough idling, reduced throttle response, and higher emissions. This not only affects the driving experience but also undermines efforts to meet stringent environmental regulations. For instance, a three-cylinder engine using a waste spark system might require additional components like secondary air injection to compensate for incomplete combustion, adding complexity and cost.
To mitigate these disadvantages, engineers often opt for alternative ignition systems for odd-cylinder engines, such as individual coil-on-plug setups. While these systems are more expensive and complex, they offer precise control over each cylinder’s ignition, eliminating the inefficiencies of waste spark designs. For enthusiasts or professionals working on odd-cylinder engines, investing in such systems can yield significant performance gains and smoother operation. However, for budget-constrained projects, understanding the limitations of waste spark systems is crucial to managing expectations and optimizing what is achievable within those constraints.
In conclusion, while waste spark ignition systems excel in even-cylinder applications, their inefficiency in odd-cylinder engines and limited tuning potential make them less suitable for such configurations. Recognizing these drawbacks allows engineers and enthusiasts to make informed decisions, whether by adopting alternative ignition technologies or adjusting performance goals to align with the system’s capabilities. Practical tips include prioritizing coil-on-plug systems for odd-cylinder projects and focusing on optimizing other engine parameters, such as intake and exhaust, to compensate for ignition limitations.
Pure Power Blue Waste Breakdown: Understanding Its Decomposition Process
You may want to see also
Explore related products
Applications: Commonly used in inline-four engines, motorcycles, and small automotive setups
Inline-four engines, the backbone of many compact and midsize vehicles, are a prime candidate for waste spark ignition systems. This configuration pairs two cylinders in their power stroke simultaneously, allowing a single coil to fire two spark plugs at once. For instance, in a typical inline-four, cylinders 1 and 4 share a coil, as do cylinders 2 and 3. This setup reduces the number of coils needed from four to two, cutting costs and simplifying the design without sacrificing performance. The efficiency of this system makes it ideal for high-volume production vehicles where balancing cost and reliability is critical.
Motorcycles, particularly those with single-cylinder or parallel-twin engines, also benefit from waste spark systems. In a single-cylinder setup, the system fires the spark plug on both the compression and exhaust strokes, though only the compression stroke contributes to power. This redundancy ensures consistent ignition timing, which is vital for the smooth operation of motorcycles, where engine vibrations and varying loads are common. For parallel-twin engines, the system mirrors the inline-four approach, pairing cylinders to share coils, reducing weight and complexity—a significant advantage in the lightweight, performance-driven world of motorcycling.
Small automotive setups, such as those in economy cars, compact SUVs, and even some entry-level sports cars, frequently employ waste spark systems due to their cost-effectiveness and reliability. These vehicles often prioritize fuel efficiency and affordability over high-performance features, making the waste spark system a natural fit. For example, a 1.6-liter inline-four engine in a compact sedan might use a two-coil waste spark system, ensuring consistent ignition while keeping production costs low. This approach allows manufacturers to meet emissions standards and deliver reliable performance without overcomplicating the engine bay.
When implementing a waste spark system in these applications, engineers must consider specific design constraints. For inline-four engines, coil placement and wiring routing are critical to ensure even spark distribution and minimize electromagnetic interference. In motorcycles, the system must be robust enough to handle vibrations and environmental exposure, often requiring sealed connectors and vibration-dampening mounts. For small automotive setups, the focus shifts to durability and cost, with components designed to withstand years of use without requiring frequent maintenance. By tailoring the system to these unique demands, waste spark ignition remains a versatile and practical solution across diverse applications.
Supporting Intoxicated Friends: Practical Steps to Help Someone Who's Wasted
You may want to see also
Frequently asked questions
A waste spark ignition system is a type of ignition setup used in four-stroke engines where one spark plug fires two cylinders simultaneously, one on its compression stroke and the other on its exhaust stroke, hence the term "waste spark."
In a waste spark system, the spark plug fires simultaneously in two paired cylinders, one that is compressing the air-fuel mixture (producing power) and one that is exhausting waste gases (non-productive). This simplifies wiring and reduces the number of ignition components needed.
The main advantages include reduced complexity, lower cost, and fewer components compared to traditional systems. It also ensures consistent spark timing for both cylinders in the pair, improving reliability.
The primary disadvantage is that the spark on the exhaust stroke is unnecessary and can slightly reduce efficiency. Additionally, if one cylinder in the pair misfires, it can affect both cylinders' performance.
Waste spark systems are commonly found in inline four-cylinder engines and V6 engines, particularly in modern vehicles, due to their simplicity and cost-effectiveness. They are also used in some motorcycles and small engines.
