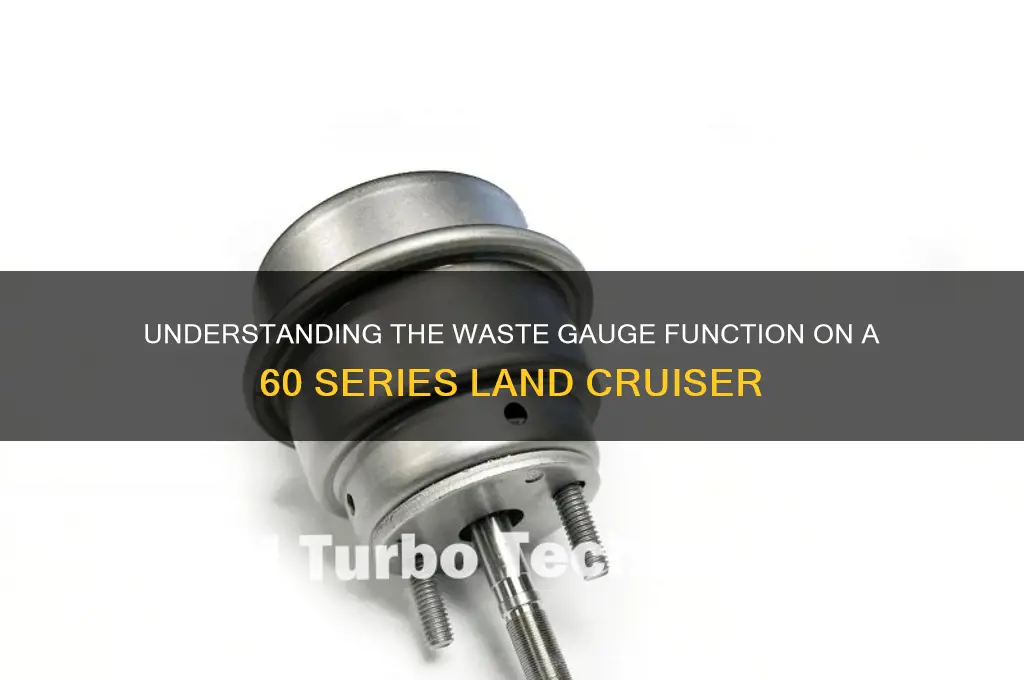

The waste gauge on a 60 Series, commonly associated with Toyota Land Cruisers, is a critical component in the vehicle's turbocharger system. It monitors the pressure differential between the turbocharger's inlet and outlet, specifically measuring the exhaust gas recirculation (EGR) system's efficiency and the turbo's performance. This gauge helps drivers and mechanics diagnose issues such as turbo boost leaks, EGR valve malfunctions, or exhaust system restrictions, ensuring optimal engine performance and fuel efficiency. Understanding its function is essential for maintaining the reliability and longevity of the 60 Series' diesel engine, particularly in off-road or high-demand driving conditions.
Explore related products
What You'll Learn
- Definition: Waste gate function, purpose, and role in 60 series turbocharging systems
- Location: Identifying the waste gate's position on a 60 series engine setup
- Adjustment: How to properly adjust the waste gate for optimal performance
- Common Issues: Frequent problems with 60 series waste gates and troubleshooting tips
- Upgrades: Benefits and options for upgrading the waste gate on a 60 series
Definition: Waste gate function, purpose, and role in 60 series turbocharging systems
In turbocharged engines like the 60 series, the wastegate is a critical component that regulates boost pressure, ensuring optimal performance and preventing damage. Its primary function is to bypass excess exhaust gases around the turbocharger turbine, controlling the speed at which the turbine spins and, consequently, the amount of air compressed into the engine. Without a wastegate, the turbocharger could generate excessive boost pressure, leading to engine knock, overheating, or even catastrophic failure. In the 60 series, this mechanism is particularly vital due to the engine’s high-performance demands and the need for precise control in heavy-duty applications.
The wastegate operates based on a spring-loaded valve that opens or closes in response to boost pressure. When the pressure reaches a predetermined threshold (typically 7–15 PSI in 60 series setups, depending on tuning), the wastegate actuator activates, diverting exhaust gases away from the turbine. This action reduces the turbo’s speed and stabilizes boost levels. For example, in a 60 series Land Cruiser with a turbocharged diesel engine, a properly calibrated wastegate ensures the engine maintains safe and efficient power delivery, especially under load or during high-altitude driving. Misadjustment of this component can result in either insufficient power (if the wastegate opens too early) or dangerous overboost (if it fails to open).
One of the key purposes of the wastegate in 60 series turbocharging systems is to balance power output with reliability. Turbocharged engines are prone to "boost creep," where pressure gradually increases beyond the desired level due to factors like exhaust backpressure or high ambient temperatures. The wastegate mitigates this by providing a dynamic response to changing conditions, ensuring the engine operates within its designed parameters. For instance, during prolonged uphill climbs, the wastegate prevents the turbo from spinning uncontrollably, which could otherwise lead to premature wear on bearings or seals.
Practical tips for maintaining a wastegate in a 60 series system include regular inspection for carbon buildup, ensuring the actuator arm moves freely, and verifying the spring tension matches the desired boost target. Upgrading to an external wastegate can offer finer control and higher durability, particularly in modified or high-performance setups. However, this requires careful tuning to avoid overstressing the engine or turbocharger. Always consult a professional when adjusting wastegate settings, as even small changes can significantly impact performance and longevity.
In summary, the wastegate is indispensable in 60 series turbocharging systems, serving as the gatekeeper of boost pressure. Its role extends beyond mere regulation—it safeguards the engine, enhances efficiency, and ensures consistent power delivery across varying driving conditions. Understanding its function and maintaining it properly are essential for maximizing the potential of a turbocharged 60 series engine while preserving its reliability.
