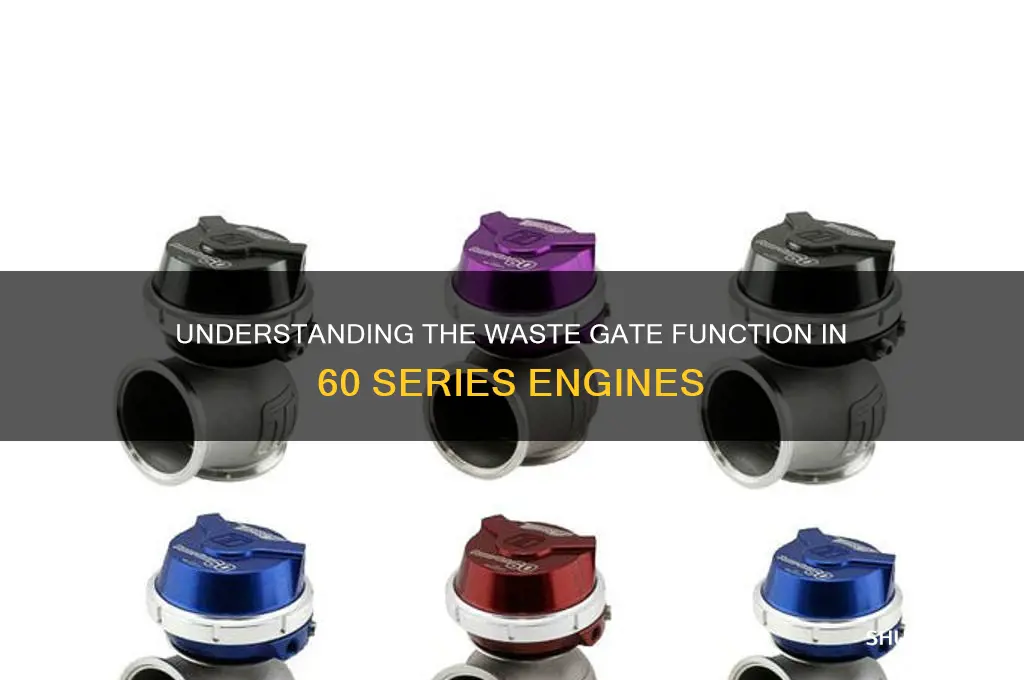

A wastegate is a crucial component in turbocharged engines, including those found in the 60 series, designed to regulate and control the turbocharger's boost pressure. In the context of the 60 series, which often refers to Toyota Land Cruisers or similar vehicles equipped with turbocharged diesel engines, the wastegate plays a vital role in optimizing performance and preventing over-boosting. By diverting excess exhaust gases away from the turbocharger, the wastegate ensures that the engine operates within safe and efficient parameters, thereby protecting the engine from potential damage while maintaining consistent power delivery. Understanding the function and maintenance of the wastegate is essential for enthusiasts and owners of 60 series vehicles to ensure longevity and optimal performance of their turbocharged systems.
| Characteristics | Values |
|---|---|
| Definition | A wastegate is a component in turbocharged engines that regulates boost pressure by bypassing exhaust gases around the turbine. |
| Function | Controls turbocharger speed and prevents excessive boost pressure. |
| Location | Mounted on the exhaust manifold or downpipe of the 60 series engine. |
| Type | External wastegate (common in 60 series applications). |
| Adjustment | Adjustable to tune boost pressure levels. |
| Material | Typically made of stainless steel or high-temperature alloys. |
| Compatibility | Designed for Toyota 1HD-FT/1HZ engines in 60 series Land Cruisers. |
| Boost Control | Works in conjunction with a boost controller or ECU for precise regulation. |
| Maintenance | Requires periodic inspection for wear, leaks, or sticking. |
| Upgrade Potential | Can be upgraded to handle higher boost pressures in performance builds. |
| Common Issues | Sticking, leaks, or failure due to high temperatures or debris. |
Explore related products
What You'll Learn
- Function: Regulates turbocharger boost pressure to prevent engine damage from excessive intake air
- Location: Typically mounted on the turbocharger housing, connected via a hose
- Operation: Opens to bypass exhaust gases, reducing turbo speed and boost pressure
- Types: Internal (integrated) or external (separate unit) wastegate designs for 60 series
- Maintenance: Regular inspection for leaks, sticking, or wear to ensure proper function
Function: Regulates turbocharger boost pressure to prevent engine damage from excessive intake air
The 60 series wastegate is a critical component in managing the delicate balance between power and protection in turbocharged engines. Its primary function is to regulate turbocharger boost pressure, ensuring it remains within safe limits to prevent engine damage from excessive intake air. This mechanism acts as a pressure relief valve, diverting excess exhaust gases away from the turbocharger when boost levels exceed a predetermined threshold. Without this regulation, the engine could face catastrophic failures, such as blown head gaskets, cracked pistons, or damaged bearings, due to the immense stress caused by over-boosting.
Consider the analogy of a pressure cooker: just as a safety valve releases steam to prevent an explosion, the wastegate releases excess exhaust pressure to safeguard the engine. In the 60 series, this is particularly crucial because these engines are often used in heavy-duty applications, such as in Toyota Land Cruisers, where reliability under extreme conditions is paramount. The wastegate’s operation is governed by a spring-loaded valve that opens at a specific pressure, typically calibrated to match the engine’s design limits. For instance, a 60 series engine might be set to limit boost pressure to 10-12 PSI, ensuring optimal performance without risking damage.
Proper wastegate maintenance is essential for longevity and efficiency. Over time, carbon buildup or wear can cause the valve to stick, leading to either insufficient boost or dangerous over-boosting. Regular inspection and cleaning, especially after prolonged use in dusty or muddy environments, can prevent such issues. Additionally, upgrading to an adjustable wastegate allows for fine-tuning boost levels, which can be beneficial for those seeking to optimize performance while maintaining safety margins. Always consult a professional when adjusting boost settings to avoid inadvertently exceeding the engine’s capabilities.
Comparing the wastegate to other boost control methods highlights its simplicity and reliability. While electronic boost controllers offer precision, they rely on complex systems that can fail under harsh conditions. The mechanical wastegate, on the other hand, operates independently of the engine’s electronics, making it a robust solution for off-road or high-stress applications. This reliability is a key reason why the 60 series wastegate remains a trusted component in turbocharged engines, even as technology advances.
In practice, understanding the wastegate’s role empowers owners to diagnose and address issues proactively. Symptoms of a malfunctioning wastegate include inconsistent power delivery, excessive smoke from the exhaust, or unusual whistling noises. If these signs appear, immediate inspection is warranted. For DIY enthusiasts, replacing the wastegate diaphragm or cleaning the valve assembly can often resolve minor issues. However, for major repairs or upgrades, professional assistance is recommended to ensure precise calibration and installation. By prioritizing wastegate health, 60 series owners can enjoy the benefits of turbocharging without compromising engine integrity.
Crested Porcupine Waste Management: Unique Strategies for Survival and Cleanliness
You may want to see also
Explore related products
Location: Typically mounted on the turbocharger housing, connected via a hose
The waste gate on a 60 series engine is a critical component for managing turbocharger boost pressure, and its location is key to its function. Typically mounted on the turbocharger housing, this external waste gate is connected via a hose to the turbo’s exhaust inlet. This positioning allows it to divert excess exhaust gases away from the turbine wheel, preventing over-boost and protecting the engine from potential damage. Unlike internal waste gates, which are integrated into the turbocharger, the external design on 60 series engines offers easier access for maintenance and adjustments, making it a practical choice for both stock and modified setups.
Understanding the waste gate’s location is essential for troubleshooting or upgrading your 60 series turbo system. When mounted on the turbocharger housing, the waste gate’s actuator arm and hose must be inspected regularly for leaks, cracks, or signs of wear. A faulty connection can lead to inconsistent boost control, resulting in power loss or even engine strain. For DIY enthusiasts, locating the waste gate is straightforward—follow the hose from the turbo’s exhaust inlet to the external housing. This accessibility simplifies tasks like replacing the actuator spring or adjusting boost pressure, ensuring optimal performance without specialized tools.
Comparing the 60 series waste gate’s location to other designs highlights its advantages. Internal waste gates, while compact, are harder to access and often require turbo disassembly for repairs. In contrast, the external mounting on the turbocharger housing allows for quick adjustments, such as swapping springs to fine-tune boost levels. For example, upgrading to a stiffer spring can increase boost pressure for towing or off-road applications, while a softer spring may improve low-end response. This flexibility makes the 60 series waste gate location ideal for drivers seeking both reliability and customization.
Finally, proper installation and alignment of the waste gate on the turbocharger housing are crucial for longevity. Ensure the hose connecting the waste gate to the turbo is securely clamped and free from kinks, as restrictions can disrupt exhaust flow. When adjusting the waste gate, use a boost controller to monitor pressure levels, aiming for the manufacturer’s recommended range (typically 7–12 psi for stock 60 series engines). Regularly cleaning the waste gate’s external housing and inspecting the actuator rod for binding will prevent premature failure. By mastering the specifics of its location, you’ll maintain a balanced turbo system that delivers power efficiently and safely.
High Biological Value Proteins: Waste Production Impact Explained
You may want to see also
Explore related products
Operation: Opens to bypass exhaust gases, reducing turbo speed and boost pressure
The waste gate on a 60 series engine is a critical component in managing turbocharger performance, ensuring the system operates within safe and efficient parameters. Its primary function is to regulate exhaust gas flow, directly influencing turbo speed and boost pressure. When the waste gate opens, it diverts a portion of the exhaust gases away from the turbocharger, effectively reducing the energy driving the turbine. This mechanism is essential for preventing overboost conditions, which can lead to engine damage or reduced efficiency. Understanding this operation is key to appreciating the waste gate’s role in maintaining optimal turbo performance.
Consider the waste gate as a pressure relief valve for your turbo system. When boost pressure exceeds a predetermined threshold—typically around 14-16 psi for a 60 series engine—the waste gate actuates, bypassing excess exhaust gases. This action immediately reduces the turbo’s rotational speed, thereby lowering boost pressure to a safer level. For instance, in a Toyota 1HZ engine, the waste gate’s actuation is controlled by a spring-loaded valve, calibrated to open at specific pressure levels. This precise control ensures the engine remains within its designed operating range, even under heavy load or high-altitude conditions.
From a practical standpoint, monitoring waste gate operation is crucial for diagnosing turbo-related issues. If the waste gate fails to open, excessive boost pressure can cause turbo overspeed, leading to premature wear or failure. Conversely, a waste gate that remains open too frequently can result in underboost, reducing power output. To troubleshoot, inspect the waste gate actuator for leaks or damage, and ensure the control solenoid (if electronically actuated) functions correctly. Regular maintenance, such as cleaning the waste gate and checking for carbon buildup, can prevent operational failures and extend the life of the turbo system.
Comparing the waste gate to other turbo control methods highlights its simplicity and reliability. Unlike variable geometry turbos, which adjust turbine geometry to control boost, the waste gate uses a straightforward bypass mechanism. This design makes it less complex and more cost-effective, ideal for robust applications like the 60 series engines found in heavy-duty vehicles. However, it’s important to note that the waste gate’s effectiveness depends on proper calibration and maintenance. For optimal performance, ensure the waste gate’s pressure setting aligns with your engine’s tuning, especially if modifications have been made to increase power output.
In conclusion, the waste gate’s operation—opening to bypass exhaust gases and reduce turbo speed—is a fundamental aspect of turbocharger management in 60 series engines. By understanding its function, mechanics, and maintenance requirements, you can ensure your turbo system operates efficiently and reliably. Whether diagnosing issues or optimizing performance, the waste gate’s role is indispensable in balancing power and safety in turbocharged engines.
Shielding Yourself from Martial Waste: Essential Safety and Disposal Tips
You may want to see also
Explore related products
Types: Internal (integrated) or external (separate unit) wastegate designs for 60 series
The Toyota 60 series Land Cruiser, a legendary off-road vehicle, often relies on turbocharging for enhanced performance. A critical component in this setup is the wastegate, which regulates boost pressure to prevent engine damage. Wastegate designs for the 60 series fall into two primary categories: internal (integrated) and external (separate unit). Each type offers distinct advantages and trade-offs, influencing not only performance but also installation complexity and maintenance.
Internal wastegates, integrated directly into the turbocharger housing, are favored for their compactness and simplicity. This design minimizes the need for additional plumbing, making it a popular choice for stock or mildly modified 60 series engines. The internal wastegate operates by diverting exhaust gases away from the turbine wheel when boost pressure reaches a predetermined threshold, typically controlled by a spring-loaded valve. For instance, a common internal wastegate on a 60 series might be set to open at 7 psi, ensuring the engine remains within safe operating limits. However, this integration limits adjustability, as modifying the spring pressure often requires disassembling the turbocharger.
In contrast, external wastegates are standalone units mounted separately from the turbocharger, connected via exhaust and vacuum lines. This design offers superior control and flexibility, making it ideal for high-performance or heavily modified 60 series builds. External wastegates allow for precise tuning of boost pressure through adjustable actuators, which can be fine-tuned without altering the turbocharger itself. For example, an external wastegate can be adjusted to maintain a consistent 12 psi of boost across varying driving conditions, optimizing power delivery. However, this setup requires more complex installation, including additional welding and routing of hoses, which can increase costs and labor.
When choosing between internal and external wastegates for a 60 series, consider the intended use of the vehicle. For daily driving or light off-roading, an internal wastegate provides a cost-effective and reliable solution. Conversely, for competitive racing or extreme off-road applications, an external wastegate offers the performance and adjustability needed to maximize engine output. Proper installation and regular maintenance, such as inspecting for leaks and ensuring actuator functionality, are crucial regardless of the type chosen.
In summary, the decision between internal and external wastegates for a 60 series hinges on balancing performance needs with practicality. Internal designs excel in simplicity and space efficiency, while external units provide unmatched control and scalability. By understanding these differences, owners can select the wastegate that best aligns with their vehicle’s demands and their own mechanical expertise.
Mastering Copy-Paste: Avoid Wasting Time on Windows Efficiently
You may want to see also
Explore related products
Maintenance: Regular inspection for leaks, sticking, or wear to ensure proper function
A wastegate on a 60 series engine, such as those found in Toyota Land Cruisers, is a critical component in the turbocharging system. It regulates boost pressure by diverting excess exhaust gases away from the turbine wheel, preventing overboost and protecting the engine. However, its effectiveness hinges on meticulous maintenance. Regular inspections are not just recommended—they are essential to catch issues like leaks, sticking, or wear before they escalate into costly repairs or performance losses.
Step-by-Step Inspection Process: Begin by visually examining the wastegate for signs of exhaust leaks, which often manifest as black soot around the actuator or flange connections. Next, check the actuator arm for sticking by manually moving it through its full range of motion; it should move freely without binding. Inspect the diaphragm for tears or cracks, as even minor damage can lead to improper boost control. Finally, assess the wastegate’s hinge mechanism for wear or corrosion, ensuring it opens and closes smoothly. These steps should be performed every 10,000 miles or sooner if symptoms like erratic boost levels or unusual noises arise.
Cautions and Common Pitfalls: Overlooking minor leaks or assuming a wastegate is functioning correctly without testing can lead to premature turbo failure or engine damage. Avoid using excessive force when inspecting the actuator arm, as this can exacerbate sticking issues. Additionally, be wary of aftermarket wastegate springs, which may not match the original specifications and can cause overboost or underboost conditions. Always consult the manufacturer’s torque specifications when tightening flange bolts to prevent warping or cracking.
Practical Tips for Longevity: To extend the life of your wastegate, incorporate a periodic cleaning routine to remove carbon buildup, which can hinder movement. Lubricate the hinge mechanism sparingly with high-temperature grease, but avoid over-application, as excess can attract debris. For vehicles operating in harsh environments, such as dusty or salty conditions, consider installing a protective cover over the wastegate to minimize corrosion. Lastly, invest in a boost gauge to monitor pressure levels, providing early warning of potential wastegate failure.
Human Consumption, Waste, and Their Role in Global Warming
You may want to see also
Frequently asked questions
A wastegate is a component in the turbocharger system of a 60 series engine that regulates boost pressure by bypassing excess exhaust gases around the turbine wheel, preventing overboost and protecting the engine.
The wastegate on a 60 series opens and closes based on exhaust pressure, controlled by a spring or an actuator. When boost pressure reaches a set limit, the wastegate diverts exhaust gases away from the turbo, reducing turbine speed and maintaining safe boost levels.
Common signs include excessive smoke, loss of power, turbo lag, or unusual noises from the turbocharger. Overboost or underboost conditions may also indicate a malfunctioning wastegate.
Yes, upgrading to a larger or more efficient wastegate can improve boost control and performance, especially in high-power applications. However, it should be paired with proper tuning and supporting modifications for optimal results.
