When considering what to place under a waste heat sink, it's essential to focus on materials that can efficiently dissipate and manage the excess heat generated by industrial processes or machinery. Common options include thermal interface materials like thermal pads or pastes, which improve heat transfer between the heat sink and the surface below. Additionally, insulating materials such as ceramic or silicone pads can be used to protect sensitive components or surfaces from heat damage. For more robust applications, metal plates or heat spreaders made of aluminum or copper can enhance heat distribution and durability. The choice depends on factors like the heat intensity, space constraints, and the specific requirements of the system being cooled.
Explore related products
What You'll Learn
- Cooling Methods: Air, liquid, or phase-change materials to dissipate heat efficiently
- Material Selection: High thermal conductivity materials like aluminum, copper, or graphite
- Heat Exchanger Design: Optimized fins, tubes, or plates for maximum heat transfer
- Insulation Techniques: Preventing heat loss with thermal barriers or coatings
- Integration Systems: Connecting waste heat sinks to industrial or automotive systems
Cooling Methods: Air, liquid, or phase-change materials to dissipate heat efficiently
Effective heat dissipation under a waste heat sink hinges on selecting the right cooling method: air, liquid, or phase-change materials. Each has distinct advantages and limitations, making them suitable for specific applications. Air cooling, the simplest and most cost-effective, relies on convection to transfer heat through fins and fans. It’s ideal for low to moderate heat loads but struggles with high-density thermal management. For instance, a standard CPU cooler with aluminum fins and a 120mm fan can handle up to 150W of heat, but beyond that, efficiency drops significantly.
Liquid cooling, in contrast, offers superior thermal conductivity by circulating coolant through a closed loop. This method excels in high-heat scenarios, such as industrial machinery or overclocked GPUs, where it can dissipate up to 500W or more. A typical setup includes a radiator, pump, and reservoir, with coolant flowing at 1–2 liters per minute. However, it requires maintenance to prevent leaks and ensure optimal performance. For example, a 240mm liquid cooler can reduce CPU temperatures by 15–20°C compared to air cooling under heavy loads.
Phase-change materials (PCMs) represent a cutting-edge solution, absorbing and storing heat during phase transitions (e.g., solid to liquid). They’re particularly effective in applications with intermittent heat generation, such as electronics in vehicles or renewable energy systems. PCMs like paraffin wax or salt hydrates can store 200–300 kJ/kg of thermal energy, providing a buffer during peak heat loads. However, they require careful integration to manage expansion and ensure consistent thermal contact with the heat source.
Choosing the right method depends on heat density, space constraints, and maintenance tolerance. Air cooling is straightforward but limited; liquid cooling is powerful but complex; and PCMs offer unique advantages for specific use cases. For instance, a server room might combine liquid cooling for high-performance racks with PCM-based solutions for backup systems. Pairing these methods—such as using liquid cooling for primary dissipation and PCMs for thermal storage—can optimize efficiency in demanding environments.
Practical implementation requires careful design. Air-cooled systems need adequate airflow, with fans operating at 1,000–2,000 RPM for balance between cooling and noise. Liquid systems should use coolant with a thermal conductivity of 0.5–0.6 W/m·K and be checked quarterly for leaks. PCM integration demands materials with melting points matching the operating temperature range, such as 60–80°C for electronics. By tailoring the method to the application, waste heat sinks can achieve efficient, reliable thermal management.
Where Does Radioactive Waste Go? US Storage Sites Explained
You may want to see also
Explore related products
Material Selection: High thermal conductivity materials like aluminum, copper, or graphite
High thermal conductivity materials are essential for maximizing the efficiency of waste heat sinks, as they facilitate rapid heat transfer away from the source. Among the top contenders are aluminum, copper, and graphite, each offering unique advantages. Aluminum, with a thermal conductivity of approximately 205 W/m·K, is lightweight and cost-effective, making it ideal for applications where weight and budget are critical. Copper, boasting a thermal conductivity of around 385 W/m·K, outperforms aluminum in heat dissipation but comes at a higher cost and density. Graphite, particularly in its pyrolytic form, offers anisotropic thermal conductivity, excelling in planar heat spreading with values up to 1700 W/m·K in-plane, though it is less effective in the through-plane direction.
When selecting between these materials, consider the specific demands of your application. For instance, in high-performance electronics cooling, copper’s superior thermal conductivity often justifies its higher cost. However, in aerospace or automotive systems where weight reduction is paramount, aluminum becomes the preferred choice. Graphite, meanwhile, shines in scenarios requiring thin, lightweight heat spreaders, such as in LED lighting or battery thermal management. Pairing these materials with thermal interface materials (TIMs) like thermal pastes or pads can further enhance heat transfer efficiency, reducing thermal resistance at interfaces.
A comparative analysis reveals trade-offs in cost, weight, and performance. Copper’s high thermal conductivity makes it the gold standard for critical applications, but its density (8.96 g/cm³) and price can be limiting factors. Aluminum, at a density of 2.7 g/cm³ and a fraction of copper’s cost, strikes a balance between performance and practicality. Graphite, while lightweight and thermally efficient in specific directions, may require additional engineering to address its mechanical fragility and directional conductivity. For example, a 1 mm thick copper plate can dissipate heat 80% more effectively than an equivalent aluminum plate, but at twice the weight and three times the cost.
Practical implementation requires attention to manufacturing and assembly considerations. Aluminum and copper are easily machined and compatible with standard fabrication techniques, whereas graphite may require specialized handling to avoid cracking or delamination. Surface treatments, such as anodizing aluminum or nickel-plating copper, can improve corrosion resistance and thermal interface compatibility. For instance, a 0.5 mm layer of anodized aluminum can enhance durability without significantly impacting thermal performance, adding minimal cost to the overall system.
In conclusion, material selection for waste heat sinks hinges on balancing thermal performance, cost, and application-specific constraints. Aluminum offers affordability and lightweight design, copper delivers unmatched thermal efficiency, and graphite provides directional heat spreading in compact systems. By evaluating these materials against your project’s requirements and leveraging complementary technologies like TIMs and surface treatments, you can optimize heat dissipation while minimizing trade-offs.
Incinerator Filters: Are They Effective in Reducing Waste Plant Emissions?
You may want to see also
Explore related products

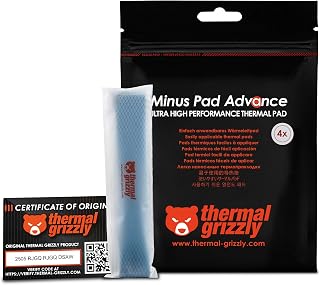

![A ADWITS [ 6-Pack ] Thermal Conductive Silicone Pads, Soft Safe Simple to Apply for SSD CPU GPU LED IC Chipset Cooling -Blue](https://m.media-amazon.com/images/I/61glfYyGgDL._AC_UL320_.jpg)
