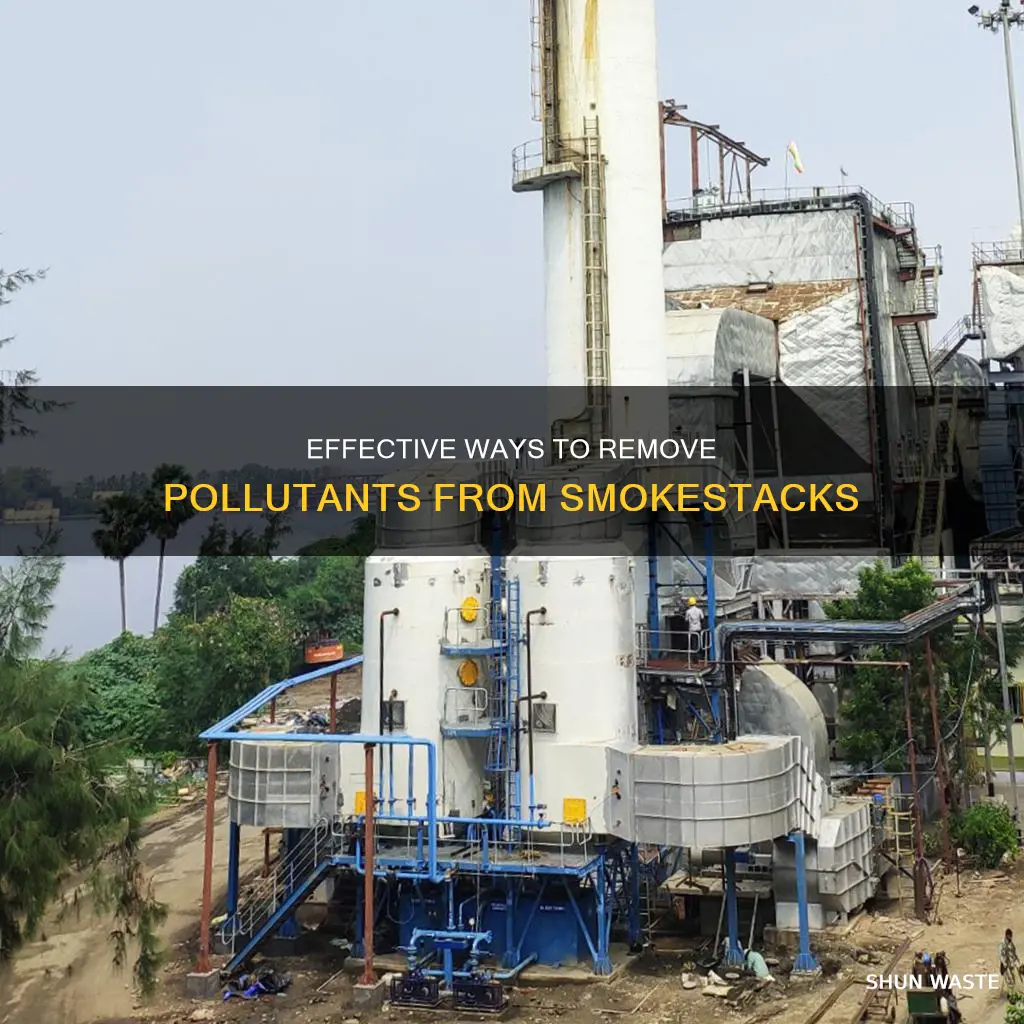

Smokestacks are a significant source of air pollution, releasing harmful particles and gases into the atmosphere. To mitigate this issue, various technologies and control measures can be employed to reduce or eliminate these emissions. This paragraph will explore the different additions to smokestacks that aid in the removal of pollutants, contributing to improved air quality and a cleaner environment. From electrostatic precipitators to fabric filters, and from venturi scrubbers to settling chambers, each of these methods plays a crucial role in capturing and treating pollutants before they are released into the air.
| Characteristics | Values |
|---|---|
| Electrostatic precipitators | Use magnetic attraction to draw smaller sized pollutants out of the emissions stream |
| Emission gases pass through a specially designed chamber that first charges the pollutants, which causes them to be magnetically drawn to specially charged plates | |
| Can remove small particles with up to 99% efficiency | |
| Fabric filters | Remove pollutants as the emission stream passes through porous fabric designed to remove fine particles |
| Must be durable and withstand excessive heat temperatures inside a smokestack | |
| Venturi scrubbers | Mix water into the emission gas in specially designed tubes |
| First, velocity and pressure are increased to combine pollutant particulates with water, then mixing processes are stopped | |
| Cyclones | Use inertia to remove large particles |
| Settling chambers | Remove large particles of pollutants from emissions |
| Gas is forced through a settling chamber to help remove particles that have accumulated inside smokestacks | |
| The velocity of gaseous emissions is slowed down as it moves through the chamber, whereby larger-sized particles drop out into a hopper | |
| Incinerator | Help moderate the emission of waste gases into the air |
| Activated charcoal | Help absorb gases |
| Wet scrubbers | Effective for the removal of water-soluble mercury species |
| Dry scrubbers | Use injection of alkaline media such as hydrated lime or soda ash (sodium carbonate) |
Explore related products
What You'll Learn
- Install electrostatic precipitators to use magnetic attraction to draw out smaller pollutants
- Use fabric filters, or baghouses, to remove fine particles from emissions
- Venturi scrubbers mix water with emission gas to remove pollutant particulates
- Cyclones remove large particles but are ineffective with smaller pollutants
- Settling chambers slow the velocity of gaseous emissions to remove larger particles
Install electrostatic precipitators to use magnetic attraction to draw out smaller pollutants
Smokestacks emit harmful pollutants, including particulate matter and gases, which contribute to air pollution and have adverse effects on human health and the environment. To mitigate these issues, electrostatic precipitators (ESPs) can be installed as a particle control system.
ESPs are devices that use electrical charges to remove impurities, such as solid particles or liquid droplets, from the air or other gases in smokestacks. They are highly effective at reducing particle pollution, capable of capturing fine particles smaller than 2.5 microns in diameter. This is particularly important as these smaller particles, if released, can be inhaled deeply into the lungs, causing serious health issues.
The working of an ESP can be understood in a few steps. Firstly, as the exhaust gases or smoke pass through the ESP, they are charged by the device. This charging process is facilitated by the discharge electrodes, which are thin copper wires that generate a strong electric field. This electric field ionizes the particles in the gas, giving them a negative charge.
Secondly, these negatively charged particles are then attracted to the positively charged collecting plates or wires within the ESP. This attraction is based on the principle of magnetic forces, where opposites attract. The particles adhere to these plates, and the excess electrons on the plates are removed.
Finally, once enough particles have accumulated on the collecting plates, they are dislodged through various methods. This includes using rapper coils, which apply a shearing force to the plates, creating vibrations that loosen even stubborn particles. The particles then fall into a hopper, a pyramidal container, at the bottom of the ESP. The hopper collects the particles safely, and they can then be disposed of or recycled.
Overall, ESPs are an effective solution for removing smaller-sized pollutants from smokestacks, utilizing magnetic attraction to capture and collect these harmful particles.
Chemical Energy and Pollution: What's the Connection?
You may want to see also
Explore related products
Use fabric filters, or baghouses, to remove fine particles from emissions
To remove fine particles from emissions, fabric filters, also known as baghouses, are used. These filters are made of fabric that can withstand high temperatures and corrosive chemical characteristics. The fabric is designed to capture fine particles as the emission stream passes through it. The fabric is usually in the form of cylindrical bags, but it can also be in the form of cartridges constructed of fabric, sintered metal, or porous ceramic.
The use of fabric filters in baghouses is an effective way to remove fine particles from emissions. The filters are designed to collect small micrometer and sub-micrometer particles, which are then deposited on the fabric material. This process is known as inertial collection, where dust particles strike the fibers placed perpendicular to the gas-flow direction instead of following the gas stream. The fabric filter's ability to collect these fine particles is due to the accumulated dust cake, which forms a layer on the surface of the bags, providing a surface for dust collection.
Baghouses are designed to accommodate a range of gas flows, and the gas volumetric flow rate is an important factor in their operation. An increase in gas flow rates leads to an increase in operating pressure drop and air-to-cloth ratio, resulting in more frequent cleanings and higher particle velocity, which shortens the bag's life. Therefore, it is crucial to consider the pressure drop, filter drag, and air-to-cloth ratio when designing and operating baghouses.
The performance of baghouses can be monitored through various indicators, including particulate matter outlet concentration, opacity, pressure differential, inlet temperature, temperature differential, exhaust gas flow rate, and cleaning mechanism operation. These indicators help ensure that the baghouses are functioning effectively and efficiently in removing fine particles from emissions.
Additionally, advancements in fabric filter technology have led to the development of hydroentangled felts, which offer longer filter life and improved surface loading, resulting in lower pressure drop and extended baghouse life. The use of coatings or membranes on the fabric surface is another method to improve the efficiency of fabric dust filters, enhancing the filtration process and preventing blinding.
Ocean Pollution: Solved or Still a Problem?
You may want to see also
Explore related products
Venturi scrubbers mix water with emission gas to remove pollutant particulates
Venturi scrubbers are a type of air control system and air pollution control technology, also known as wet scrubbers, that can be added to smokestacks to help remove pollutant particulates. They are the most widely used scrubbers due to their open construction, which allows them to remove most particles without plugging or scalding.
Venturi scrubbers work by mixing water with emission gas in specially designed tubes. The velocity and pressure of the gas stream are increased to combine the pollutant particulates with the water. The turbulence that occurs in the throat area of the scrubber causes the particles to contact the wet droplets and be collected. The liquid containing the particulates then separates from the gas by gravity.
The high inlet gas velocities in a Venturi scrubber result in a very short contact time between the liquid and gas phases, which limits gas absorption. However, Venturi scrubbers are still effective for removing both particulate and gaseous pollutants, especially when used in conjunction with other technologies. They are particularly useful for industries with high inlet gas temperatures, such as cement kilns and steel industry boilers.
Venturi scrubbers offer several advantages over other dust collection equipment, such as their small size, ease of maintenance, and ability to handle high-temperature gas streams. They can also be used to remove grease and other sticky particulate matter from industrial exhaust. However, it is important to note that the use of Venturi scrubbers can lead to the development of wastewater, which must be properly treated before disposal.
Air Pollutants: Sources and Their Impact on Our Atmosphere
You may want to see also
Explore related products
Cyclones remove large particles but are ineffective with smaller pollutants
Smokestacks emit harmful pollutants, including particulate matter and gases such as carbon monoxide and sulfur dioxide. To mitigate this issue, various technologies are employed to capture pollutants before their release into the atmosphere. One such technology is the cyclone, which uses inertia to separate and remove large particles from the flue gas stream.
Cyclones, also known as cyclone separators, are centrifugal separators that utilise centrifugal force to remove particulate matter from contaminated gases. The incoming gas enters a chamber and is forced into a spiral motion, creating a double vortex. The lighter gases have less inertia and easily follow the spiral motion, while the larger particles, due to their greater inertia, are pushed to the outer edges and walls of the chamber, eventually falling into a hopper at the bottom. This process effectively removes large particles, preventing them from being released into the atmosphere.
While cyclones are efficient and cost-effective for capturing large particles, they have limitations when it comes to smaller pollutants. Standard cyclones are generally designed to remove particles larger than 10 micrometers in diameter, with some high-efficiency cyclones capable of capturing particles as small as 2.5 micrometers. However, their effectiveness decreases significantly for extremely fine particles, and they are not suitable for particles smaller than 2.5 micrometers.
To address the issue of smaller pollutants, other technologies are often used in conjunction with cyclones. Electrostatic precipitators, for example, use electrical charges to attract and capture small particles with high efficiency. Fabric filters, also known as baghouses, employ porous fabric to trap fine particles, although they require the gases to be cooled before entering. Venturi scrubbers mix water with the emission gas to capture particulate matter, but they can generate wastewater that requires treatment.
In summary, cyclones are effective for removing large particles from smokestack emissions due to their inertia and centrifugal forces. However, they are not as efficient for smaller pollutants, and other technologies, such as electrostatic precipitators, fabric filters, and venturi scrubbers, are necessary to ensure the removal of a broader range of particle sizes and achieve comprehensive pollution control.
The Citarum River: A Polluted Waterway in Indonesia
You may want to see also
Explore related products
Settling chambers slow the velocity of gaseous emissions to remove larger particles
There are several technologies that can be used to remove pollutants from smokestack emissions. These include electrostatic precipitators, fabric filters, venturi scrubbers, cyclones, and settling chambers. Settling chambers are widely used in power plants to remove fly ash from flue gases and reduce emissions. They are also used to control dust in cement production.
The core principle behind settling chambers is gravity settling, which leverages the natural force of gravity to separate particles from a flowing gas stream. The chamber's design incorporates a series of screens, baffles, or other flow control devices that effectively slow down the gas flow. This reduction in velocity allows particles to fall out of suspension. The heavier the particle, the more readily it will settle out of the airstream.
The effectiveness of a settling chamber depends on its design and the control of gas flow. Key aspects include chamber dimensions, flow velocity reduction, and gas inlet and outlet design. Computational models and simulations can be used to predict the performance of settling chambers by considering factors such as particle size distribution, gas flow rate, and chamber geometry.
Settling chambers are most effective for removing large and dense particles. They offer low capital and energy costs, excellent reliability, and low pressure drop through the device. However, they have relatively low PM collection efficiencies for particles smaller than 50 micrometers and require a large physical space. Therefore, they are often used in conjunction with other technologies to improve air quality.
Pollution's Impact: Understanding Aquatic Dead Zones
You may want to see also
Frequently asked questions
Some ways to remove pollutants from smokestacks include using electrostatic precipitators, fabric filters, venturi scrubbers, cyclones, settling chambers, and scrubbers.
Electrostatic precipitators use electrical charges or magnetic attraction to remove particles from smokestacks. They are highly efficient, with a success rate of up to 99%.
Venturi scrubbers mix water with emission gas to remove particles. They are effective but can produce wastewater that requires further treatment.
Cyclones are machines that mimic the motion of natural cyclones to force larger-sized particles to the bottom and allow clean gases to exit from the top. They are cost-efficient and low-maintenance but only suitable for larger particles.
