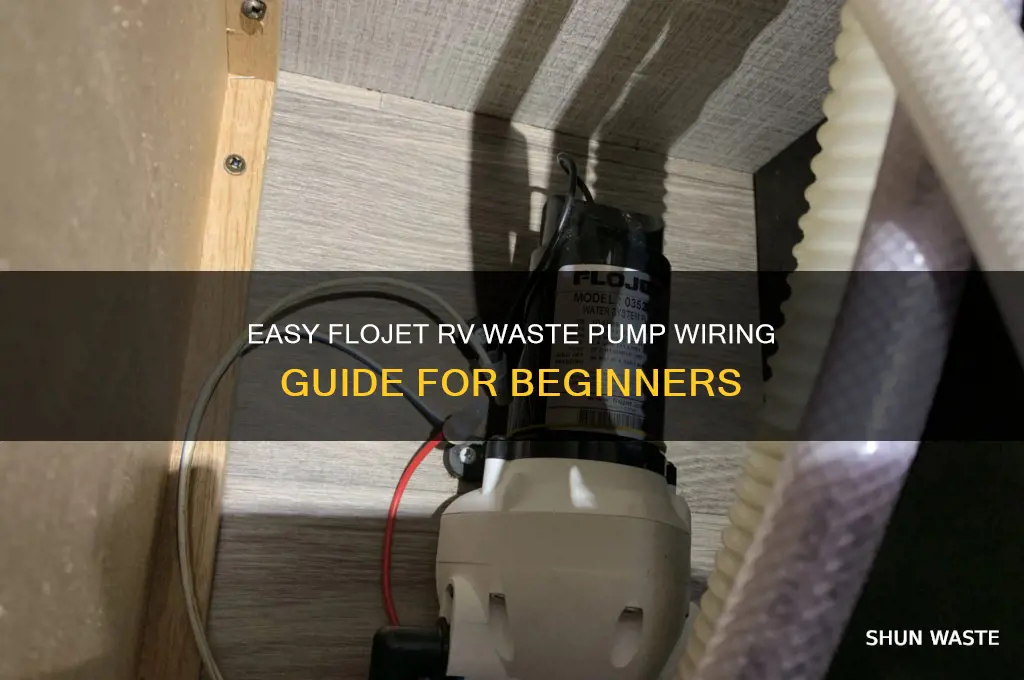

Wiring a Flojet RV waste pump is a crucial task for maintaining an efficient and functional RV waste management system. This process involves connecting the pump to a power source, ensuring proper grounding, and integrating it with the RV’s waste tank setup. To begin, gather the necessary tools and materials, including wire connectors, a voltage tester, and the pump’s wiring diagram. Start by identifying the pump’s power leads and connecting them to the RV’s 12-volt power supply, typically through a fuse or circuit breaker for safety. Ensure all connections are secure and insulated to prevent shorts or malfunctions. Additionally, test the pump’s operation after wiring to confirm it functions correctly. Proper installation not only ensures the pump operates reliably but also extends its lifespan, making it an essential skill for RV owners.
| Characteristics | Values |
|---|---|
| Power Source | 12V DC |
| Amperage Draw | 7.5 Amps (typical) |
| Wire Gauge | 14-16 AWG (recommended) |
| Fuse Rating | 10 Amps (inline fuse recommended) |
| Switch Type | SPST (Single Pole, Single Throw) |
| Wire Connections | Red (Positive) to Battery Positive, Black (Negative) to Battery Negative |
| Pump Activation | Via switch or direct connection to battery (with fuse) |
| Grounding | Ensure proper grounding to prevent electrical issues |
| Wiring Diagram | Typically included with pump or available online |
| Safety Precautions | Disconnect battery before wiring, use insulated tools, avoid short circuits |
| Additional Components | Inline fuse holder, switch (if not using direct connection), wire connectors |
| Compatibility | Designed for RV waste tanks, check model for specific compatibility |
| Installation Location | Near waste tank, ensuring wires are protected from moisture and damage |
| Maintenance | Regularly inspect wires for wear, corrosion, or damage |
| Troubleshooting | Check fuse, connections, and switch if pump fails to operate |
Explore related products
What You'll Learn
- Gather Tools & Materials: Wire cutters, connectors, Flojet pump, power source, and appropriate gauge wiring
- Locate Power Source: Identify 12V DC power supply in RV for pump connection
- Connect Wires to Pump: Attach positive and negative wires to pump terminals securely
- Secure Connections: Use waterproof connectors and electrical tape to protect wiring from moisture
- Test the System: Power on pump to ensure proper function and check for leaks
Gather Tools & Materials: Wire cutters, connectors, Flojet pump, power source, and appropriate gauge wiring
Before you begin wiring your Flojet RV waste pump, it's crucial to assemble the right tools and materials. This step ensures efficiency, safety, and a professional finish. Start by gathering wire cutters, which will allow you to trim and strip wires cleanly without damaging the insulation. Pair these with connectors—specifically butt connectors or crimp terminals—to secure wire joints reliably. The Flojet pump itself is the centerpiece, so ensure it’s compatible with your RV’s system and in good working condition. A stable power source, such as a 12V battery or direct RV power supply, is essential for testing and operation. Lastly, select appropriate gauge wiring, typically 14-16 AWG for RV applications, to handle the pump’s amperage without overheating.
Analyzing the tools and materials reveals their interconnected roles. Wire cutters, for instance, aren’t just for cutting—they also strip wire ends, a task often overlooked until you’re mid-project. Connectors, while small, are critical for preventing loose connections that could lead to shorts or failures. The Flojet pump’s specifications dictate the wiring gauge and power source requirements, so cross-reference its manual to avoid mismatches. For example, a pump drawing 5-7 amps requires thicker wiring than one drawing 3 amps. This attention to detail prevents common pitfalls like blown fuses or underperformance.
From a practical standpoint, organizing your workspace with these materials saves time and frustration. Lay out tools in the order you’ll use them: wire cutters first, followed by connectors, then the pump and wiring. If working in an RV, ensure the area is well-lit and free of debris. A tip for beginners: label wires before cutting to avoid confusion later. For instance, mark the positive and negative leads with tape or a marker. This simple step can prevent hours of troubleshooting.
Comparatively, DIY wiring projects often fail due to inadequate preparation. Skipping the right tools or using mismatched materials leads to subpar results. For example, using household wire instead of RV-rated wiring can result in melting insulation or fire hazards. Similarly, ignoring the pump’s power requirements might overload your RV’s electrical system. By investing in quality tools and materials upfront, you not only ensure a safer installation but also extend the lifespan of your Flojet pump.
In conclusion, gathering the right tools and materials is the foundation of a successful Flojet RV waste pump wiring project. Wire cutters, connectors, the pump itself, a reliable power source, and appropriate gauge wiring are non-negotiable. Each component plays a specific role, and their proper selection and use prevent errors and ensure longevity. Treat this step as a checklist, and you’ll set the stage for a smooth, professional installation.
