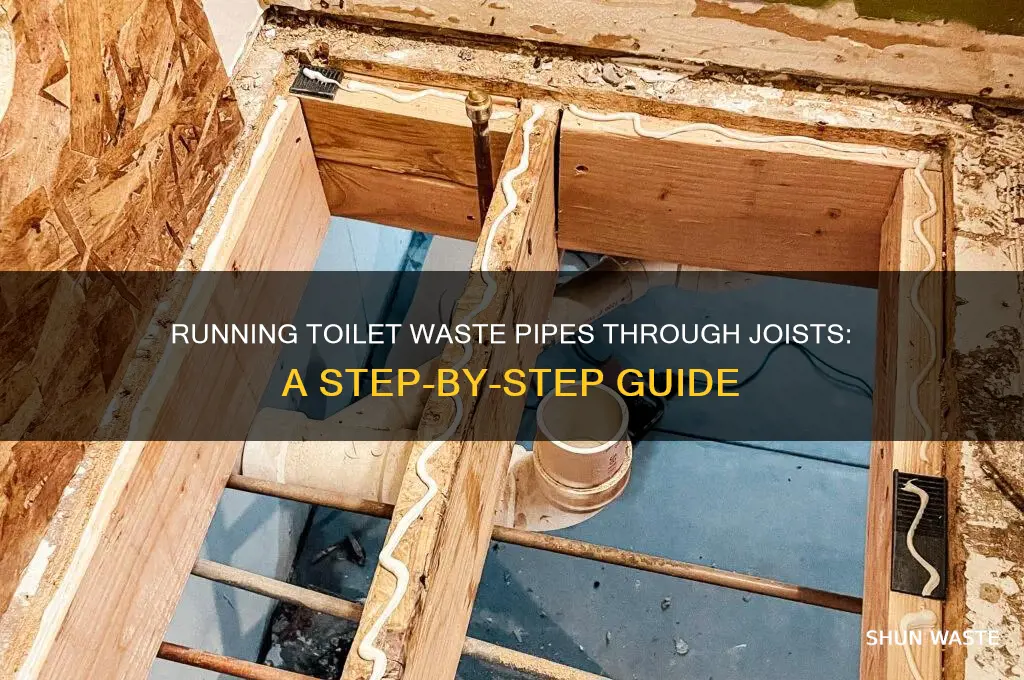

Running a toilet waste pipe through joists requires careful planning and execution to ensure proper drainage and structural integrity. Begin by identifying the optimal route for the pipe, ensuring it aligns with the toilet’s location and slopes downward toward the main drain stack at a minimum gradient of 1/4 inch per foot. Use a hole saw or reciprocating saw to cut precise openings in the joists, ensuring the holes are slightly larger than the pipe diameter to allow for movement and prevent damage. Secure the pipe with appropriate supports, such as hangers or straps, to maintain the correct slope and prevent sagging. Always check local building codes for specific requirements, and consider using a vented system to avoid blockages and ensure efficient waste flow. Proper insulation and sealing around the joist openings can also prevent air leaks and maintain structural stability.
| Characteristics | Values |
|---|---|
| Pipe Material | PVC (most common), ABS |
| Pipe Diameter | 3 inches (standard for toilets) |
| Slope | 1/4 inch per foot (minimum) towards the stack |
| Ventilation | Must be properly vented to prevent siphoning and sewer gases |
| Support | Secure pipe every 4-6 feet with hangers or straps |
| Hole Size in Joists | Slightly larger than pipe diameter (to allow for movement and insulation) |
| Notching Joists | Avoid notching more than 1/3 of the joist depth to maintain structural integrity |
| Insulation | Insulate pipe in unconditioned spaces to prevent condensation |
| Code Compliance | Follow local plumbing codes for specific requirements |
| Tools Needed | Reciprocating saw, hole saw, pipe cutter, hacksaw, wrenches, tape measure, level |
| Sealant | Use plumber’s putty or silicone sealant around penetrations to prevent air leaks |
| Clearance | Maintain proper clearance from electrical wires and other utilities |
| Access | Ensure pipe is accessible for future maintenance or repairs |
| Alignment | Keep pipe straight and aligned with the stack to ensure proper flow |
| Testing | Test for leaks after installation by filling the pipe with water and checking for drips |
Explore related products
What You'll Learn
Planning the Pipe Route
Running a toilet waste pipe through joists demands precision to avoid structural damage and ensure proper drainage. Begin by identifying the shortest, most direct path from the toilet to the main stack or soil pipe. Measure twice to confirm the route, considering both horizontal and vertical distances. Use a stud finder to locate joists and mark their positions clearly. Remember, the pipe’s slope is critical—aim for a 1/4-inch drop per foot to maintain flow and prevent blockages.
Next, analyze the joists’ orientation and spacing. If the joists run parallel to your desired pipe route, you’ll need to notch them. However, notching should never exceed 1/3 of the joist’s depth to preserve structural integrity. For perpendicular joists, consider drilling holes instead. Use a hole saw with a diameter slightly larger than the pipe to ensure a snug fit without excessive friction. Always check local building codes for specific requirements regarding notching and drilling.
When planning, account for obstacles like electrical wiring, plumbing lines, or HVAC ducts. Use a multi-scanner tool to detect hidden utilities and adjust the route accordingly. If rerouting isn’t feasible, consult a professional to avoid hazardous intersections. Additionally, ensure the pipe aligns with the toilet’s flange and the main stack’s entry point. Misalignment can lead to leaks or inefficient drainage, undermining the entire installation.
Finally, choose the right materials for the job. Schedule 40 PVC pipe is a common choice for its durability and ease of installation. Pair it with 45-degree or 90-degree fittings to navigate turns smoothly. Secure the pipe with hangers every 4 to 6 feet to prevent sagging. Test the slope with a level before finalizing the layout. A well-planned route not only simplifies installation but also minimizes the risk of future issues, saving time and money in the long run.
Creative DIY: Crafting a Sturdy Waste Basket Using Paper Easily
You may want to see also
Explore related products
Drilling Holes in Joists
The structural integrity of the joists is paramount. Avoid drilling near the edges or ends of the joists, as this weakens their load-bearing capacity. Instead, drill holes in the center third of the joist, where the wood is strongest. If multiple holes are necessary, space them at least 2 inches apart to maintain the joist’s stability. For larger pipes or multiple runs, consider using a single, larger hole with a protective sleeve to minimize wood removal while ensuring a secure fit.
Building codes often dictate the size and placement of holes in joists to maintain structural safety. Check local regulations before drilling, as some areas require permits or inspections for such modifications. As a rule of thumb, holes should not exceed 1/3 of the joist’s depth or width. If the hole compromises the joist’s strength, install a steel plate or sister joist alongside the original to reinforce the structure. Always prioritize safety over convenience to avoid long-term structural issues.
Practical tips can streamline the process. Use a pilot hole to guide the hole saw and reduce the risk of drifting. Apply masking tape around the drill area to prevent splintering, especially when working with older or softer wood. If the pipe runs through multiple joists, ensure consistent alignment by using a straight edge or laser level. Finally, seal any gaps between the pipe and joist with fire-rated caulk to maintain fire safety standards and prevent pests from entering the void.
Testing Deer for Chronic Wasting Disease: Methods and Procedures
You may want to see also
Explore related products
Choosing the Right Pipe Size
Selecting the correct pipe size is critical for ensuring efficient waste flow and preventing blockages when running a toilet waste pipe through joists. The standard diameter for residential toilet waste lines is 3 inches, which aligns with most building codes and accommodates the typical volume of waste and water from a toilet flush. Using a smaller pipe, such as 2 inches, increases the risk of clogs due to reduced flow capacity, while a larger pipe, like 4 inches, is unnecessary and wastes space in tight joist cavities. Always verify local plumbing codes, as some jurisdictions may have specific requirements based on the number of fixtures or building type.
The slope of the pipe also influences size selection. A 3-inch pipe requires a minimum slope of 1/8 inch per foot to maintain proper drainage, whereas a 4-inch pipe needs a slightly gentler slope of 1/16 inch per foot. When space between joists is limited, a 3-inch pipe is often more practical because it allows for a steeper slope within a shorter vertical distance. However, if the run is long and the slope must be gradual, a 4-inch pipe might be preferable to minimize the risk of slow drainage. Measure the available space and calculate the required slope before finalizing the pipe size.
Material choice plays a role in pipe size selection as well. PVC pipes, the most common choice for toilet waste lines, are available in 3-inch and 4-inch diameters and offer smooth interiors that promote flow. Cast iron or ABS pipes, while less common in modern installations, may have slightly different interior diameters due to wall thickness, so ensure compatibility with fittings and fixtures. For retrofits or repairs, consider the existing pipe material and size to maintain consistency and avoid unnecessary transitions that could impede flow.
Finally, consider future-proofing your installation. If there’s a possibility of adding additional fixtures downstream, such as a sink or shower, a 4-inch pipe provides greater capacity and flexibility. However, for a single toilet installation, a 3-inch pipe is typically sufficient and more cost-effective. Always plan the layout carefully, ensuring the pipe aligns with the toilet’s waste outlet and the main stack without sharp bends, which can reduce effective diameter and flow efficiency. Proper sizing and planning will save time, money, and potential headaches down the line.
Toxic Waste vs. Warheads: Which Extreme Sour Candy Dominates?
You may want to see also
Explore related products
Securing Pipes with Straps
Running toilet waste pipes through joists requires careful planning to ensure stability and compliance with building codes. Securing pipes with straps is a critical step in this process, as it prevents sagging, reduces noise, and maintains proper alignment. Pipe straps, typically made of galvanized steel or plastic, are designed to hold pipes firmly in place while allowing for slight movement due to thermal expansion. The key is to space these straps appropriately—generally every 4 to 6 feet along horizontal runs and every 8 feet vertically—to provide adequate support without over-constraining the pipe.
Selecting the right type of strap is equally important. For waste pipes, use straps with a neoprene or rubber cushion to prevent abrasion and dampen vibrations. Galvanized steel straps are durable and resistant to corrosion, making them ideal for long-term installations. Plastic straps, while less expensive, may degrade over time when exposed to moisture or temperature fluctuations, so they are best suited for dry, controlled environments. Ensure the strap size matches the pipe diameter for a snug fit, typically ranging from 1.5 to 4 inches for standard waste pipes.
Installation technique matters as much as the materials used. Secure straps to joists using screws or nails, avoiding over-tightening to prevent crushing the pipe. For wooden joists, pre-drill holes to prevent splitting. When running pipes perpendicular to joists, notch the joists to accommodate the pipe, ensuring the notch does not exceed one-third of the joist’s depth to maintain structural integrity. Use a level to ensure the pipe remains aligned with the required slope (typically 1/4 inch per foot) to facilitate proper drainage.
One common mistake is neglecting to account for future maintenance. Install straps with enough clearance to allow for pipe removal or repair without dismantling the entire setup. For example, leave a gap of 1/2 inch between the pipe and the strap to accommodate insulation or future adjustments. Additionally, avoid placing straps in areas where they might interfere with other utilities, such as electrical wiring or HVAC ducts, to prevent conflicts during installation or repairs.
In conclusion, securing waste pipes with straps is a straightforward yet essential task that ensures the longevity and functionality of your plumbing system. By choosing the right materials, spacing straps correctly, and employing proper installation techniques, you can avoid common pitfalls and create a robust, code-compliant setup. This attention to detail not only prevents immediate issues like leaks or misalignment but also simplifies future maintenance, making it a worthwhile investment of time and effort.
Efficient Drain Installation: A Step-by-Step Guide for Waste Outlets
You may want to see also
Explore related products
Ensuring Proper Slope for Drainage
A critical aspect of running a toilet waste pipe through joists is ensuring the pipe maintains the correct slope for efficient drainage. Without the proper gradient, waste can accumulate, leading to clogs and system failures. The standard slope for a toilet drain pipe is 1/4 inch per foot, meaning for every foot of horizontal run, the pipe should drop 1/4 inch. This gradient ensures gravity works effectively to move waste and water through the system.
Achieving this slope requires careful planning and execution. Start by measuring the distance from the toilet flange to the main drain stack. Calculate the total drop needed by multiplying the horizontal distance by the required slope (1/4 inch per foot). For example, a 10-foot run would require a 2.5-inch drop. Mark these measurements on the joists to guide your pipe installation. Use a level or laser level to ensure accuracy, as even a slight deviation can compromise drainage.
While maintaining the slope, consider the pipe’s path through the joists. Notching or drilling holes in joists is often necessary, but avoid weakening structural integrity. The International Plumbing Code (IPC) permits notching joists up to 1/3 of their depth for plumbing runs. If notching isn’t feasible, use offset fittings to maintain the slope while navigating around obstructions. Always prioritize the structural stability of the floor system while ensuring the pipe’s gradient remains consistent.
One common mistake is assuming a steeper slope is better. While a 1/4-inch-per-foot slope is the minimum, exceeding this can lead to problems. A slope greater than 1/2 inch per foot can cause liquids to flow too quickly, leaving solids behind and increasing the risk of clogs. Conversely, a slope less than 1/4 inch per foot results in sluggish drainage. Striking the right balance is key to a functional and long-lasting plumbing system.
Finally, test the slope before finalizing the installation. Pour a bucket of water into the pipe and observe its flow. Water should move steadily without pooling or rushing. Adjust the pipe’s position if necessary, ensuring all connections are secure and aligned with the calculated gradient. Proper slope not only prevents blockages but also reduces the need for future maintenance, making it a cornerstone of successful toilet waste pipe installation.
Embrace Every Instant: Banish Regret, Seize Life’s Precious Moments
You may want to see also
Frequently asked questions
Yes, you can run a toilet waste pipe through joists, but it requires careful planning. Ensure the pipe is properly supported, maintains the correct slope (1/4 inch per foot), and complies with local building codes. Avoid notching or weakening structural joists; use approved methods like drilling holes or using joist hangers.
The hole size depends on the pipe diameter, typically 3 or 4 inches for toilet waste. Drill a hole slightly larger than the pipe (e.g., 3.5 inches for a 3-inch pipe) to allow for insulation and movement. Ensure the hole is centered and does not compromise the joist's structural integrity.
Use pipe supports or straps to secure the waste pipe at regular intervals (every 4-6 feet). Ensure the pipe maintains a consistent slope toward the drain. Avoid sharp bends, and use approved fittings to navigate through the joists while maintaining proper alignment and structural integrity.
