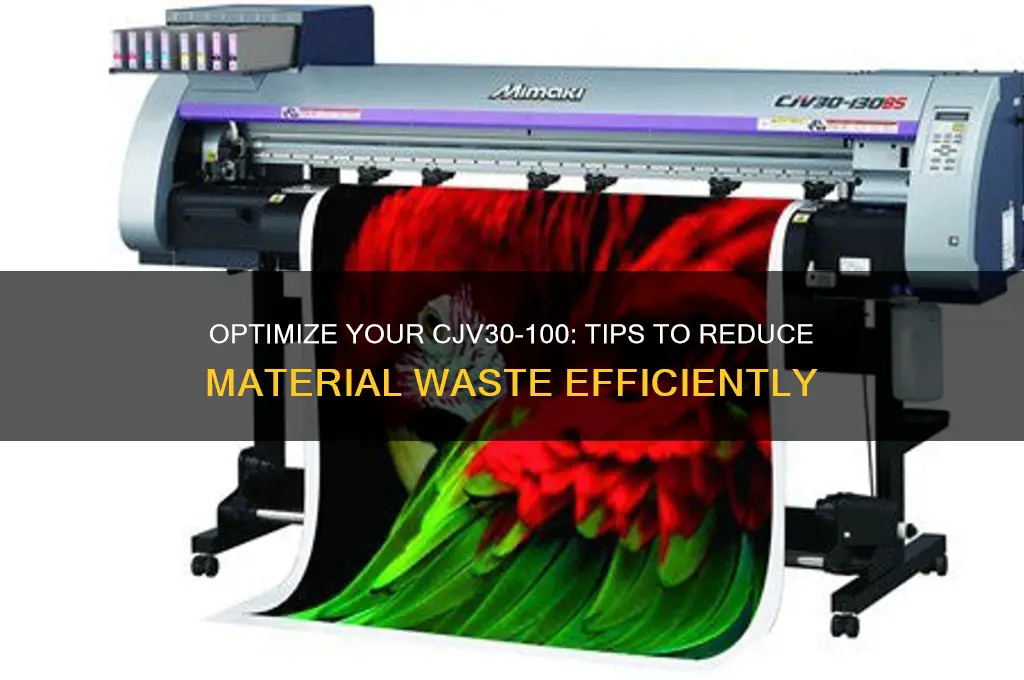

The Mimaki CJV30-100 is a versatile print-and-cut machine, but material waste can be a frustrating and costly issue for users. To minimize waste and optimize your workflow, it’s essential to address common causes such as improper media loading, incorrect cutting settings, or misaligned print-and-cut registration. Start by ensuring the media is loaded straight and securely, using the machine’s alignment guides. Calibrate the cutting blade pressure and offset settings to match your material thickness and type, and regularly perform print-and-cut adjustments to maintain precision. Additionally, review your design software settings to ensure proper bleed and margins, reducing unnecessary material usage. By systematically troubleshooting these areas, you can significantly reduce waste and improve the efficiency of your CJV30-100.
| Characteristics | Values |
|---|---|
| Machine Model | Mimaki CJV30-100 |
| Common Causes of Material Waste | Improper cutting settings, incorrect media loading, worn blades, misaligned sensors |
| Solutions to Reduce Waste | Calibrate cutting force, adjust blade depth, ensure proper media alignment, replace blades |
| Recommended Blade Depth | 0.1mm - 0.3mm (varies by material thickness) |
| Cutting Force Adjustment Range | 10g - 500g (adjust based on material type) |
| Media Loading Tips | Use alignment marks, ensure media is straight, avoid wrinkles or bubbles |
| Sensor Maintenance | Clean sensors regularly, ensure no debris or dust obstruction |
| Software Settings | Optimize cutting conditions in Mimaki RasterLink or compatible software |
| Blade Replacement Frequency | Replace every 1-3 months (depending on usage and material type) |
| Preventive Maintenance | Regularly clean the machine, check for worn parts, and perform firmware updates |
| Material Compatibility | Test cutting settings on scrap material before full production |
| User Training | Ensure operators are trained on proper machine usage and troubleshooting |
| Firmware Updates | Keep the machine firmware updated for optimal performance |
| Support Resources | Refer to Mimaki user manual, online forums, or contact Mimaki support for assistance |
Explore related products
What You'll Learn
- Adjust Cut Settings: Optimize blade offset, cut pressure, and speed to minimize excess material usage
- Check Media Alignment: Ensure material is loaded straight to prevent misaligned cuts and waste
- Maintain Blade and Holder: Regularly clean and replace worn blades for precise, efficient cutting
- Update Firmware: Install latest software updates to improve machine accuracy and reduce errors
- Use Proper Material: Select compatible materials and adjust settings to match their thickness and type
Adjust Cut Settings: Optimize blade offset, cut pressure, and speed to minimize excess material usage
One of the most effective ways to reduce material waste on your CJV30-100 is by fine-tuning the cut settings. Blade offset, cut pressure, and speed are critical parameters that, when optimized, can significantly minimize excess material usage. Start by assessing your current settings: a blade offset that’s too deep can lead to unnecessary material removal, while one that’s too shallow may result in incomplete cuts. Similarly, excessive cut pressure can cause material deformation and waste, whereas insufficient pressure may lead to multiple passes or incomplete cuts. Speed plays a role too—cutting too fast can compromise precision, while cutting too slow wastes time and increases the risk of material slippage.
To optimize blade offset, begin by testing incremental adjustments. For vinyl or thin materials, a blade offset of 0.004 to 0.006 inches often strikes the right balance between precision and material conservation. Thicker materials may require a slightly deeper offset, but avoid exceeding 0.010 inches unless absolutely necessary. Use the test cut function to evaluate the depth: a clean, single-pass cut without visible material drag indicates an optimal setting. Remember, the goal is to cut through the material without penetrating the backing sheet, as this is a common cause of waste.
Cut pressure adjustments should be tailored to the material’s thickness and flexibility. For standard vinyl, a pressure setting of 100 to 120 grams is typically sufficient. Reduce this to 80-100 grams for thinner films or heat-sensitive materials to prevent stretching or tearing. Conversely, rigid materials like laminated vinyl may require up to 150 grams. Always start with the lowest effective pressure and increase gradually until the cut is clean. Over-pressurizing not only wastes material but also accelerates blade wear, adding to long-term costs.
Speed optimization is a balancing act between efficiency and precision. For intricate designs, reduce the cutting speed to 10-15 cm/s to ensure accuracy and minimize the risk of material slippage. For simpler cuts, speeds of 20-25 cm/s are often adequate without sacrificing quality. High-speed cutting (above 30 cm/s) should be reserved for straight lines or coarse designs, as it increases the likelihood of errors and material waste. Regularly clean the roller and cutting strip to ensure smooth material feeding, as friction can negate the benefits of optimized speed settings.
Finally, adopt a systematic approach to testing and documenting your settings. Create a reference chart for different materials, noting the optimal blade offset, cut pressure, and speed combinations. This not only saves time on future projects but also ensures consistency in material usage. Periodically review and update these settings as blades wear or material batches vary. By treating cut settings as a dynamic, material-specific parameter rather than a one-size-fits-all solution, you’ll achieve significant reductions in waste and improve overall output quality.
Harnessing Yeast Power: A Sustainable Solution for Waste Breakdown?
You may want to see also
Explore related products
Check Media Alignment: Ensure material is loaded straight to prevent misaligned cuts and waste
Misaligned media is a silent saboteur in your CJV30-100 workflow, leading to skewed cuts, wasted material, and frustration. Even a slight deviation from straight loading can compound across the length of a roll, resulting in unusable sections and increased costs. This issue often stems from rushed setup, worn rollers, or improper tensioning, making it a critical yet overlooked aspect of efficient printing.
Diagnosing Alignment Issues: Begin by inspecting the leading edge of your material as it feeds into the printer. Look for telltale signs of misalignment: does the edge run parallel to the machine's guides, or does it veer off at an angle? Use a straightedge or laser guide for precision. If the material isn't perfectly aligned, the entire roll will likely deviate, causing the cutter to miss its mark and produce scrap.
Corrective Steps for Straight Loading: Start by ensuring the printer's feed rollers are clean and free of debris, as residue can cause uneven grip. Next, square the material's leading edge with the machine's alignment marks before loading. Apply even tension across the width of the roll, using the printer's pinch rollers to secure it without stretching or compressing the media. For large-format rolls, consider using a media alignment tool or guide rails to maintain straight feeding throughout the print job.
Preventive Measures to Maintain Alignment: Regularly calibrate your CJV30-100's sensors and rollers to ensure they work in harmony. Replace worn components promptly, as degraded parts can introduce inconsistencies in feeding. Train operators to follow a standardized loading procedure, emphasizing the importance of alignment at every step. Finally, periodically audit completed jobs for alignment issues, using the data to refine your setup process and minimize future waste.
The Payoff of Precision Alignment: Investing time in proper media alignment yields immediate and long-term benefits. You'll reduce material waste by up to 15%, depending on your current misalignment rate, and decrease the frequency of cutter blade replacements due to fewer corrections. More importantly, consistent alignment ensures professional-quality output, enhancing your reputation and client satisfaction. By treating alignment as a non-negotiable step in your workflow, you transform the CJV30-100 from a material-wasting machine into a precision tool.
Water Waste's Economic Impact: Hidden Costs and Long-Term Consequences
You may want to see also
Explore related products
Maintain Blade and Holder: Regularly clean and replace worn blades for precise, efficient cutting
A dull or damaged blade is a silent saboteur in your CJV30-100, quietly siphoning away material with every inefficient cut. This seemingly minor issue compounds over time, leading to significant waste and increased production costs. The solution lies in a simple yet often overlooked practice: regular blade and holder maintenance.
Think of your blade as a precision instrument. Just like a surgeon's scalpel, it requires meticulous care to perform optimally. Over time, adhesive residue, dust, and microscopic nicks accumulate, dulling the edge and forcing the cutter to exert more pressure, resulting in jagged edges and excessive material loss.
Cleaning Protocol: Implement a daily cleaning routine using a soft brush and compressed air to remove debris from the blade and holder. For stubborn residue, a mild solvent specifically designed for cutter blades can be used, followed by thorough drying to prevent rust.
Replacement Schedule: Establish a proactive replacement schedule based on usage. As a general guideline, consider replacing blades every 500-1000 linear meters of cutting, depending on material thickness and complexity. Keep detailed records of blade life to refine this schedule for your specific workflow.
The benefits of diligent blade maintenance extend beyond material savings. A sharp blade ensures cleaner cuts, reducing the need for post-processing and minimizing the risk of damaging delicate materials. This translates to faster production times, improved product quality, and ultimately, a more profitable operation.
Maximize Your Potential: Strategies to Eliminate Energy-Wasting Habits
You may want to see also
Explore related products
Update Firmware: Install latest software updates to improve machine accuracy and reduce errors
Outdated firmware can silently sabotage your CJV30-100's performance, leading to material waste through misalignment, inaccurate cutting, and inefficient ink usage. Think of firmware as the brain of your printer-cutter – it controls every movement and function. Just like you update your phone for better performance, your CJV30-100 needs regular firmware updates to operate at its peak.
Manufacturers constantly refine firmware to address known issues, improve precision, and optimize material handling.
Updating firmware is a straightforward process, but it requires attention to detail. First, visit Mimaki's support website and locate the latest firmware version for your specific CJV30-100 model. Download the update file and carefully follow the provided instructions. Ensure your machine is connected to a stable power source and avoid interruptions during the update process. Remember, a failed update can potentially brick your device, so proceed with caution and consider backing up important data beforehand.
While updating firmware might seem like a technical task, it's a crucial preventative measure. By keeping your CJV30-100's software current, you're investing in its longevity and efficiency, ultimately saving material and maximizing your return on investment.
Save Trees, Cut Waste: Practical Tips to Reduce Paper Usage
You may want to see also
Explore related products
Use Proper Material: Select compatible materials and adjust settings to match their thickness and type
Material incompatibility is a silent saboteur of efficiency in cutting and printing processes, particularly with machines like the CJV30-100. The wrong substrate can lead to excessive waste through misfeeds, blade damage, or inconsistent cuts. Vinyl, for instance, requires a different blade depth and pressure compared to heat transfer paper or cardstock. Misalignment between material properties and machine settings results in unnecessary material loss and increased operational costs. Understanding the inherent characteristics of your substrate—flexibility, thickness, adhesive backing—is the first step in minimizing waste.
Selecting the right material involves more than choosing a brand; it requires matching the substrate to the intended application and machine capabilities. For instance, using a heavy-duty vinyl for intricate designs may cause the blade to drag, wasting material and dulling the blade prematurely. Conversely, lightweight materials like window perf can tear if the pressure is too high. Refer to the CJV30-100’s compatibility guidelines and conduct small test runs to ensure the material behaves as expected. Adjust the blade depth to penetrate the material without cutting through the backing, typically setting it at 10-15% of the material thickness for optimal results.
Adjusting machine settings to match material type is equally critical. The CJV30-100 allows for precise control over pressure, speed, and temperature, which must be tailored to the substrate. For example, thicker materials like magnetic sheets require slower cutting speeds (around 10-20 cm/s) and higher pressure (up to 150 kgf), while thin films like window clings need faster speeds (30-40 cm/s) and lower pressure (50-80 kgf). Overlooking these adjustments can lead to incomplete cuts or material distortion, both of which contribute to waste. Always consult the material manufacturer’s recommendations and cross-reference them with the CJV30-100’s settings for accuracy.
A practical tip for reducing waste is to group jobs by material type to minimize setup changes. Switching between rigid and flexible materials frequently can lead to calibration errors and material loss during transitions. For instance, if cutting both adhesive vinyl and reflective film, process all vinyl jobs consecutively before switching to the film. Additionally, use offcuts for smaller projects whenever possible. A 12” x 12” sheet of vinyl, for example, can be divided into four 6” x 6” sections for smaller decals, reducing overall waste by up to 30%.
In conclusion, using proper materials and adjusting settings accordingly is not just about compatibility—it’s about optimizing the CJV30-100’s performance to reduce waste systematically. By understanding material properties, selecting the right substrate, and fine-tuning machine settings, operators can achieve cleaner cuts, longer blade life, and more efficient material usage. This approach not only minimizes waste but also enhances the overall productivity and cost-effectiveness of the machine.
Toxic Waste vs. Nuclear Fusion: Which is More Sour?
You may want to see also
Frequently asked questions
Excessive material waste often stems from incorrect cutting settings or worn blades. Ensure your cutting pressure, speed, and blade offset are optimized for your material. Replace the blade if it's dull or damaged.
Utilize the media clamps and properly align the material during loading. Double-check the media origin settings and ensure the take-up reel is functioning correctly to minimize skewing and misalignment during unloading.
Calibrate the cutter regularly to ensure accurate tracking. Check for debris or damage on the pinch rollers and replace them if necessary. Verify that the media is loaded straight and taut to prevent shifting during cutting.
Yes, utilize the nesting feature in your RIP software to efficiently arrange designs on the material. Experiment with different nesting algorithms and consider rotating designs to maximize material usage.
