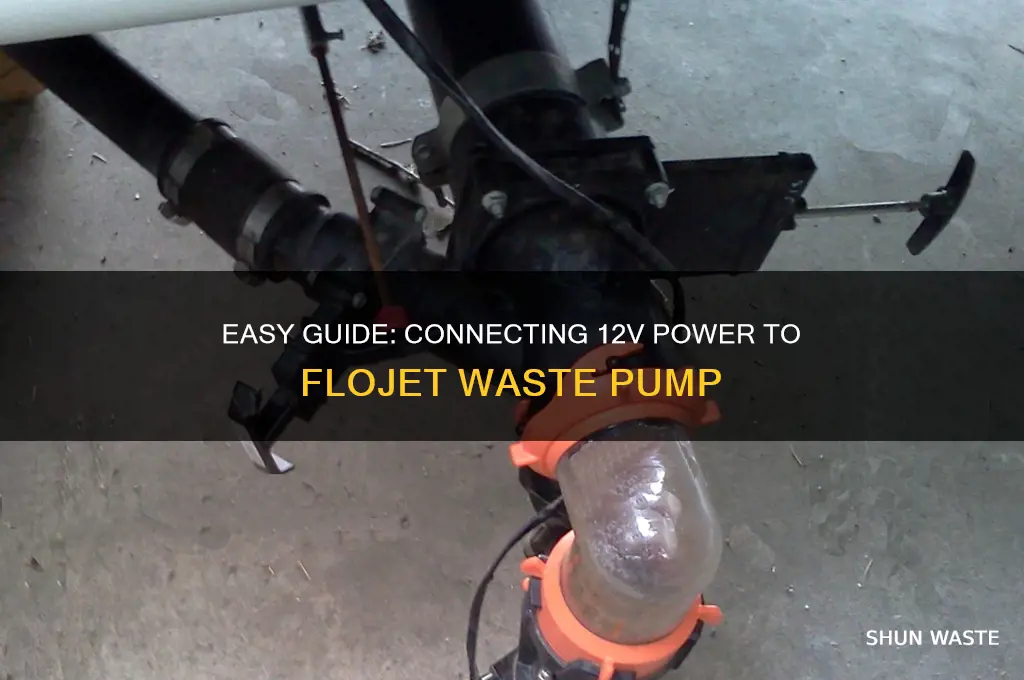

Hooking up a 12-volt power supply to a Flojet waste pump is a straightforward process that ensures efficient operation of your RV, boat, or mobile waste management system. This setup requires basic electrical knowledge and a few essential components, including a 12-volt power source, appropriate wiring, and connectors compatible with the Flojet pump. By following the manufacturer’s guidelines and safety precautions, you can securely connect the pump to your power source, ensuring reliable performance for waste removal. This guide will walk you through the steps, from gathering the necessary materials to testing the connection, to help you achieve a safe and functional installation.
| Characteristics | Values |
|---|---|
| Power Source | 12 Volt DC |
| Pump Model Compatibility | Flojet Waste Pump (specific model may vary, e.g., Flojet 18530-000A) |
| Wiring Requirements | 12 AWG wire for power and ground connections |
| Fuse Protection | Inline fuse (10-15 Amp) recommended for circuit protection |
| Power Connector | Spade terminals or ring terminals for secure connections |
| Battery Compatibility | Deep cycle marine or RV battery (12V) |
| Switch Type | On/Off switch (waterproof recommended for outdoor/RV use) |
| Grounding | Securely ground the pump to the vehicle chassis or battery negative terminal |
| Hose Connections | Use compatible hose sizes (typically 1/2" or 3/4" depending on the model) |
| Mounting | Securely mount the pump to a flat surface using brackets or screws |
| Voltage Regulation | Ensure stable 12V supply; voltage drops below 10V may affect performance |
| Waterproofing | Ensure all connections are waterproofed with heat shrink or silicone |
| Safety Precautions | Disconnect power before installation or maintenance |
| Testing | Test the pump after installation to ensure proper operation |
| Maintenance | Regularly inspect hoses, connections, and fuses for wear or damage |
| Application | Suitable for RVs, boats, or portable waste systems |
Explore related products
What You'll Learn
- Gather Materials: Pump, 12V battery, wires, connectors, fuse, switch, and wire strippers
- Connect Battery: Attach positive wire to pump’s red terminal, negative to black terminal
- Install Fuse: Place inline fuse on positive wire for safety and short prevention
- Add Switch: Connect a switch between battery and pump for easy on/off control
- Test System: Power on, check pump operation, ensure no overheating or leaks
Gather Materials: Pump, 12V battery, wires, connectors, fuse, switch, and wire strippers
Before diving into the wiring process, it’s crucial to assemble all necessary components to ensure a seamless installation. The Flojet waste pump, designed for efficient waste management, relies on a 12V power source, making the selection of compatible materials paramount. Start by confirming the pump’s voltage requirements, typically stamped on its label or in the user manual, to avoid mismatches that could damage the unit. Alongside the pump, a 12V battery serves as the primary power source, offering portability and reliability, especially in off-grid applications like RVs or boats. Opt for a deep-cycle battery if the pump will operate frequently, as these are designed for sustained power output rather than quick bursts.
Next, gather the wiring essentials: wires, connectors, a fuse, and a switch. Use 12-gauge stranded copper wire for its flexibility and current-carrying capacity, ensuring it can handle the pump’s amperage, usually around 5–7 amps. Connectors, such as ring terminals or spade connectors, secure the wires to the pump and battery terminals, while a 10-amp inline fuse protects the circuit from overcurrent. A simple toggle switch allows for easy control of the pump’s operation. Don’t overlook wire strippers, an indispensable tool for cleanly exposing wire ends without damaging the conductors, ensuring secure connections.
The quality of these materials directly impacts the system’s performance and safety. For instance, using undersized wire or a low-quality fuse can lead to overheating or failure under load. Similarly, opting for marine-grade connectors and wires can enhance durability in humid or outdoor environments. While the initial cost of premium components may be higher, they offer long-term reliability and peace of mind, particularly in critical applications like waste management systems.
Finally, consider the layout and accessibility of these components during installation. Position the switch and fuse in a convenient, visible location for easy operation and maintenance. Route wires away from moving parts or sharp edges to prevent damage, and secure them with zip ties or clamps to avoid tangling. By meticulously gathering and organizing these materials, you set the stage for a smooth, efficient installation that ensures the Flojet waste pump operates safely and effectively.
