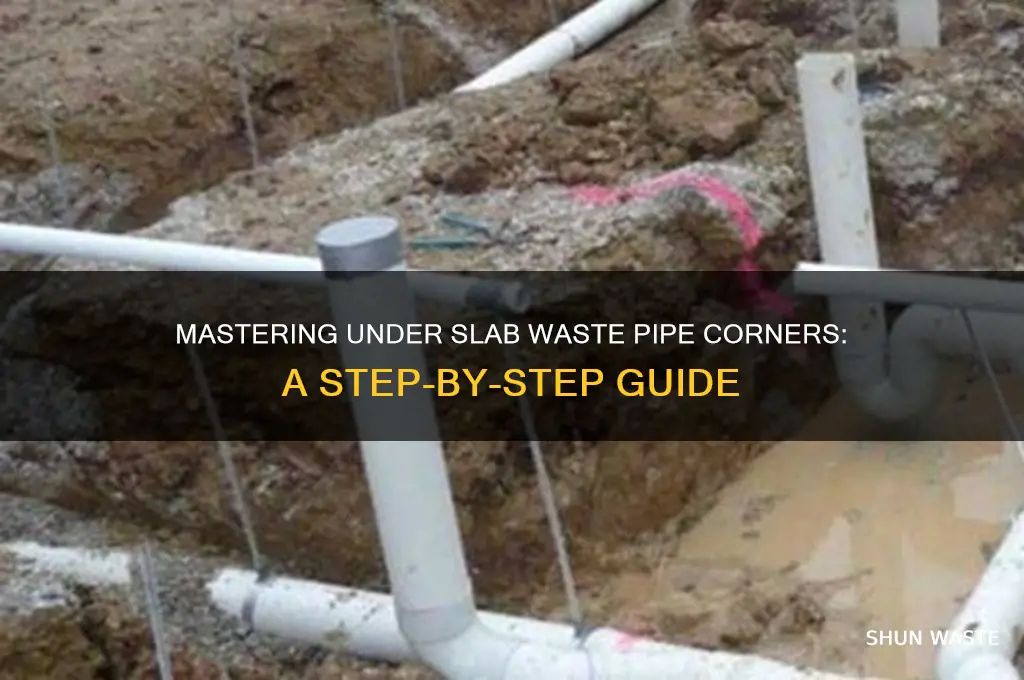

Installing under-slab waste pipes requires careful planning, especially when dealing with corners, as improper execution can lead to blockages, leaks, or structural issues. Corners in under-slab plumbing must be designed to maintain proper slope for drainage while ensuring smooth flow and minimizing the risk of debris accumulation. Using 45-degree fittings instead of 90-degree bends is recommended to reduce sharp turns and promote better water flow. Additionally, precise measurements and alignment are crucial to avoid kinking or damaging the pipes during installation. Proper support and securing of the pipes at corners are also essential to prevent shifting or settling over time. Following local building codes and consulting with a professional plumber can help ensure the system is efficient, durable, and compliant with regulations.
| Characteristics | Values |
|---|---|
| Pipe Material | PVC (most common), ABS |
| Minimum Pipe Slope | 1/4 inch per foot (2%) |
| Maximum Pipe Slope | 1/2 inch per foot (4%) |
| Corner Type | 45-degree elbows (preferred), 90-degree elbows (allowed but not ideal) |
| Elbow Orientation | Sweep elbows (long-radius) recommended for smoother flow |
| Support Requirements | Secure pipes with straps or hangers every 4-6 feet, including at corners |
| Ventilation | Ensure proper venting to prevent siphoning and maintain flow |
| Sealing Joints | Use solvent cement for PVC or ABS cement for ABS pipes |
| Testing | Conduct a water test before pouring the slab to check for leaks |
| Clearance from Slab Edge | Maintain at least 2 inches clearance from the edge of the slab |
| Depth Below Slab | Minimum 12 inches below the finished slab surface |
| Backfill Material | Use sand or gravel for backfill to prevent pipe damage |
| Compliance | Follow local plumbing codes and regulations |
| Access Points | Install cleanouts at accessible points for maintenance |
| Insulation | Insulate pipes in cold climates to prevent freezing |
| Expansion Joints | Consider expansion joints for long pipe runs to accommodate movement |
Explore related products
What You'll Learn
- Planning Corner Layouts: Strategically position corners for optimal flow and minimal blockages in under slab waste pipes
- Choosing Correct Angles: Use 45-degree fittings to reduce stress and improve water flow efficiency
- Proper Pipe Sloping: Ensure consistent gradient (1/4 inch per foot) to prevent standing water in corners
- Securing Joints: Use solvent cement and test joints for leaks before embedding in concrete
- Avoiding Sharp Bends: Limit 90-degree turns to reduce clogs and maintain smooth waste drainage
Planning Corner Layouts: Strategically position corners for optimal flow and minimal blockages in under slab waste pipes
Corners in under slab waste pipes are critical junctures where blockages and flow issues often originate. Strategic positioning of these corners can mitigate risks by ensuring gradual changes in direction and maintaining adequate slope. A well-planned layout minimizes sharp angles, which disrupt flow and trap debris, while maximizing the use of space beneath the slab.
Consider the 45-degree rule: whenever possible, use 45-degree bends instead of 90-degree turns. This reduces friction and allows waste to move more freely. For example, if a pipe must change direction by 90 degrees, incorporate two 45-degree bends with a short straight section in between. This approach not only improves flow but also simplifies installation by reducing the need for complex fittings.
Analyze the slope requirements for optimal drainage. Under slab pipes should maintain a minimum slope of 1/4 inch per foot (2 percent) to ensure gravity-driven flow. When planning corners, ensure the slope is consistent through the bend. Avoid flattening or reversing the slope at corners, as this can cause water to pool and solids to settle, leading to blockages. Use a laser level or string line to verify slope accuracy during installation.
Compare the benefits of sweeping bends versus sharp elbows. Sweeping bends, such as those found in PVC fittings, offer a gradual curve that maintains flow velocity without abrupt changes. In contrast, sharp elbows create turbulence and increase the likelihood of clogs. While sweeping bends may require more space, they are a worthwhile investment in systems prone to heavy use or large debris.
Finally, incorporate access points strategically near corners for maintenance and inspection. Cleanout fittings placed at key bends allow for easy rodding or jetting if blockages occur. Position these access points at least every 50 feet in straight runs and immediately after bends to ensure comprehensive coverage. Proper planning of corner layouts not only optimizes flow but also simplifies future maintenance, ensuring the longevity of the under slab waste system.
Creative DIY Key Holder: Upcycling Waste into Functional Art
You may want to see also
Explore related products
Choosing Correct Angles: Use 45-degree fittings to reduce stress and improve water flow efficiency
In under-slab waste pipe installations, sharp 90-degree turns create friction points that impede flow and increase stress on joints. Opting for 45-degree fittings instead allows wastewater to navigate corners with less resistance, reducing the risk of clogs and pipe fatigue. This simple angle adjustment can extend the lifespan of your plumbing system by minimizing wear and tear at critical junctions.
Consider the physics of fluid dynamics: a 45-degree bend distributes the force of flowing water more evenly across the pipe’s interior surface. This reduces turbulence, which is a primary cause of sediment buildup and blockages. For example, in a typical residential setup, using 45-degree fittings at corners can improve flow efficiency by up to 20% compared to 90-degree turns. This is particularly crucial in under-slab systems, where repairs are costly and disruptive.
When planning your layout, prioritize gradual changes in direction by combining two 45-degree fittings to create a sweeping 90-degree turn. This method, often referred to as a "sweep bend," mimics the natural flow of water and is especially effective for systems with high volumes or solid waste. Avoid using more than two 45-degree fittings in succession, as this can unnecessarily elongate the pipe run and increase material costs.
Material selection also plays a role in angle efficiency. PVC pipes, commonly used in under-slab systems, are more flexible and forgiving with 45-degree fittings than rigid materials like cast iron. Ensure fittings are securely glued and aligned to prevent leaks, as even minor misalignment can negate the benefits of proper angling. Regularly inspect these junctions during the initial installation phase to catch issues before the slab is poured.
Finally, while 45-degree fittings are superior for corners, they should be used judiciously. Overuse can lead to a labyrinthine pipe network that’s difficult to maintain. Strike a balance by reserving 45-degree fittings for high-stress areas, such as junctions near fixtures or changes in slope. This strategic approach ensures optimal flow without unnecessary complexity, making your under-slab system both efficient and durable.
Easy Guide to Installing a Freestanding Bath Waste
You may want to see also
Explore related products
Proper Pipe Sloping: Ensure consistent gradient (1/4 inch per foot) to prevent standing water in corners
Achieving the correct slope in under-slab waste pipes is critical to maintaining proper drainage and preventing water stagnation, which can lead to clogs, odors, and structural damage. The recommended gradient of 1/4 inch per foot ensures that water flows efficiently without pooling, especially in corners where debris tends to accumulate. This slope is not arbitrary; it balances gravity’s pull with the pipe’s capacity to move waste without overwhelming the system. Deviating from this gradient, even slightly, can lead to standing water, which defeats the purpose of the drainage system.
To implement this slope effectively, start by marking the desired height difference between the pipe’s beginning and end points. For example, a 10-foot run requires a 2.5-inch drop (1/4 inch per foot multiplied by 10). Use a laser level or water level to ensure accuracy, as eyeballing can result in inconsistencies. When approaching corners, maintain the gradient by adjusting the pipe’s elevation at the turn. Avoid sharp bends that could disrupt flow; instead, use 45-degree fittings to create gradual changes in direction while preserving the slope.
One common mistake is assuming that corners allow for a "break" in the gradient. In reality, corners demand even greater precision. Standing water in corners can lead to sediment buildup, which not only blocks flow but also corrodes pipes over time. To mitigate this, ensure the pipe’s bottom remains at the correct slope throughout the turn, even if it means raising or lowering the pipe slightly at the corner’s apex or nadir. This attention to detail is what separates a functional system from a problematic one.
For DIY installers, a practical tip is to use wooden shims or sand to adjust the pipe’s position before securing it in place. Pre-slope the pipe bed with sand or gravel to create a natural gradient, then fine-tune with shims as needed. Always double-check the slope with a level after each adjustment. Professionals often use pre-sloped pipe supports or adjustable hangers to streamline the process, but these tools are not mandatory—consistency and precision are.
In summary, proper pipe sloping is a cornerstone of under-slab waste pipe installation. The 1/4 inch per foot gradient is non-negotiable, especially in corners where water tends to collect. By maintaining this slope through careful planning, accurate measurements, and meticulous adjustments, you ensure a system that drains effectively, lasts longer, and avoids the pitfalls of standing water. Ignore this principle at your peril—the consequences of improper sloping are far more costly to fix than the effort required to get it right the first time.
Escondido Waste Collection Schedule: Memorial Day Pick-Up Information
You may want to see also
Explore related products
Securing Joints: Use solvent cement and test joints for leaks before embedding in concrete
Solvent cement is the linchpin of secure under-slab waste pipe joints, chemically fusing PVC or ABS components into a monolithic structure. Unlike mechanical couplings, solvent cement welds the joint at a molecular level, creating a bond stronger than the pipe itself. Apply a thin, even coat to both the pipe and fitting, using a dauber or brush to ensure full coverage. Follow manufacturer guidelines for dosage—typically a 1:1 ratio of cement to surface area—and allow the solvent to activate for 15–30 seconds before joining the pieces. Over-application can weaken the bond, while under-application risks incomplete fusion.
Testing joints for leaks before embedding them in concrete is non-negotiable. Once the slab is poured, repairs become costly and invasive. Use a simple pressure test with water or air to verify integrity. For water testing, cap the pipe ends and fill the system to 5 psi above the expected operating pressure, holding it for 15 minutes. Inspect for drips or dampness at joints. Air testing involves pressurizing the system to 5 psi and monitoring for pressure drops using a gauge. Any failure at this stage requires disassembly, re-cementing, and retesting—a minor inconvenience compared to post-pour leaks.
The timing of solvent cement application is critical. Work in moderate temperatures (50°F–90°F) to ensure proper curing. Extreme cold slows evaporation, weakening the bond, while heat accelerates drying, leaving insufficient time for fusion. Avoid windy or humid conditions that can introduce contaminants or disrupt the cement’s consistency. Once cemented, support joints with clamps or braces until the initial set (typically 10–20 minutes), but avoid disturbing them for at least 24 hours to achieve full strength.
A common mistake is neglecting to clean pipe ends and fittings before cementing. Dust, grease, or debris creates a barrier that prevents proper adhesion. Use a clean cloth or fine-grit sandpaper to remove surface impurities, followed by a solvent-compatible cleaner to degrease the area. For ABS pipes, roughen the mating surfaces lightly to enhance mechanical grip. This preparatory step, though minor, is as vital as the cement itself in ensuring a leak-free joint.
Finally, consider the long-term implications of joint security. Under-slab pipes are subjected to soil movement, temperature fluctuations, and hydrostatic pressure, all of which stress joints over time. A properly cemented and tested joint not only prevents immediate leaks but also guards against gradual failures that can compromise the entire system. Think of solvent cement as an investment in durability—a small effort now that pays dividends in decades of trouble-free service.
Australia's Nuclear Waste Storage: Methods, Locations, and Safety Measures
You may want to see also
Explore related products
Avoiding Sharp Bends: Limit 90-degree turns to reduce clogs and maintain smooth waste drainage
Sharp bends in under-slab waste pipes are a common culprit for clogs and drainage issues. The abrupt change in direction disrupts the flow of waste, allowing debris to settle and accumulate. A 90-degree turn, in particular, creates a natural trap for hair, grease, and other solids, leading to blockages over time. This not only causes backups but also increases the risk of pipe damage due to pressure buildup. By minimizing these sharp bends, you can significantly improve the efficiency and longevity of your drainage system.
To achieve smoother waste flow, consider using 45-degree elbows instead of 90-degree turns whenever possible. These gentler angles allow waste to move more naturally through the pipes, reducing the likelihood of clogs. For example, if you need to change direction, use two 45-degree fittings to create a sweeping turn rather than a single sharp bend. This approach mimics the natural flow of water, promoting better drainage and reducing the need for frequent maintenance.
Another practical tip is to plan your pipe layout carefully during the design phase. Use straight runs as much as possible and only introduce bends when absolutely necessary. If a 90-degree turn is unavoidable, ensure the pipe is sloped correctly to maintain water velocity and prevent debris from settling. A slope of 1/4 inch per foot is generally recommended for under-slab waste pipes to keep the flow moving efficiently.
For existing systems, inspect areas with sharp bends regularly for signs of clogging. Install cleanouts near these bends to facilitate easier access for clearing blockages. Additionally, consider retrofitting problematic sections with smoother transitions if recurring issues arise. While this may require some upfront effort, it can save significant time and money in the long run by preventing major drainage problems.
In summary, avoiding sharp bends in under-slab waste pipes is a proactive measure to ensure smooth and efficient drainage. By opting for gentler angles, careful planning, and regular maintenance, you can minimize the risk of clogs and extend the life of your plumbing system. This approach not only improves functionality but also reduces the stress on pipes, making it a smart investment for any construction or renovation project.
Preventing Muscle Wasting in Cancer: Effective Strategies for Strength & Recovery
You may want to see also
Frequently asked questions
Plan the layout by ensuring all corners have a consistent slope (minimum 1/4 inch per foot) to allow proper drainage. Use 90-degree or 45-degree fittings to navigate corners, and avoid sharp bends that could restrict flow.
Use 90-degree or 45-degree PVC or ABS fittings for corners. Ensure they are compatible with your pipe material and meet local plumbing codes.
Measure and mark the slope before installation, ensuring the pipe drops the required height at each corner. Use a level or laser to verify the gradient.
Flexible pipes are not recommended for under slab waste systems due to the risk of kinking or collapsing. Stick to rigid PVC or ABS pipes and fittings for corners.
Use primer and solvent cement to securely join fittings at corners. Test the system for leaks before pouring the slab by filling the pipes with water and inspecting for drips.
