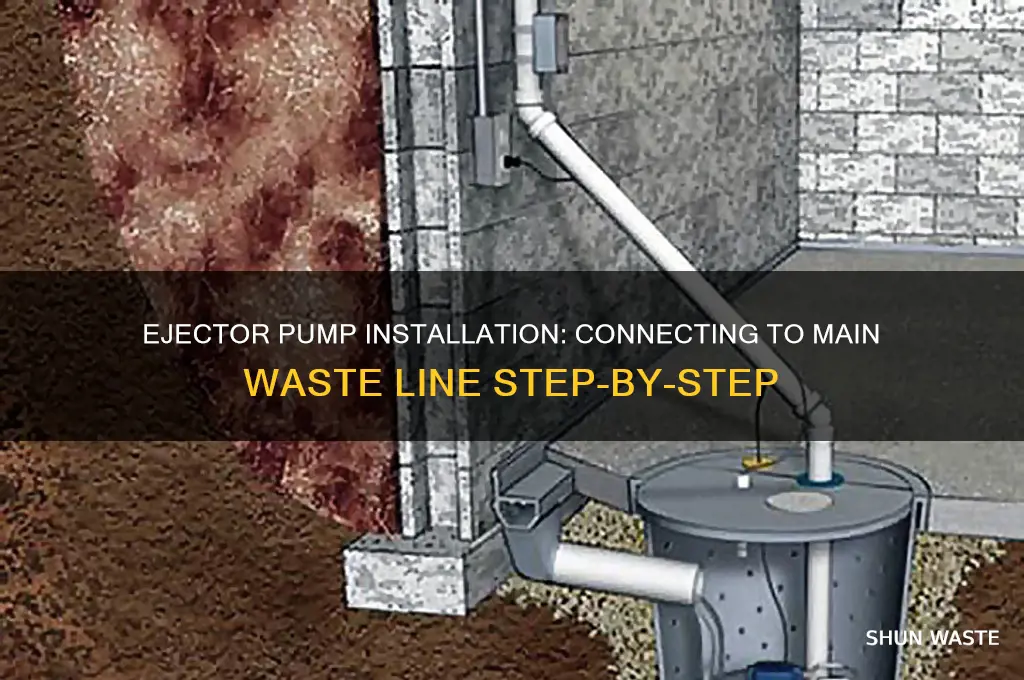

Connecting an ejector pump to the main waste line is a crucial step in ensuring efficient wastewater management, particularly in basements or areas where gravity flow is insufficient. The process involves careful planning and execution to prevent leaks and ensure proper functionality. Begin by locating the main waste line and determining the optimal position for the ejector pump, typically near the lowest point of the drainage system. Next, cut into the main waste line using appropriate tools, ensuring a clean and precise opening. Install a Y-fitting or tee to create a branch for the ejector pump, securing all connections with solvent cement or threaded fittings as needed. Connect the ejector pump’s discharge pipe to the new fitting, ensuring it slopes upward toward the main line to facilitate smooth flow. Finally, test the system for leaks and verify that the pump activates correctly when wastewater enters the basin. Following these steps will ensure a reliable connection that effectively handles waste removal.
| Characteristics | Values |
|---|---|
| Pump Location | Below the main waste line, typically in a basement or crawl space. |
| Discharge Pipe Size | Typically 1.5" or 2" PVC pipe, depending on local plumbing codes. |
| Venting Requirement | Must be vented to prevent airlocks and ensure proper flow. |
| Check Valve Installation | Install a check valve on the discharge line to prevent backflow. |
| Connection to Main Waste Line | Use a Y-fitting or tee fitting to connect the ejector pump to the main line. |
| Electrical Connection | Requires a GFCI-protected electrical outlet for power. |
| Float Switch Placement | Position the float switch to activate the pump at appropriate water levels. |
| Backflow Prevention | Ensure proper installation of check valves and venting to prevent backflow. |
| Local Plumbing Codes | Adhere to local building and plumbing codes for installation requirements. |
| Pump Capacity | Choose a pump with sufficient capacity for the expected wastewater volume. |
| Noise Reduction | Consider installing the pump on a rubber pad or in a soundproof enclosure. |
| Maintenance Access | Ensure easy access for maintenance and cleaning of the pump and basin. |
| Basin Size | Select a basin size that accommodates the expected wastewater volume. |
| Seal and Gaskets | Use proper seals and gaskets to prevent leaks at all connections. |
| Testing | Test the pump and connections thoroughly after installation to ensure functionality. |
Explore related products
What You'll Learn
Locate Main Waste Line Access Point
Identifying the main waste line access point is the linchpin of a successful ejector pump installation. This junction, typically a cleanout or vent stack, serves as the gateway for integrating the pump’s discharge line into your home’s existing plumbing system. Cleanouts are capped pipes (usually 3–4 inches in diameter) located near the foundation or in the basement, while vent stacks are vertical pipes extending through the roof. Both are designed to handle high volumes of wastewater, making them ideal connection points. However, cleanouts are generally preferred for their accessibility and lower risk of disrupting the venting system.
To locate the main waste line access point, start by tracing the path of your home’s plumbing. In basements, look for horizontal pipes running along the ceiling or walls, often near floor drains or laundry areas. These pipes typically lead to a cleanout or the main stack. In slab foundations, cleanouts are usually found near the perimeter of the house, marked by a threaded cap or square knob. If your home lacks visible cleanouts, consult the original plumbing diagram or hire a professional to avoid accidental damage. Remember, the access point must be downstream of all fixtures the ejector pump will serve to ensure proper flow.
Once you’ve identified a potential access point, verify its suitability. Insert a plumbing snake or camera into the cleanout to confirm it connects to the main waste line, not a branch line. Ensure the pipe diameter matches the ejector pump’s discharge size (typically 2 inches) to avoid incompatibility. If using a vent stack, inspect it for debris or blockages that could impede flow. Pro tip: If the access point is elevated, install a check valve in the ejector pump’s discharge line to prevent backflow into the pump.
Choosing the wrong access point can lead to costly mistakes. Connecting to a branch line instead of the main waste line may result in overflows or backups during heavy use. Similarly, attaching the pump to a vent stack without proper venting can create airlocks, reducing efficiency. Always prioritize cleanouts for their reliability and ease of access. If in doubt, consult a plumber to ensure compliance with local building codes and optimal system performance.
In summary, locating the main waste line access point requires a blend of observation, verification, and caution. By identifying the correct cleanout or vent stack, confirming its compatibility, and avoiding common pitfalls, you’ll lay the foundation for a seamless ejector pump installation. This step is non-negotiable—skipping it could undermine the entire project. Take the time to get it right, and the rest of the installation will follow suit.
Is Your Oven a Hidden Energy Hog? Electricity Usage Explained
You may want to see also
Explore related products
Measure and Cut PVC Pipe Accurately
Accurate measurement and cutting of PVC pipe are critical steps in connecting an ejector pump to a main waste line. Even a slight miscalculation can lead to leaks, misalignment, or the need to start over. Begin by measuring the distance from the ejector pump’s discharge port to the main waste line, accounting for any bends or angles in the pipe run. Use a tape measure and mark the exact length needed on the PVC pipe with a permanent marker. Double-check your measurement before proceeding, as cutting too short is irreversible.
Once measured, select the appropriate PVC pipe cutter or hacksaw for the job. A ratcheting PVC cutter provides clean, precise cuts and is ideal for most DIY projects, while a hacksaw can be used in a pinch but requires more care to avoid jagged edges. Secure the pipe firmly in a vise or clamp to prevent it from rolling or shifting during cutting. Align the cutting tool with your marked line and apply steady pressure, ensuring the blade remains perpendicular to the pipe’s surface. A straight, smooth cut is essential for a secure connection.
After cutting, inspect the pipe’s edge for burrs or rough spots, which can interfere with fittings or seals. Use a fine-grit sandpaper or a deburring tool to smooth the edge, ensuring a flush fit. Test the pipe’s alignment by dry-fitting it into the ejector pump’s discharge port and the main waste line before applying primer and glue. This step helps identify any discrepancies in length or angle before making a permanent connection.
When working with PVC, always follow manufacturer guidelines for primer and solvent cement application. Apply a thin, even coat of primer to both the pipe’s exterior and the fitting’s interior, allowing it to dry for 10–15 seconds. Then, apply solvent cement to both surfaces, insert the pipe quickly, and hold it in place for 30 seconds to ensure a strong bond. Properly measured and cut PVC pipe, combined with correct assembly techniques, ensures a leak-free connection between the ejector pump and main waste line.
Does Lifting Your Truck Increase Fuel Consumption? Facts Revealed
You may want to see also
Explore related products
Install Check Valve for Backflow Prevention
Backflow prevention is critical when connecting an ejector pump to the main waste line, as it safeguards your system from sewage or wastewater reversal. A check valve, also known as a non-return valve, is the primary solution for this issue. Its purpose is simple yet vital: allow fluid to flow in one direction only, preventing backflow that could damage the pump, contaminate clean water sources, or cause unpleasant odors.
Installation Steps:
- Positioning: Install the check valve directly after the ejector pump, on the discharge side of the system. This ensures that any backflow attempt is immediately halted before reaching the pump.
- Orientation: Ensure the valve’s arrow (indicating flow direction) points toward the main waste line. Incorrect orientation renders the valve ineffective.
- Sealing: Use compatible pipe sealant or thread tape on all connections to prevent leaks. Tighten fittings securely but avoid over-tightening, which can damage the valve or pipes.
- Venting: Verify that the system includes proper venting to prevent airlocks, which can reduce the valve’s efficiency and strain the pump.
Material Considerations: Choose a check valve made from durable materials like PVC or stainless steel, depending on your system’s requirements. PVC is cost-effective and suitable for most residential applications, while stainless steel offers superior longevity in harsher environments. Ensure the valve’s size matches the pipe diameter to maintain optimal flow rates.
Maintenance Tips: Regularly inspect the check valve for signs of wear, debris buildup, or malfunction. Test its functionality by temporarily shutting off the pump and observing whether backflow occurs. Replace the valve immediately if it fails this test. Additionally, flush the system periodically to remove sediment that could obstruct the valve’s operation.
By integrating a check valve into your ejector pump setup, you not only comply with plumbing codes but also protect your investment and maintain a hygienic, efficient waste management system. Its installation is a small yet indispensable step in ensuring long-term reliability.
Understanding How Wastes and Carbon Dioxide Enter the Bloodstream
You may want to see also
Explore related products
Secure Ejector Pump Discharge Line
Securing the ejector pump discharge line is critical to prevent leaks, backflow, and system failures. Start by selecting a discharge pipe with a diameter matching the pump’s outlet—typically 1.5 to 2 inches—to ensure optimal flow. Use PVC or ABS piping for durability and chemical resistance, as these materials withstand wastewater and temperature fluctuations. Secure all connections with solvent cement, following manufacturer guidelines for curing times, usually 24 hours before testing. Properly sloped piping (minimum 1/4 inch per foot) ensures gravity assists flow, reducing strain on the pump and preventing blockages.
A common oversight is neglecting the check valve, which prevents backflow into the pump. Install a PVC or stainless steel check valve on the discharge line, positioned vertically to allow proper sealing. Ensure the valve’s arrow aligns with the flow direction. For added security, incorporate a union fitting near the pump for easy maintenance access without dismantling the entire line. Use stainless steel hose clamps if connecting to flexible piping, tightening them just enough to seal without deforming the hose. Regularly inspect these components for cracks, corrosion, or loose fittings, especially after heavy use or seasonal changes.
In areas prone to freezing, insulate the discharge line with foam tubing to prevent ice blockages. Alternatively, install a freeze-proof backwater valve or bury the line below the frost line (typically 18–24 inches deep). If the pump discharges outdoors, extend the pipe above ground level and install a vented cap to prevent debris entry while allowing air escape. For indoor installations, ensure the discharge line connects to the main waste stack above the flood rim of the fixture it serves, complying with local plumbing codes.
Finally, test the system thoroughly before finalizing connections. Fill the pump basin with water and activate the pump to check for leaks, proper flow, and valve functionality. Run the system for 5–10 minutes, inspecting joints, clamps, and seals for moisture. If discharging into a septic system, verify the flow doesn’t overwhelm the tank’s capacity—consult a professional if unsure. A securely installed discharge line not only protects your property from water damage but also extends the pump’s lifespan, saving time and repair costs in the long run.
Synthetic Plastic Bottles: Uncovering Their Environmental Impact and Waste Creation
You may want to see also
Explore related products
Test Connections for Leaks and Proper Flow
Once the ejector pump is connected to the main waste line, the critical next step is to test for leaks and ensure proper flow. Begin by filling the pump basin with water to the normal operating level, then turn on the pump to observe its performance. Listen for unusual noises, such as gurgling or air pockets, which could indicate improper venting or blockages. Inspect all connections—including the discharge pipe, check valve, and fittings—for signs of water seepage. Even a small drip can lead to significant issues over time, so address any leaks immediately by tightening connections or applying plumber’s tape.
A systematic approach to testing flow is essential for long-term reliability. Start by running water through the system to simulate normal usage, then check the discharge pipe for consistent water flow. The flow rate should match the pump’s specifications, typically measured in gallons per minute (GPM). If the flow is weak or intermittent, inspect the check valve for debris or misalignment, as this component prevents backflow and ensures efficient operation. Additionally, verify that the vent pipe is clear and properly sized, as inadequate venting can restrict flow and cause the pump to cycle unnecessarily.
For a thorough leak test, apply soapy water to all joints and seals while the pump is running. Bubbles forming at any point indicate a leak that requires immediate attention. Common culprits include loose fittings, cracked pipes, or improperly sealed unions. If the pump basin itself is leaking, check the gasket between the basin and lid, ensuring it’s seated correctly and undamaged. In cases where leaks persist, disassemble the connection, clean the surfaces, and reassemble with fresh sealant or tape, following manufacturer guidelines for torque specifications.
Comparing the system’s performance to industry standards can highlight potential issues. For instance, an ejector pump should cycle on and off smoothly, with no excessive vibration or strain. If the pump runs continuously or struggles to evacuate the basin, it may indicate a problem with flow or capacity. Measure the time it takes for the pump to clear the basin; if it exceeds the manufacturer’s stated cycle time, investigate for clogs or undersized piping. Proper flow not only ensures efficiency but also extends the pump’s lifespan by reducing wear on internal components.
Finally, consider the environmental conditions that could affect testing. Cold temperatures, for example, may cause pipes to contract, leading to temporary leaks that resolve once the system warms up. Conversely, high water pressure can exacerbate weak points in connections. After testing, let the system run for at least 24 hours under normal conditions, periodically checking for leaks or performance changes. This final step ensures that the ejector pump is not only connected correctly but also operates reliably in real-world scenarios, safeguarding your plumbing system from future issues.
Post-Tummy Tuck Waste Management: Tips for Safe and Effective Support
You may want to see also
Frequently asked questions
Use the same size pipe as your main waste line, typically 2 inches or as specified by the ejector pump manufacturer, to ensure proper flow and avoid clogs.
The ejector pump should be installed at a height that allows the discharge pipe to slope downward toward the main waste line at a minimum gradient of 1/4 inch per foot to ensure proper drainage.
Yes, a check valve is essential to prevent backflow from the main waste line into the ejector pump basin, which could cause flooding or damage to the pump.
