Helena Joyce

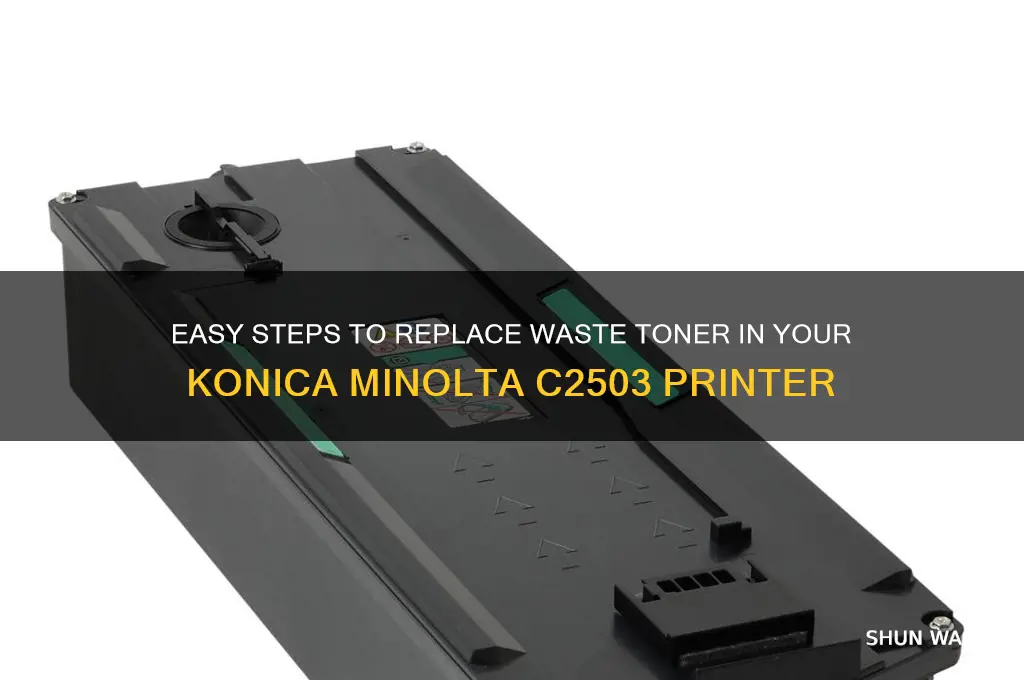

Changing the waste toner on a Konica Minolta C2503 printer is a crucial maintenance task to ensure optimal performance and prevent potential malfunctions. The waste toner box collects excess toner during the printing process, and when it becomes full, it can lead to print quality issues or even cause the printer to stop functioning. To replace the waste toner box, start by opening the front cover of the printer and locating the waste toner box, typically found near the toner cartridges. Carefully remove the full box by pulling it straight out, avoiding spills, and insert the new waste toner box securely into its designated slot. Ensure the printer is powered on to reset the waste toner counter, and dispose of the old box according to environmental guidelines. Regularly monitoring and replacing the waste toner box will help maintain the longevity and efficiency of your Konica Minolta C2503 printer.
| Characteristics | Values |
|---|---|
| Printer Model | Konica Minolta Bizhub C250i / C2503 |
| Waste Toner Bottle Location | Front of the printer, behind the front cover, below the toner cartridges. |
| Tools Required | None (no special tools needed). |
| Replacement Frequency | Replace when the waste toner bottle is full (indicated by error message). |
| Error Code for Full Bottle | V2-2xx (specific code varies by model). |
| Steps to Replace | 1. Open the front cover. 2. Pull out the waste toner bottle. 3. Insert the new bottle until it clicks into place. 4. Close the front cover. |
| Part Number for Waste Toner Bottle | Konica Minolta Part Number: 4062-412 (or equivalent). |
| Safety Precautions | Avoid touching the toner; dispose of the old bottle according to local regulations. |
| Post-Replacement Action | Reset the waste toner counter (if required, follow printer menu prompts). |
| Compatibility | Specific to Konica Minolta Bizhub C250i / C2503 series. |
| Estimated Time to Replace | 2-5 minutes. |
Explore related products
What You'll Learn
- Gather Supplies: Gloves, waste toner bottle, replacement bottle, soft cloth, and a flat workspace
- Access Toner Area: Open front cover, locate waste toner bottle, and release locking mechanism
- Remove Old Bottle: Carefully pull out the full waste toner bottle to avoid spills
- Install New Bottle: Insert replacement bottle securely, ensuring it clicks into place
- Clean and Close: Wipe any residue, close the cover, and confirm proper alignment
Gather Supplies: Gloves, waste toner bottle, replacement bottle, soft cloth, and a flat workspace
Before diving into the process of changing the waste toner on your C2503, it’s essential to gather the right supplies. This step ensures efficiency, safety, and cleanliness throughout the task. Start by collecting gloves to protect your hands from toner residue, which can be messy and difficult to remove. Latex or nitrile gloves are ideal, as they provide a snug fit and good dexterity. Next, locate the waste toner bottle currently installed in your printer. This bottle will need to be replaced, so having it on hand allows you to inspect its condition and prepare for the swap. Alongside this, secure a replacement waste toner bottle specifically designed for the C2503 model—using incompatible parts can damage the printer. A soft, lint-free cloth is also crucial for wiping away any spills or dust during the process. Finally, designate a flat, stable workspace to lay out your tools and components, minimizing the risk of accidental spills or misplacement.
The choice of gloves isn’t arbitrary; it’s a practical safeguard. Toner particles are fine and can irritate the skin or stain clothing. Opt for disposable gloves to avoid cross-contamination, especially if you’re working in a shared environment. Similarly, the soft cloth serves a dual purpose: it cleans delicate printer components without scratching them and absorbs any toner leaks efficiently. When selecting a workspace, ensure it’s well-lit and free from clutter. A flat surface like a desk or table provides stability, reducing the chance of knocking over the waste toner bottle, which could lead to a messy and time-consuming cleanup.
Consider the replacement waste toner bottle as the star of this operation. It’s not just a container; it’s a critical component that ensures your printer operates smoothly. Always verify compatibility with the C2503 model, as using the wrong bottle can cause malfunctions or leaks. Genuine manufacturer parts are recommended, though high-quality third-party options can suffice if budget is a concern. Inspect the bottle for any cracks or defects before installation—a faulty bottle can render the entire process futile.
Efficiency in this task hinges on organization. Lay out all supplies within arm’s reach before beginning. Position the waste toner bottle and replacement bottle side by side for easy access during the swap. Keep the cloth nearby to address any spills promptly. This setup not only streamlines the process but also minimizes the risk of errors, such as dropping components or misplacing tools.
In conclusion, gathering the right supplies is more than a preliminary step—it’s the foundation of a successful waste toner replacement. Gloves protect, the correct bottles ensure functionality, the cloth maintains cleanliness, and a flat workspace fosters precision. By prioritizing these elements, you transform a potentially cumbersome task into a straightforward, manageable procedure.
Accounting for Waste: Properly Reporting Losses on Your Income Statement
You may want to see also
Explore related products
Access Toner Area: Open front cover, locate waste toner bottle, and release locking mechanism
The Konica Minolta C2503, like many laser printers, requires periodic waste toner bottle replacement to maintain optimal performance. Accessing the toner area is the critical first step in this process, and it begins with opening the front cover. This cover is designed for easy access, typically secured with a simple latch or button mechanism. Once released, the cover swings open to reveal the internal components, including the waste toner bottle. This initial step is straightforward but crucial, as it sets the stage for the entire replacement process.
Locating the waste toner bottle is the next essential task. In the C2503, the bottle is usually positioned near the center or side of the printer, depending on the model configuration. It is often labeled or color-coded for easy identification, though consulting the user manual can provide precise guidance. The bottle’s design is purposeful, with a shape and size optimized for efficient waste collection. Familiarizing yourself with its location beforehand can save time and reduce the risk of accidentally disturbing other components during the replacement process.
Releasing the locking mechanism is a step that demands precision and care. The waste toner bottle is typically secured to prevent accidental spills or dislodging during operation. The locking mechanism may involve a tab, lever, or sliding latch, depending on the printer’s design. Applying gentle but firm pressure in the correct direction is key to disengaging the lock without damaging the mechanism. Overforcing or using improper tools can lead to breakage, so patience and attention to detail are paramount.
Practical tips can streamline this process. For instance, ensure the printer is powered off and cooled down before beginning to avoid electrical hazards or burns from hot components. Keep a clean workspace and have a replacement bottle ready to minimize downtime. If the locking mechanism is stiff or difficult to operate, a light application of lubricant (such as silicone-based spray) can aid in its release, though this should be done sparingly to avoid contamination.
In summary, accessing the toner area in the Konica Minolta C2503 involves a sequence of deliberate actions: opening the front cover, locating the waste toner bottle, and releasing its locking mechanism. Each step requires attention to detail and adherence to best practices to ensure a smooth and safe replacement process. By following these guidelines, users can efficiently maintain their printer’s performance and prolong its operational lifespan.
Compostable Dog Waste Bags: Eco-Friendly Solution or Greenwashing?
You may want to see also
Explore related products
Remove Old Bottle: Carefully pull out the full waste toner bottle to avoid spills
The waste toner bottle in your Konica Minolta C2503 is a critical component that collects excess toner during printing, ensuring clean and efficient operation. When it’s full, replacing it promptly prevents overflow, which can damage internal components and degrade print quality. The process begins with removing the old bottle, a step that demands precision and care to avoid spills that could stain surfaces or contaminate the machine.
To start, locate the waste toner bottle, typically found in the front or side panel of the printer, depending on the model configuration. Open the access panel gently, ensuring no forced movements that might disrupt nearby components. The bottle is usually secured in a cradle or slot, held in place by a simple latch or clip. Before proceeding, inspect the area around the bottle for any signs of leakage or residue, as this could indicate a previous issue that needs addressing.
Grasp the bottle firmly but gently, using both hands if necessary to maintain control. Pull it straight out, avoiding any twisting or tilling motions that could dislodge toner particles and cause spills. The bottle’s design often includes a sealed cap or nozzle, but residual toner may still cling to the exterior. To minimize mess, place a tray or towel beneath the bottle as you remove it, catching any stray particles.
Once removed, handle the bottle with care, especially if it’s full. Waste toner can be messy and difficult to clean if spilled. Seal the bottle in a plastic bag if possible, or dispose of it according to local regulations for printer consumables. Some regions require specialized disposal methods for toner waste due to environmental concerns.
In summary, removing the old waste toner bottle from your C2503 is a straightforward but delicate task. By pulling it out carefully and preparing for potential spills, you ensure a clean transition to the new bottle, maintaining the printer’s performance and longevity. This step, though simple, is foundational to the entire replacement process and should not be rushed.
Creative DIY Paperweight: Upcycling Waste Materials for a Unique Desk Accessory
You may want to see also
Explore related products
Install New Bottle: Insert replacement bottle securely, ensuring it clicks into place
The waste toner bottle in your Konica Minolta C2503 is a critical component that collects excess toner during printing, preventing contamination and ensuring optimal performance. When it’s full, replacing it promptly is essential to avoid errors or damage. The process begins with installing a new bottle, a step that demands precision to ensure functionality.
Step-by-Step Installation:
- Prepare the Replacement Bottle: Remove the new waste toner bottle from its packaging. Inspect it for any visible defects or damage. Ensure the cap is securely in place to prevent spills during handling.
- Align and Insert: Locate the waste toner bottle compartment, typically found in the front or side of the printer. Align the replacement bottle with the slot, ensuring the tabs or guides match the grooves in the compartment.
- Securely Insert: Push the bottle firmly into the compartment until you hear a distinct click. This sound confirms the bottle is locked in place and ready for use. Avoid forcing it if resistance is felt; recheck alignment and try again.
Cautions and Troubleshooting:
Improper installation can lead to leaks or sensor errors. If the bottle doesn’t click into place, remove it and verify the compartment is free of debris or obstructions. Never reuse an old bottle, as it may not fit correctly or function properly. If the printer displays an error after installation, power cycle the device to reset the sensor.
Practical Tips:
Keep a spare waste toner bottle on hand to minimize downtime. Store replacements in a cool, dry place to maintain their integrity. After installation, run a test print to ensure the printer recognizes the new bottle and operates without issues.
By following these steps and precautions, you’ll ensure a seamless transition to a new waste toner bottle, keeping your C2503 running smoothly and efficiently.
Maximize Efficiency: Strategies to Eliminate Wasted Data in BitTorrent
You may want to see also
Explore related products
Clean and Close: Wipe any residue, close the cover, and confirm proper alignment
After removing the waste toner bottle from your Konica Minolta C2503, you’ll notice residual toner dust clinging to the surrounding area. This residue, if left unchecked, can contaminate the new bottle or interfere with the sealing mechanism, leading to leaks or poor printer performance. Use a lint-free cloth or a soft brush to gently wipe away any loose toner particles. Avoid compressed air, as it can disperse toner into the air, creating a health hazard and settling on sensitive printer components.
Closing the cover after installing the new waste toner bottle is more than a final step—it’s a critical alignment check. The cover must latch securely to ensure the bottle is seated correctly and the internal sensors recognize its presence. Misalignment can trigger error codes or prevent the printer from operating. Listen for an audible click when closing the cover, and inspect the edges to confirm there are no gaps. If the cover feels loose or uneven, reopen it and recheck the bottle’s positioning before attempting to close it again.
Proper alignment isn’t just about functionality; it’s about longevity. A misaligned cover can cause unnecessary strain on the printer’s internal mechanisms, leading to premature wear. For instance, if the bottle isn’t seated correctly, the auger system may struggle to transfer waste toner, increasing motor load and reducing efficiency. By taking a moment to confirm alignment, you’re not only ensuring immediate functionality but also safeguarding your printer’s lifespan.
In practice, treat this step as a two-part process: clean, then close and verify. Start by wiping the area around the bottle compartment with a dry cloth, paying attention to corners and crevices where toner might accumulate. Once the new bottle is in place, close the cover firmly but without excessive force. Finally, perform a quick visual and tactile check—run your fingers along the cover’s edges to ensure it’s flush with the printer’s body. This meticulous approach guarantees that your C2503 remains clean, aligned, and ready for uninterrupted operation.
Brain's Waste Disposal: How Neurons Eliminate Toxins and Stay Healthy
You may want to see also
Frequently asked questions
You will receive a "Waste Toner Full" or "Replace Waste Toner Box" message on the printer display, indicating it’s time to replace the waste toner container.
The waste toner container is located inside the front door of the printer, typically on the right side, below the toner cartridges.
Open the front door, locate the waste toner container, and gently pull it straight out. Be cautious not to spill any waste toner during removal.
Insert the new waste toner container into the same slot, ensuring it clicks into place securely. Close the front door and confirm the error message is cleared.
No, the waste toner container is not designed to be reused or emptied. Always replace it with a new, genuine Konica Minolta waste toner container.
