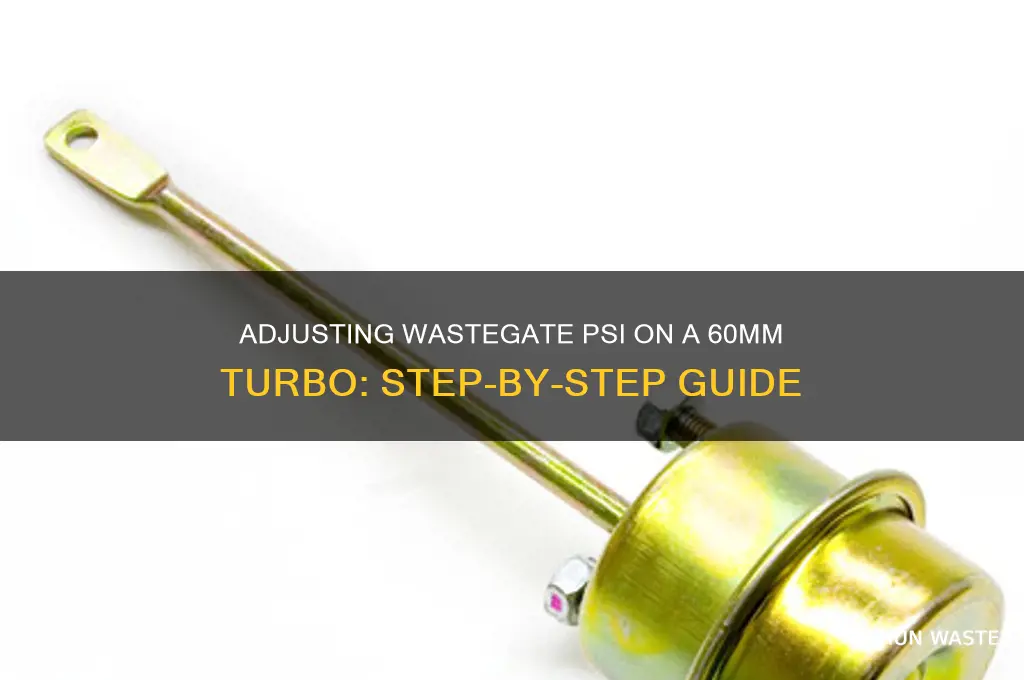

Changing the waste gate psi on a 60mm turbocharger is a crucial adjustment for optimizing engine performance and boost pressure. The waste gate regulates exhaust flow to control turbo boost, and modifying its psi setting allows for fine-tuning the turbo's output to meet specific power goals or driving conditions. This process typically involves adjusting the waste gate actuator's spring preload or using an external controller, depending on the setup. Properly adjusting the waste gate psi ensures efficient turbo operation, prevents overboost, and maximizes power delivery while maintaining reliability. Whether for a street car or a race build, understanding this adjustment is essential for achieving the desired balance between performance and safety.
| Characteristics | Values |
|---|---|
| Wastegate Type | 60mm external wastegate (common in turbocharging systems) |
| PSI Adjustment Range | Typically 7-21 PSI (varies by model; check manufacturer specifications) |
| Tools Required | Wrenches, screwdrivers, torque wrench, pressure gauge |
| Adjustment Method | Turn the actuator rod clockwise to increase PSI, counterclockwise to decrease |
| Actuator Rod Location | Connected to the wastegate arm |
| Pressure Testing | Use a boost leak tester or pressure gauge to verify PSI changes |
| Recommended PSI Setting | Depends on engine setup; consult tuning guide or manufacturer |
| Safety Precautions | Ensure engine is off and cooled before adjustment |
| Re-calibration Needed | Yes, after adjustment, recalibrate ECU for accurate boost control |
| Common Brands | Turbosmart, Tial, BorgWarner, etc. |
| Adjustment Frequency | Adjust as needed during tuning or after component changes |
| Potential Risks | Over-boosting can damage the engine; under-boosting reduces performance |
| Professional Assistance | Recommended for beginners or complex setups |
Explore related products
What You'll Learn
Tools Required for Waste Gate PSI Adjustment
Adjusting the waste gate PSI on a 60mm turbo requires precision and the right tools to ensure optimal performance and safety. The process involves fine-tuning the actuator’s spring preload or external pressure, which directly affects boost levels. Without the proper instruments, you risk inaccurate adjustments or damage to components. Here’s a breakdown of the essential tools you’ll need for this task.
First and foremost, a boost pressure gauge is indispensable. This tool allows you to monitor the actual PSI being produced by the turbocharger in real-time. Accurate readings are critical, as even minor deviations can impact engine performance. Opt for a digital gauge with a range that exceeds your target PSI for clarity and precision. Pair this with a T-fitting to tap into the intake system and measure pressure directly.
Next, you’ll need a wrench set or socket set to access and adjust the waste gate actuator. The size of the fasteners varies by turbo model, so consult your turbo’s specifications or disassemble the actuator beforehand to identify the correct tool. A torque wrench is also highly recommended to tighten components to factory specifications, preventing over-tightening that could warp or damage parts.
For waste gates with adjustable actuators, a spring compressor tool may be necessary to modify the preload on the internal spring. This tool ensures even pressure distribution, reducing the risk of spring deformation. If your setup uses an external waste gate controller, a pressure regulator and hose clamps are essential for fine-tuning the reference pressure delivered to the actuator.
Lastly, don’t overlook safety and convenience tools. Nitrile gloves protect your hands from grease and sharp edges, while a flashlight or headlamp illuminates tight spaces under the hood. A parts tray keeps fasteners organized, preventing loss during disassembly. These tools, while not directly involved in the adjustment, streamline the process and minimize frustration.
In summary, the tools required for waste gate PSI adjustment on a 60mm turbo are a blend of precision instruments and practical aids. A boost pressure gauge, wrench set, torque wrench, spring compressor, and safety gear form the core toolkit. Investing in high-quality tools not only ensures accurate adjustments but also prolongs the life of your turbo system. Approach the task methodically, and you’ll achieve the desired boost levels efficiently and safely.
Step-by-Step Guide to Plumbing a Shower Tray Waste Efficiently
You may want to see also
Explore related products
Locating the Waste Gate Actuator
The waste gate actuator is a critical component in managing turbocharger boost pressure, and its precise location is the first step in adjusting waste gate psi on a 60mm setup. Typically, the actuator is mounted directly on or near the waste gate itself, connected by a rod or lever that controls the valve’s position. On most turbo systems, it’s positioned on the turbine housing or adjacent to the exhaust manifold, often secured with a bracket or clamp. Identifying it requires familiarity with your specific turbo kit’s layout, as designs vary across manufacturers. For instance, in a Tial 60mm external waste gate setup, the actuator is usually a small cylindrical unit with a spring and diaphragm, clearly visible once the engine bay is inspected.
Analyzing the actuator’s design reveals its role in pressure regulation. It operates based on a spring preload, which determines the psi at which the waste gate opens to bypass exhaust gases. To locate it effectively, start by tracing the waste gate’s arm or linkage back to its pivot point. This often leads directly to the actuator. If the actuator is hidden or difficult to access, consult the turbo kit’s manual or online diagrams specific to your model. For example, in a Garrett GT3582R setup, the actuator is typically mounted on the waste gate body, with a small adjustment screw for fine-tuning. Understanding this layout ensures you don’t mistake other components, like the turbo’s compressor housing or intercooler piping, for the actuator.
Once located, the actuator’s accessibility determines the ease of adjustment. In some setups, it’s exposed and requires only basic hand tools to modify. In others, surrounding components like heat shields or intake piping may need temporary removal. A practical tip is to use a flashlight and mirror to inspect tight spaces, especially in compact engine bays. For instance, on a Subaru WRX with a 60mm waste gate, the actuator is often tucked behind the turbo, requiring the removal of a heat blanket for clear access. Always ensure the engine is cool before beginning work to avoid burns or component damage.
Comparing different actuator designs highlights the importance of precision in location. Internal waste gate systems integrate the actuator directly into the turbo housing, while external setups often feature a standalone unit. For a 60mm external waste gate, the actuator’s position relative to the valve is crucial for accurate psi adjustments. Misidentifying a similar-looking component, like a boost control solenoid, can lead to incorrect modifications. To avoid this, cross-reference visual cues with manufacturer specifications. For example, a Turbosmart HyperGate60 actuator has a distinct spring adjuster and mounting bracket, differentiating it from other turbo components.
In conclusion, locating the waste gate actuator is a blend of visual inspection and technical understanding. Start by tracing the waste gate’s mechanical linkage, consult diagrams for your specific setup, and ensure clear access for adjustments. Whether dealing with an internal or external system, precision in identification saves time and prevents errors. With the actuator located, you’re ready to proceed with psi adjustments, armed with the knowledge to fine-tune your turbo’s performance effectively.
Mastering the Shining Wastes: Strategies to Override the Tallneck
You may want to see also
Explore related products
Adjusting the Spring Tension
To adjust the spring tension, start by locating the waste gate’s actuator arm and the locking collar securing the spring. Loosen the collar with a wrench, but do not remove it entirely. Rotate the collar clockwise to increase tension (higher PSI) or counterclockwise to decrease it (lower PSI). Each full turn typically changes the PSI by approximately 2-3 pounds, depending on the spring rate. For example, a 1.5-turn adjustment on a medium-rate spring might increase PSI from 14 to 17. Use a boost gauge to monitor changes in real-time.
Precision is paramount when adjusting spring tension. Small changes have a significant impact, so incremental adjustments are recommended. After each modification, test the vehicle under load to observe how the turbo responds. If the boost spikes unexpectedly, back off the tension slightly. Conversely, if the turbo lags, increase tension gradually. Always ensure the locking collar is tightened securely after adjustments to prevent slippage during operation.
Comparing spring tension adjustments to other waste gate tuning methods highlights its simplicity and cost-effectiveness. Unlike electronic controllers or external actuators, spring adjustments require no additional components or wiring. However, this method is less flexible for on-the-fly changes, making it best suited for static tuning scenarios. For dynamic adjustments, consider pairing spring modifications with an external waste gate controller for finer control.
In practice, adjusting spring tension is a trial-and-error process that demands patience. Begin with a baseline setting recommended by the manufacturer, then fine-tune based on performance goals. Keep a log of adjustments and their outcomes to track progress. Over time, this method allows for a tailored boost curve that maximizes power while safeguarding the turbocharger from overpressure. Mastery of spring tension adjustments is a cornerstone of effective waste gate tuning.
Redeem Your Youth: Timeless Bible Verses for Purposeful Living
You may want to see also
Explore related products
Testing and Verifying PSI Changes
After adjusting your 60mm wastegate's PSI setting, testing and verification are critical to ensure the changes align with your performance goals and engine safety. Begin by using a boost gauge to monitor the actual boost pressure under load. Compare the readings to your target PSI, noting any discrepancies. If the boost is lower than expected, check for leaks in the intercooler piping or wastegate actuator. Conversely, if the boost exceeds your target, slightly increase the spring preload or adjust the actuator rod length to reduce pressure.
A systematic approach to testing involves logging data during multiple driving conditions—idle, part-throttle, and full-throttle. Use a data logger or OBD-II scanner to record boost levels, air-fuel ratios, and engine temperatures. Analyze the logs for consistency and stability. For example, if the boost spikes during gear shifts, the wastegate may be opening too slowly, indicating a need for lighter spring tension or smoother actuator calibration.
For precise verification, perform a dyno test to measure power output and boost curve under controlled conditions. This not only confirms the PSI change but also highlights potential issues like turbo lag or overboost. Dyno results provide a baseline for further adjustments, ensuring the wastegate operates within the engine’s safe limits. If a dyno is unavailable, conduct a wide-open throttle (WOT) pull on a straight, flat road, using a GPS-based performance meter to validate boost levels.
Lastly, consider the long-term effects of PSI changes on engine components. Higher boost pressures increase stress on the turbocharger, pistons, and rod bearings, so monitor oil consumption and listen for abnormal noises. Regularly inspect the wastegate for wear or sticking, as even minor malfunctions can lead to dangerous overboost conditions. By combining real-world testing, data analysis, and component checks, you can confidently verify that your PSI adjustments are both effective and sustainable.
Are You Contributing to Waste? Reflect on Your Role
You may want to see also
Explore related products
Safety Precautions During Adjustment
Adjusting the waste gate psi on a 60mm turbo requires precision, but safety must never be compromised. Before touching any components, ensure the engine is completely cool to prevent burns from hot surfaces. Turbochargers and their surrounding parts retain heat long after the engine is turned off, so allow at least 30 minutes of cooling time. Additionally, wear heat-resistant gloves as a precautionary measure, even if the engine feels cool to the touch.
The waste gate actuator is under spring pressure, which can release unexpectedly during adjustment. To mitigate this risk, use a wrench or tool with a secure grip to hold the actuator rod in place while loosening the adjustment screw. Never attempt to adjust the waste gate with your hands alone, as sudden movement could lead to injury. If working on a vehicle with a pressurized intake or exhaust system, relieve all pressure by disconnecting the battery and allowing the system to depressurize fully before proceeding.
Environmental safety is equally critical. Perform adjustments in a well-ventilated area to avoid inhaling exhaust fumes or chemical vapors. If working indoors, ensure proper airflow by opening doors or using fans. Keep flammable materials, such as rags or solvents, away from the work area, as turbochargers can generate sparks or extreme heat. A fire extinguisher should be readily available as a precaution, especially when dealing with high-performance engines.
Finally, always double-check your work before restarting the engine. Verify that all connections are secure and that the waste gate actuator is properly seated. An improperly adjusted waste gate can lead to overboosting, which may cause catastrophic engine damage or failure. If unsure about any step, consult a professional or refer to detailed manufacturer guidelines. Safety is not just a precaution—it’s a necessity when working on critical engine components like the waste gate.
Upgrade Your Copper Bathtub Drain and Waste: A Step-by-Step Guide
You may want to see also
Frequently asked questions
You will need an adjustable wrench or socket set, a torque wrench, a vacuum pump or pressure gauge, and possibly a screwdriver or Allen key, depending on your waste gate design.
Locate the waste gate actuator arm and adjust the rod length by turning the locking nut and rod. Shortening the rod increases psi, while lengthening it decreases psi. Use a pressure gauge to monitor the boost and adjust until the desired psi is achieved.
The ideal psi range depends on your engine setup, but typically, a 60mm turbo operates between 7-15 psi. Always consult your turbo or engine manufacturer’s guidelines for specific recommendations.
