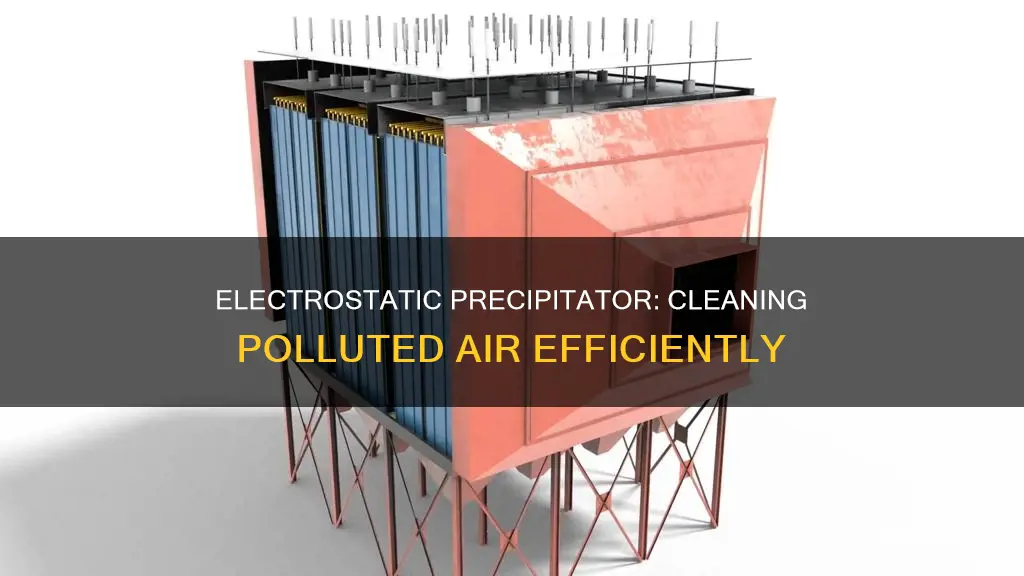

Electrostatic Precipitator: Cleaning Polluted Air Efficiently

Electrostatic precipitators are devices that use electrostatic force to remove impurities from the air, such as industrial fumes, smoke, dust, ash, soot, oil, grease, and other harmful pollutants. They are widely used in industrial settings, such as power plants and factories, to clean the air emitted from chimneys and flues. The basic principle behind electrostatic precipitators is that they charge particles in the air stream either positively or negatively, which are then attracted to collector plates carrying the opposite charge. While they are highly effective in industrial settings, electrostatic precipitators are not recommended for residential use due to the production of ozone, which can be harmful.

Electrostatic precipitators use electrostatic force to grab and hold dust and other particles

Electrostatic precipitators are devices that use electrostatic force to grab and hold dust and other particles, thereby purifying the air. They are commonly used to remove particles from waste gases at industrial facilities and power-generating stations. The electrostatic precipitator was invented in the early 20th century by Dr. Frederick Cottrell, a chemistry professor at the University of California, Berkeley. He applied for a patent for a device that charged particles and collected them using electrostatic attraction.

Electrostatic precipitators are effective for cleaning industrial fumes and capturing important metals and minerals from flue gases. They are widely used in the metallurgical industry, coal and power plants, and other industrial factories. The technology uses two types of electrodes: a positive electrode, typically in the form of plates, and a negative electrode, usually consisting of mesh wire. The negative electrode is connected to the negative terminal of a DC voltage supply, while the positive electrode is connected to the positive terminal. This setup ionizes the air, creating a negatively charged environment that attracts and holds dust and other particles.

The dirty gas stream passes across high-voltage wires, carrying a large negative DC voltage. The particles are electrically charged as they pass through the electrodes and then migrate through the electrostatic field to a grounded collection electrode. This collection electrode can be a cylindrical pipe or a flat plate. Once the negatively charged dust particles adhere to the positive plates, the excess free electrons are removed, and the particles fall off due to gravity. The precipitator includes hoppers that collect the dust particles from the collecting plates, and clean air is then discharged from the outlet into the atmosphere.

Electrostatic precipitators are highly effective at providing reliable air filtration that removes oil, grease, smoke, and fine particulate matter such as ash, dust, and soot. They can handle large volumes of gas at various temperatures and flow rates, removing either solid particles or liquid droplets. However, they are not recommended for home use due to the production of ozone and nitrogen oxides, which can be harmful to health.

They are highly effective at providing reliable air filtration that removes oil, grease, and smoke

Electrostatic precipitators are highly effective at providing reliable air filtration that removes oil, grease, and smoke. They are commonly used in industrial settings, such as power plants, coal-burning electric generating plants, and factories, to remove impurities from the air and prevent air pollution. These settings often involve the combustion of solids or the use of fossil fuels, which release harmful pollutants into the atmosphere.

The technology behind electrostatic precipitators involves the use of electrostatic force to capture and remove particulate matter from the air. This includes the removal of solid particles, such as ash, dust, soot, and smoke, as well as liquid droplets, such as oil, grease, resin, and tar. The ability to remove both solid and liquid impurities is a significant advantage of electrostatic precipitators.

The process of air filtration in electrostatic precipitators can be broken down into several steps. Firstly, the air is electrically charged by passing it over wires with a high negative DC voltage or through an electrostatic field. This charging process ionizes the particles in the air, giving them a negative charge. The charged particles then migrate towards positively charged collection plates, which can be in the form of wires, metal plates, or pipes, where they adhere due to the opposite charge.

Finally, the excess electrons are removed from the collection plates, causing the particles to fall off due to gravity. In dry electrostatic precipitators, the particles are removed as dry material, while in wet electrostatic precipitators, the collection plates are washed with water or sprayed with liquid to remove the particles. This process ensures that the collection plates remain clean and free of particle buildup.

The use of electrostatic precipitators in industrial settings helps protect workers from inhaling harmful pollutants and improves overall air quality. They are particularly effective at removing fine particles, even those smaller than 1 micron in diameter, which can have serious health impacts if inhaled. By using electrostatic precipitators, industries can better control air pollution and mitigate its negative effects on both human health and the environment.

They are widely used in cleaning gases emitting from the metallurgical industry, coal and power plants

Electrostatic precipitators are widely used in cleaning gases emitting from the metallurgical industry, coal and power plants. They are large industrial emission control units that are designed to trap and remove dust and other particles from exhausted gases.

In coal-fired power plants, electrostatic precipitators are used to remove fly ash particles from flue gases. These fly ash particles are dangerous to humans and have detrimental environmental effects. The electrostatic precipitator is the most efficient device for this purpose, with a 99% efficiency in purifying the contaminated gas.

In the metallurgical industry, electrostatic precipitators are used to capture particulate matter from flue gases. They are also used in primary and secondary smelters, where they are effective in removing fine particulate matter.

Electrostatic precipitators are also used in coal-burning electric generating plants, where they remove particles from the dirty gas stream that passes across high-voltage wires. These wires usually carry a large negative DC voltage, which charges the particles and allows them to be collected on plates.

Overall, electrostatic precipitators are a crucial technology for cleaning gases emitting from various industrial processes, and they play a significant role in reducing air pollution and mitigating environmental and health risks.

Electrostatic precipitators are not recommended for home use due to the production of ozone

Electrostatic precipitators are highly effective at removing impurities from the air, but they are not recommended for home use. This is primarily due to the production of ozone, a harmful gas molecule made from three oxygen atoms.

Electrostatic precipitators use electrostatic forces to grab and hold dust and other particles. The process involves two types of electrodes: a positive electrode, typically in the form of plates, and a negative electrode, consisting of mesh wire. The electrostatic force ionizes the particles in the air, which then adhere to the positively charged plates. The excess electrons are removed from the plates, and the particles fall off due to gravity. The clean air is then discharged from the outlet into the atmosphere.

The production of ozone occurs during the air-charging process. While electrostatic precipitators do not produce as much ozone as an ozone generator, the chemical is still a by-product. Ozone is harmful to the skin, bronchial tubes, and lungs. It aggressively attacks lung tissue, inflaming and damaging the airways. This makes ozone particularly dangerous for people with breathing conditions like asthma.

Electrostatic precipitators are ideal for industrial settings where fine particulate matter, such as ash, dust, soot, and fumes, are produced. They are commonly used in the metallurgical industry, coal and power plants, and manufacturing industries that rely on fossil fuels. These precipitators are highly effective at reducing particle pollution, with some able to remove particles as small as 0.01 microns in diameter.

For home use, it is recommended to use an air purifier that combines a high-efficiency air filter and a strong motor to safely and efficiently clean the indoor air.

They can remove solid or liquid droplets from the air, making them ideal for use in the energy industry

Electrostatic precipitators are highly effective at cleaning industrial fumes, but they are not suitable for residential use due to the risk of ozone production. They are designed to purify air emitted from industrial chimneys and capture particulate matter from flue gases, which are generated by the combustion of solids in industrial processes. These flue gases contain harmful pollutants that pose risks to human health and the environment.

Electrostatic precipitators use electrostatic force to grab and hold dust and other particles. They consist of wires and collection plates, with a high voltage applied between the wires and the collecting plate, electrically charging the air and ionizing it. The electrostatic precipitation process involves two types of electrodes: a positive electrode, typically in the form of plates, and a negatively charged electrode, usually consisting of mesh wire. The negative electrode is connected to the negative terminal of a DC voltage supply, while the positive electrode is connected to the positive terminal. The spacing between the voltage supply and the electrodes is adjusted to maintain a high voltage gradient, creating a negatively charged environment.

Electrostatic precipitators can remove solid or liquid droplets from the air, making them ideal for use in the energy industry. They are commonly used to remove particles from waste gases at power-generating stations, capturing important metals and minerals from the flue gases. They are also used to remove ash, dust, and soot from exhaust fumes produced by energy companies.

The ability to handle solid or liquid particles makes electrostatic precipitators versatile in addressing various forms of air pollution. They can efficiently remove oil, grease, and smoke, protecting workers in factories from the harmful effects of these pollutants. Additionally, they can handle large volumes of gas at different temperatures and flow rates, making them well-suited for the energy industry's diverse operational conditions.
