A stop and waste valve, commonly used in plumbing systems, is a versatile device designed to control water flow and drain pipes efficiently. It combines the functionality of a stop valve, which shuts off water supply to a specific fixture or section of piping, with a waste valve that allows for the complete drainage of the system. Typically installed in outdoor faucets or hydrants, this valve features a dual-purpose mechanism: when turned off, it halts water flow, and when fully opened, it enables water to drain out, preventing freezing and potential pipe damage in colder climates. Its simple yet effective design ensures both water conservation and system protection, making it an essential component in residential and commercial plumbing setups.
| Characteristics | Values |
|---|---|
| Function | Controls water flow and drains pipes to prevent freezing or maintenance |
| Components | Valve body, handle, stem, disc, packing, waste outlet |
| Operation | Turn handle clockwise to close (stop flow), counterclockwise to open; waste outlet drains when valve is closed |
| Installation | Typically installed below frost line or in accessible locations for maintenance |
| Material | Brass, bronze, or lead-free alloys for durability and corrosion resistance |
| Pressure Rating | Varies by model, typically rated for residential or commercial water systems |
| Temperature Range | Designed to operate in freezing conditions to prevent pipe bursts |
| Maintenance | Periodic inspection for leaks, corrosion, or wear; replace packing or valve if necessary |
| Applications | Residential plumbing, irrigation systems, commercial buildings, and outdoor hydrants |
| Advantages | Prevents water damage from freezing pipes, allows for system maintenance, and conserves water |
| Disadvantages | Requires proper installation and maintenance to function effectively |

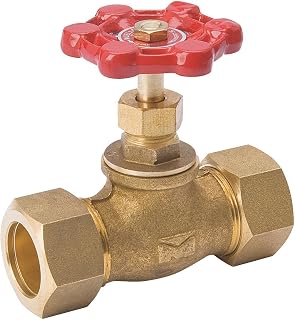

Explore related products
What You'll Learn
Valve Components Overview
A stop and waste valve is a critical component in plumbing systems, designed to shut off water flow and drain the line for maintenance or repairs. Understanding its components is essential for proper operation and troubleshooting. Let’s dissect the key parts that make this valve function effectively.
Analytical Breakdown of Core Components
The primary components of a stop and waste valve include the valve body, stem, handle, packing gland, and drain outlet. The valve body houses the internal mechanism and connects to the water line, typically made of durable materials like brass or bronze to withstand pressure and corrosion. The stem, connected to the handle, controls the opening and closing of the valve. When rotated, it lifts or lowers the internal gate or disc, allowing or blocking water flow. The packing gland seals the stem to prevent leaks, often requiring periodic tightening to maintain integrity. The drain outlet, a unique feature of stop and waste valves, allows water to be expelled from the system when the valve is closed, ensuring the line is completely drained.
Instructive Guide to Component Interaction
To operate the valve, start by turning the handle clockwise to close the main valve, shutting off water flow. Next, open the drain outlet by unscrewing its cap or turning a secondary handle, depending on the design. This allows water to escape, preventing pressure buildup and ensuring the line is clear for maintenance. When reassembling, ensure the packing gland is snug but not overtightened to avoid damaging the stem. Regularly inspect the valve body for cracks or corrosion, and lubricate the stem to ensure smooth operation. For outdoor installations, consider insulating the valve to prevent freezing in colder climates.
Comparative Analysis of Valve Designs
Stop and waste valves come in two primary designs: angle and straight. Angle valves are ideal for tight spaces, directing water flow at a 90-degree angle, while straight valves are used for inline applications. The choice depends on the plumbing layout and accessibility. Additionally, some models feature a check valve to prevent backflow, adding an extra layer of protection. While both designs share the same core components, their orientation and additional features cater to specific installation needs. For instance, angle valves are often used in residential settings, whereas straight valves are common in commercial systems.
Descriptive Maintenance Tips for Longevity
Proper maintenance of valve components extends their lifespan and ensures reliable performance. Start by flushing the valve periodically to remove debris that could obstruct the drain outlet. Apply a silicone-based lubricant to the stem annually to reduce friction and prevent seizing. Inspect the packing gland for wear and replace it if leaks persist despite tightening. For outdoor valves, drain and disconnect the valve during winter to prevent freezing and cracking. Keep the handle clean and functional, as a broken handle can render the valve inoperable. By addressing these components proactively, you minimize the risk of failure and costly repairs.
Persuasive Argument for Quality Components
Investing in high-quality valve components pays dividends in efficiency and safety. Inferior materials or poorly designed parts can lead to leaks, reduced water pressure, or even system failure. For example, a subpar packing gland may degrade quickly, causing persistent leaks that waste water and damage surrounding structures. Similarly, a weak valve body can crack under pressure, leading to catastrophic failures. Opting for reputable brands and materials like lead-free brass ensures compliance with safety standards and long-term reliability. While the initial cost may be higher, the savings in maintenance and repairs make it a wise investment for any plumbing system.
Understanding the Role of Angle of Repose in Mass Wasting Processes
You may want to see also
Explore related products
Stop Function Mechanism Explained
The stop function in a stop and waste valve is a critical component designed to halt water flow immediately, ensuring system integrity during maintenance or emergencies. This mechanism typically involves a gate or ball that descends to seal the pipeline, activated by a handle or lever. Unlike standard valves, the stop function prioritizes rapid closure, often requiring minimal rotational force—usually a 90-degree turn—to engage. This simplicity ensures reliability even in high-pressure systems, making it indispensable in plumbing, HVAC, and industrial applications.
Analyzing its operation reveals a balance between durability and precision. The stop mechanism relies on a threaded stem connected to the gate or ball, which moves vertically to obstruct the flow path. Materials like brass or stainless steel are common due to their corrosion resistance and strength. However, improper installation or overuse can lead to wear, reducing effectiveness. For instance, over-tightening the handle can warp the sealing surface, necessitating periodic inspection. Understanding this interplay between design and maintenance is key to maximizing the valve’s lifespan.
From a practical standpoint, activating the stop function requires awareness of system pressure and temperature. In residential settings, closing the valve too quickly can cause water hammer, a potentially damaging pressure surge. To mitigate this, turn the handle slowly, especially in older systems. For commercial or industrial use, pair the valve with a pressure gauge to monitor conditions before operation. Additionally, ensure the valve is fully closed by verifying zero flow, as partial closure can lead to leaks or system inefficiencies.
Comparing the stop function to other valve types highlights its unique advantages. While gate valves offer similar flow control, they lack the rapid-closure capability of stop and waste valves. Ball valves, though quick-acting, often lack the integrated waste outlet for draining. The stop function’s dual role—stopping flow and enabling drainage—makes it a versatile solution for scenarios like winterizing outdoor lines or servicing water heaters. This combination of speed, precision, and functionality sets it apart in valve technology.
In conclusion, the stop function mechanism is a testament to engineering tailored to specific needs. Its design prioritizes immediate control, while its materials and operation demand mindful usage. Whether in a home or industrial setting, understanding its mechanics and limitations ensures efficient and safe operation. By integrating this knowledge, users can leverage the stop and waste valve’s full potential, safeguarding systems and preventing costly disruptions.
Waste's Hidden Toll: How Trash Shapes Our Daily Lives and Future
You may want to see also
Explore related products
Waste Function Mechanism Explained
The waste function in a stop and waste valve is a critical component designed to drain water from a system efficiently, preventing freeze damage or maintenance-related issues. Unlike a standard shut-off valve, the stop and waste valve incorporates a secondary port that allows water to be completely evacuated from the downstream piping. This mechanism is particularly useful in regions prone to freezing temperatures or in systems requiring periodic servicing. When activated, the valve not only stops the water flow but also opens a pathway for residual water to exit, ensuring no water remains trapped in the pipes.
To understand the waste function mechanism, consider its operation in two distinct stages. First, the valve’s primary function is to shut off the water supply, achieved by turning the handle clockwise until it is fully closed. This isolates the downstream system from the main water source. Second, the waste function is engaged by further rotating the handle, typically an additional quarter or half turn, which opens the waste port. This port is often connected to a drain line, allowing water to flow out of the system under gravity. The design ensures that the waste port remains sealed during normal operation, preventing leaks, but opens only when specifically activated.
One practical example of this mechanism is its use in outdoor plumbing systems, such as sprinkler lines or outdoor faucets. In colder climates, water left in these lines can freeze, expand, and cause pipes to burst. By using a stop and waste valve, homeowners or maintenance crews can drain the system completely before winter, eliminating the risk of freeze damage. The process is straightforward: close the valve to stop water flow, then open the waste port to drain the remaining water. For optimal results, ensure the drain line is positioned at a lower elevation than the valve to facilitate complete drainage.
While the waste function is highly effective, improper use can lead to issues. For instance, failing to fully close the valve before activating the waste function can result in water leakage at the shut-off point. Additionally, if the drain line is clogged or improperly installed, water may not evacuate fully, defeating the purpose of the mechanism. To avoid these pitfalls, inspect the valve and drain line regularly for debris or damage. When installing a stop and waste valve, follow manufacturer guidelines for positioning and ensure the drain line is securely connected and free of obstructions.
In summary, the waste function mechanism in a stop and waste valve is a simple yet ingenious solution for draining water systems efficiently. By combining shut-off and drainage capabilities in a single unit, it offers a practical way to protect plumbing systems from freeze damage or prepare them for maintenance. Understanding its two-stage operation—shutting off the water supply and opening the waste port—is key to using it effectively. With proper installation and maintenance, this valve ensures that water is completely evacuated, providing peace of mind in both residential and commercial applications.
Are Compostable Dog Waste Bags FDA-Approved? What Pet Owners Need to Know
You may want to see also
Explore related products
Installation and Placement Tips
Proper placement of a stop and waste valve is critical for both functionality and longevity. Position the valve below the frost line in colder climates to prevent freezing and potential bursting during winter months. In regions where freezing isn’t a concern, install it at a depth of at least 6 to 12 inches below ground level to protect it from accidental damage. Ensure the valve is easily accessible for maintenance, typically within 18 to 24 inches of the water meter or main shut-off, but always check local plumbing codes for specific requirements.
When installing, align the valve vertically to allow water to drain completely when the system is shut off. A tilted or horizontal placement can trap water, defeating the valve’s purpose and increasing the risk of corrosion or blockages. Use a level during installation to ensure precision. If the valve must be installed in a tight space, consider using a compact or angled model designed for such applications. Always secure the valve with appropriate fittings and ensure all connections are tightly sealed to prevent leaks.
Material selection plays a significant role in installation success. Choose a valve made of durable materials like brass or stainless steel, which resist corrosion and withstand environmental stresses. Avoid plastic valves in high-pressure systems or areas with extreme temperature fluctuations, as they may degrade over time. For underground installations, wrap the valve and surrounding pipes with insulation to add an extra layer of protection against temperature changes and moisture.
Finally, test the valve immediately after installation to ensure it functions correctly. Turn off the main water supply and open the stop and waste valve to drain the system. Check for leaks at all connections and verify that water drains fully. If the valve fails to operate smoothly or leaks are detected, recheck the installation and tighten fittings as needed. Regularly inspect the valve annually, especially before winter, to maintain its reliability and extend its lifespan.
Organic Waste's Impact on Water Quality and Ecosystems Explained
You may want to see also
Explore related products
Maintenance and Troubleshooting Guide
Regular maintenance of a stop and waste valve is crucial to ensure its longevity and reliable operation, especially in regions with freezing temperatures. Start by inspecting the valve annually, preferably before winter sets in. Begin by shutting off the water supply and draining the system to prevent residual water from causing damage. Use a wrench to gently turn the valve handle back and forth to check for stiffness or resistance, which could indicate mineral buildup or corrosion. Apply a silicone-based lubricant to the threads and moving parts, avoiding petroleum-based products that can degrade rubber seals. For valves with a vacuum breaker, ensure the cap is secure and free from debris to maintain proper functionality.
Troubleshooting a stop and waste valve requires a systematic approach to identify and resolve common issues. If the valve fails to shut off completely, inspect the washer or seal for wear and replace it if necessary—a worn washer is a frequent culprit. Leaks around the handle often indicate a damaged O-ring or gasket; disassemble the valve, clean the components, and install new seals. For valves that are difficult to turn, soak the threads in a penetrating oil for at least 30 minutes before attempting to loosen them. If the valve body is cracked or severely corroded, replacement is the only safe option, as temporary fixes can lead to catastrophic failures.
Comparing maintenance practices for indoor and outdoor stop and waste valves reveals distinct priorities. Indoor valves benefit from periodic flushing to remove sediment, which can be done by opening the valve slightly and allowing water to run for 30 seconds. Outdoor valves, particularly those in frost-prone areas, require insulation with foam covers or heat tape to prevent freezing. For older systems, consider upgrading to a frost-free sillcock, which extends the water supply deeper into the building to reduce freeze risks. Both types should be tested quarterly by draining the line to ensure the valve operates smoothly and seals tightly.
Persuasive arguments for proactive maintenance center on cost savings and safety. Neglecting a stop and waste valve can lead to burst pipes, water damage, and mold growth, with repair costs often exceeding $5,000. A $10 washer replacement and an hour of preventive care can avert these expenses. Additionally, a malfunctioning valve poses a safety hazard, particularly in emergencies where quick water shutoff is critical. Homeowners and property managers should view maintenance as an investment, not an expense, and prioritize it in their seasonal checklists.
Descriptive insights into common troubleshooting scenarios highlight the importance of visual and tactile cues. A hissing sound when the valve is closed suggests a leak, often visible as moisture around the handle or spout. Rust or white mineral deposits on the valve body indicate corrosion or hard water, respectively, both of which accelerate wear. If the handle feels loose, the stem threads may be stripped, requiring valve replacement. By familiarizing oneself with these signs, even novice users can diagnose issues early and take appropriate action, ensuring the valve remains a dependable component of the plumbing system.
Does Monster Energy Contain Human Waste? Unraveling the Shocking Myth
You may want to see also
Frequently asked questions
A stop and waste valve is a plumbing fixture that combines a stop valve and a drain valve into one unit. Its primary function is to control the flow of water to a specific fixture (like a sink or toilet) and to drain the water supply line for maintenance or repairs, preventing water wastage and damage.
A stop and waste valve works by using two separate mechanisms: the stop valve (usually a quarter-turn ball valve) controls the water flow to the fixture, while the waste valve (a threaded outlet) allows water to be drained from the supply line when the stop valve is closed. This dual functionality ensures both control and drainage in one device.
A stop and waste valve is typically used in commercial or institutional settings, such as schools, hospitals, and apartment buildings, where easy access to shut off and drain water lines is essential. It is commonly installed near fixtures like sinks, toilets, or drinking fountains to provide quick maintenance access without disrupting the entire water supply system.
